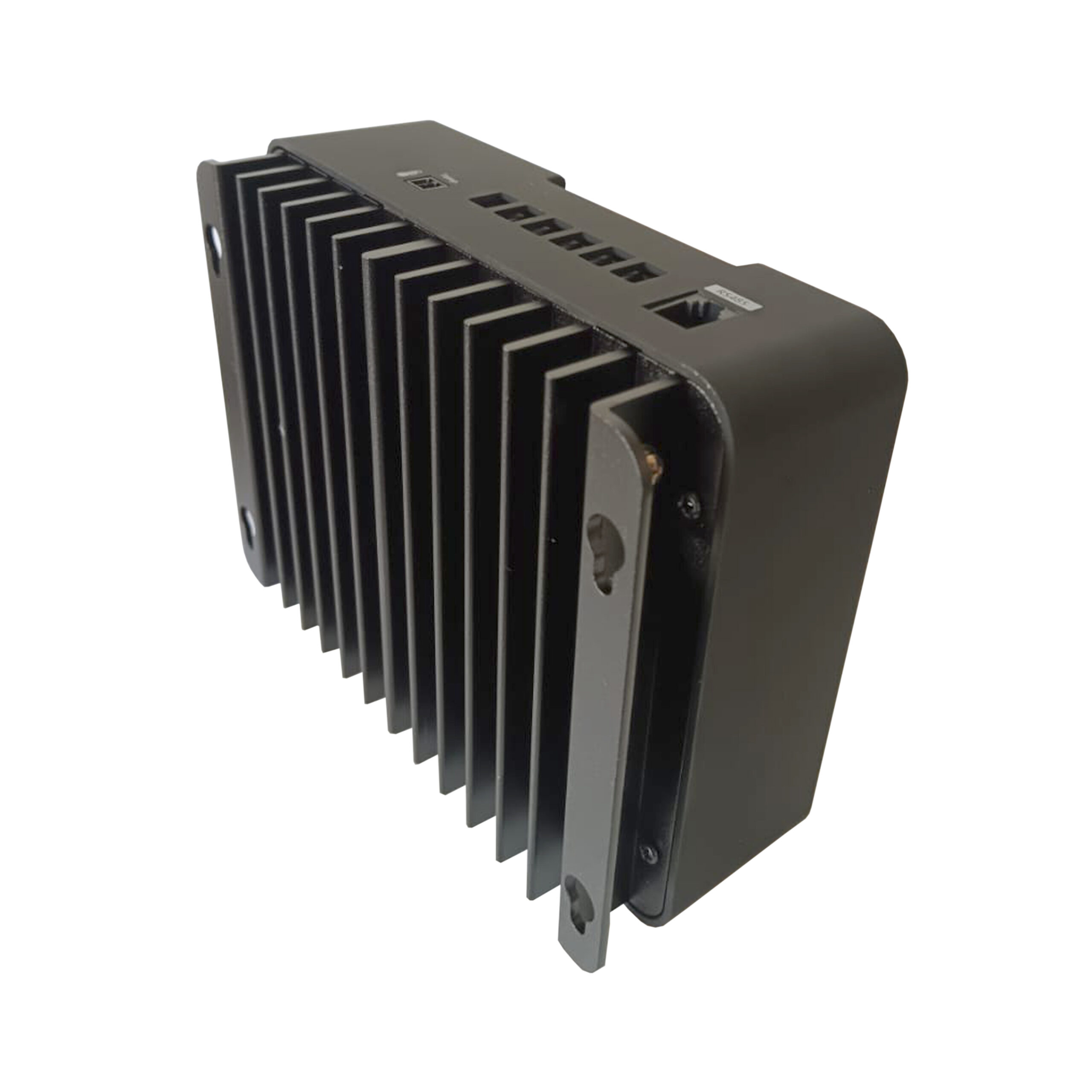

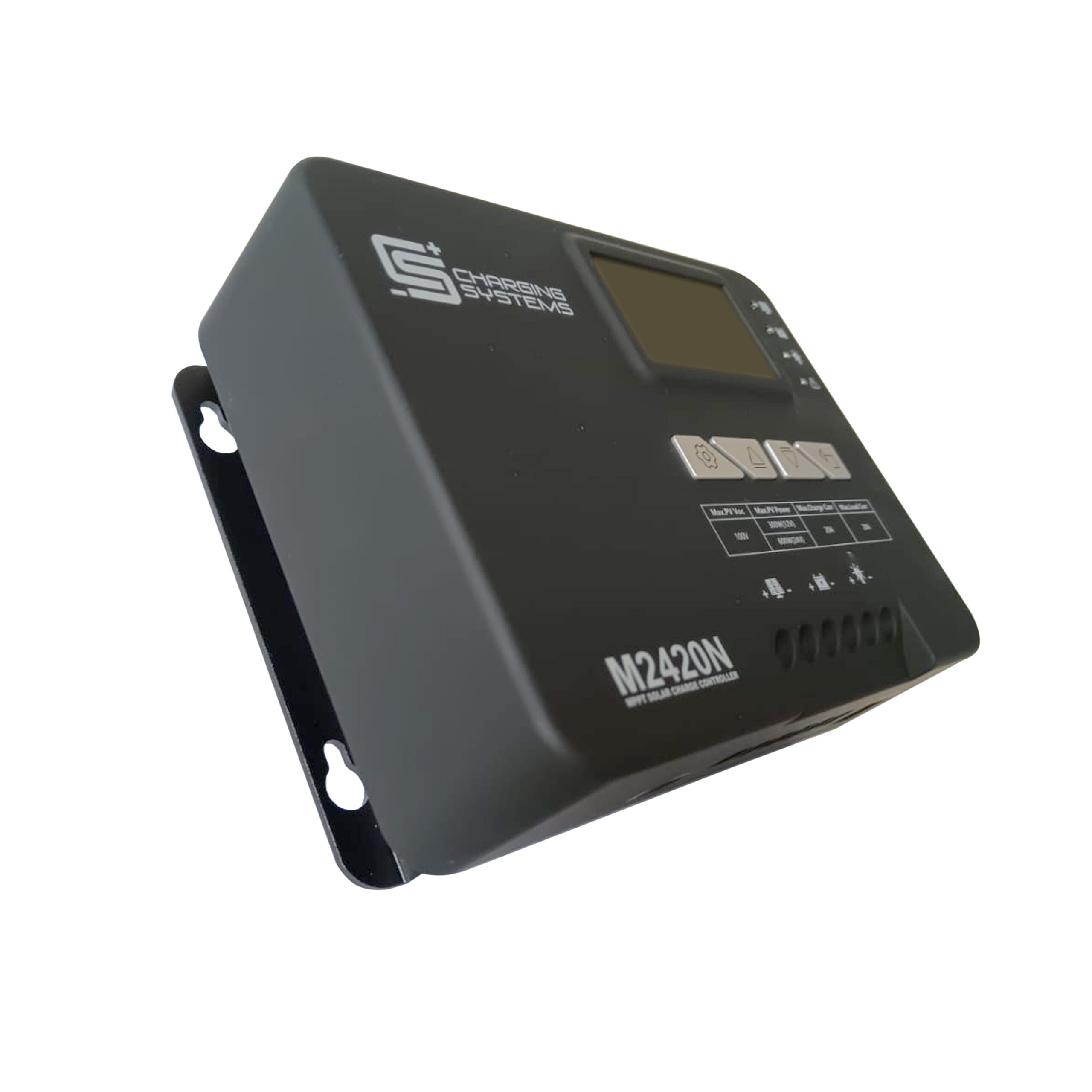

CS 20A 12V/24V MPPT Solar Charge Controller

R2,080.87(Excl.Vat)

In Stock   |   Ships in one business day   |   FREE DELIVERY

• 20A load output current
• IP32
• -35ºC ~ +45ºC Operating Temperature
• Negative Grounded

Ideal for small and medium sized off-grid solar power systems.

5 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼




Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

Advanced MPPT (Maximum Power Point Tracking) scanning technology & effective temperature management, ensuring efficient, reliable and lasting solar DC charge with multiple protections. Easy to use, external Bluetooth communication for APP monitoring and operation using your mobile phone. Our M2420N supports multiple modes of DC load output control.

Download the ChargePro 2.0 APP on any mobile device from Google Play or iOS App Store.

20A MPPT SOLAR CHARGE CONTROLLER FEATURES

  • BUILT-IN BUFFER
    allows max 25% exceeding rated power input.
  • CHARGING MODES
    Available for most common deep-cycle battery types in the market, including AGM (sealed lead acid batteries), GEL, Flooded, and Lithium.
  • BLUETOOTH
    Allows mobile phone APP operation for monitoring and parameters settings, with connection of external blue tooth communication module (optional accessory, not in the standard package).
  • AUTO RECOGNITION
    12V/24V battery system voltage by M2420N / M2430N / M2440N models; auto recognition of 12V/24V/36V/48V battery system voltage by M4860N model. Lithium battery excluded from this feature.
  • 300 DAYS OF RECORDED DATA
    Supports recording of system running data including power generated and power utilized for up to 300 days, compatible with monitoring App through IOS and Android.
  • BUILT-IN COMMUNICATION
    We have built-in BT communication module in this controller and we provide APP PVChargePro for mobile phone monitoring and operation.You can search“PVChargePro”and download the APP at IOS APP Store and Google Play Store.
  • LOAD CONTROL MODE
    Provides multiple load control mode options for light based, time based and manually adjusted scenarios. Low no-load loss.
  • REVERSE POLARITY
    Industrial grade design with reverse polarity protection for solar panels, battery.

Technical Specs

Battery System Voltage 12V/24V
Max Solar Input Voltage <100Voc
Max Solar Output Voltage 300W/12V;600W/24V
Solar Charge Current 20A
Max Load Output Current 20A
IP Protection IP32
Communication Port RS485+Bluetooth(APP)
Weight 1.21KG
Dimensions 180*140*71.1mm





DOWNLOADS

Specification Sheet
Manual

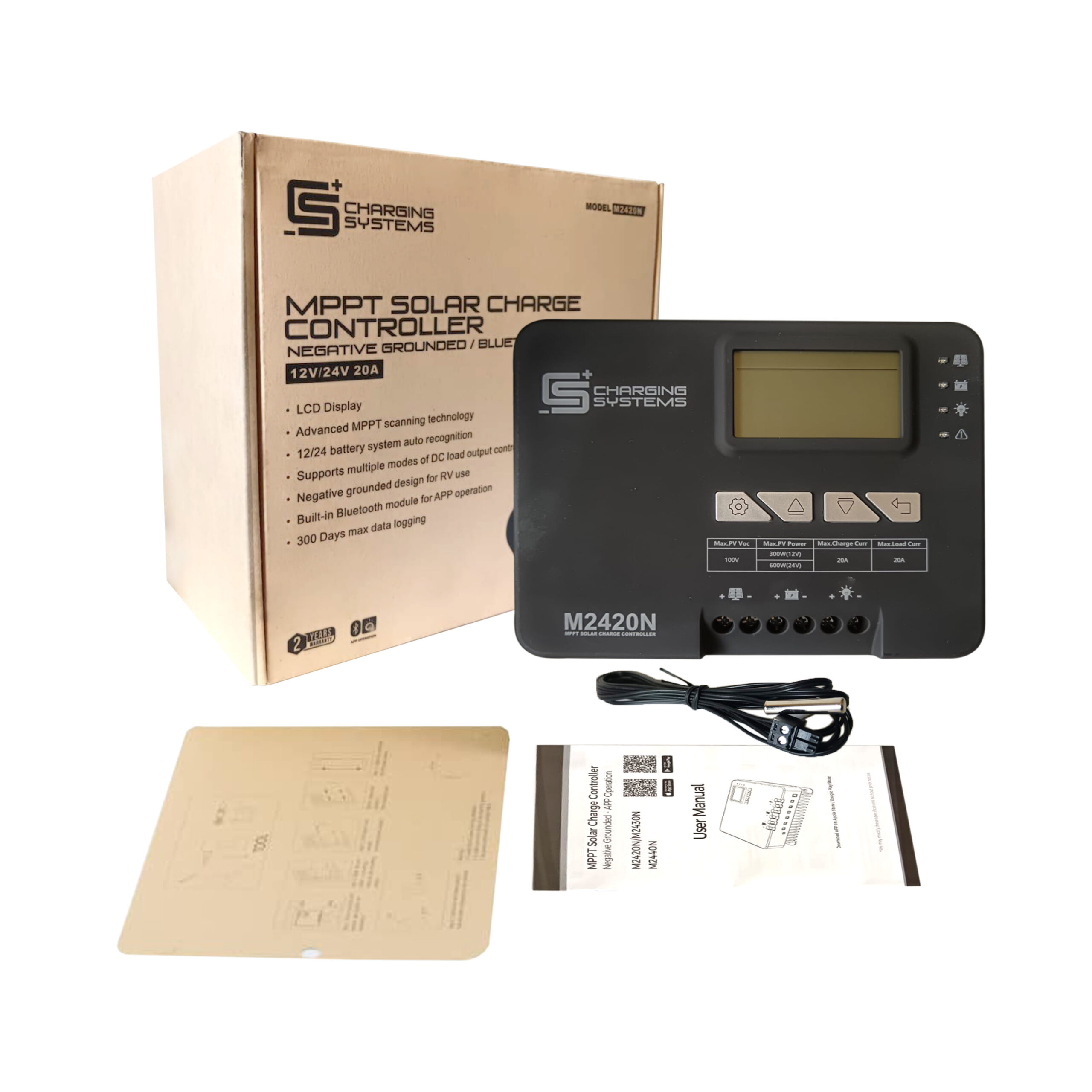

What's in the box

1x 20A MPPT Solar Charge Controller
1x Temperature Sensor
1x Instruction manual
