EPEVER WiFi Adaptor 2.4G
R702.61(Excl.Vat)
In Stock | Ships in one business day
Users can remotely monitor the connected devices and program parameters via the EPEVER server platform, mobile APP.
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |

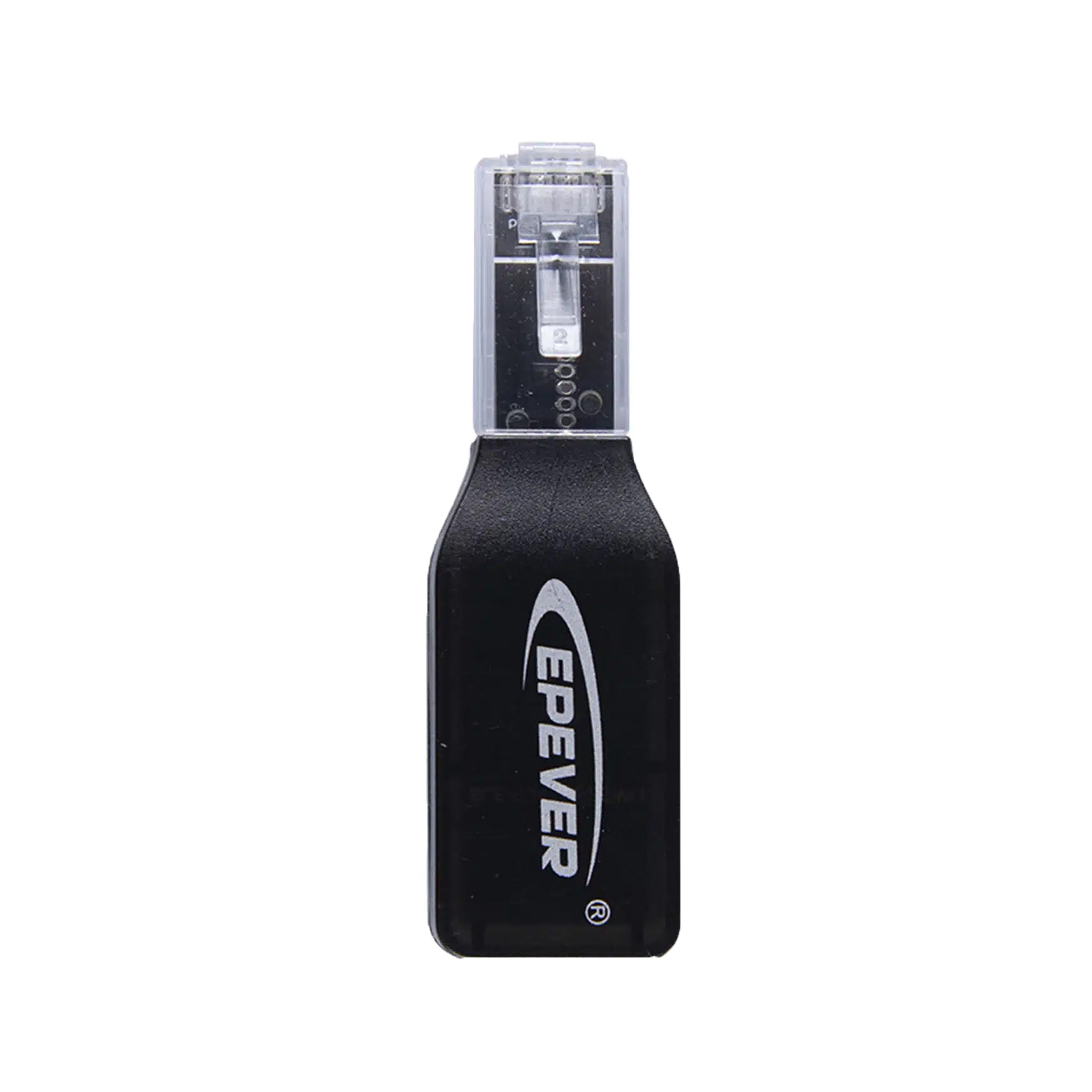

The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from our EPEVER inverters. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens.
Note: the WiFi 2.4G RJ45 D module is specifically designed to be compatible with the Solar Guardian app.
Technical Specs
| Working voltage | 5V± 0.5V(Powered by RS485 com. port) | |
| Power consumption | Peak emission: 150mA; Idle: 310uA | |
| Communication method | RS485 | |
| Communication parameters | 115200Bps, 8N1 | |
| Communication protocol | EPEVER communication protocol V1.1 | |
| Interface standard | EPEVER general communication standardV1-1.0 | |
| Working frequency | 2.4 ~ 2.4835GHz | |
| Environment temperature | -40℃~ 85℃ | |
| Dimension | 63x19x10mm | |
| Enclosure | IP54 | |
| Weight | 7.7g |
Features
- 2.4G WiFi Networking Communication
- Works with Controllers, Inverters, and Inverter Charger with RJ45 Interface
- Plug-and-Play with Easy Setup
- Communication Port Powered Directly, No External Power Required
- Communication Distance: Up to 20 Meters
- Support Two Working Modes: Offlfline Monitoring; WIFI Data Upload to the Cloud
Warranty
