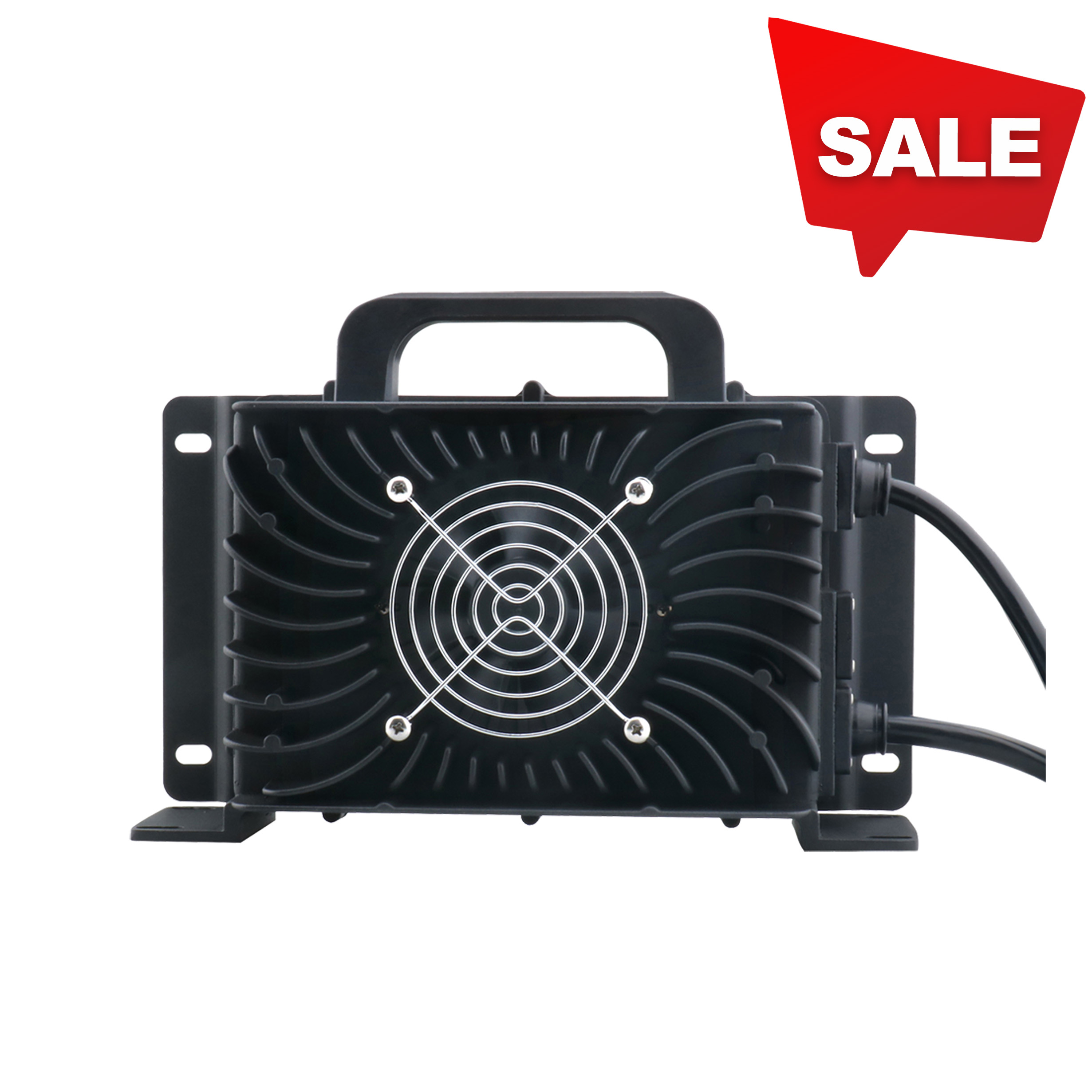

Waterproof Deep Cycle Golf Cart Charger 48V20A – no outlet connector
R3,125.22(Excl.Vat)
In Stock | Ships in one business day | FREE DELIVERY
• up to 91% work efficiency
• 100% full loading aging test
• Input voltage range 200-240Vac
• Reverse polarity protection
• Constant Current 20A
Ideal for small boats, golf carts, electric cars
Year Warranty
▼Additional product information & Specifications available below▼
This GCCOWD-4820 adopts digital programming technology, with high output voltage/current precision and good stability. The charger can supplement the energy of the vehicle power battery in park state. It is powered by I OA or 16A socket power supply. The charging process is automatically controlled by the charging program to meet the requirements of temperature resistance and vibration resistance. The battery status will be automatically identified within 30 seconds after the charger is started. The charging status will be entered if the identification is successful. The standby status will be entered if the identification fails.
48V 20A GOLF CART CHARGER FEATURES
- Up to 91% work efficiency
- Strong protection function
- Working temperature scope of wide temperature range
- 100% full loading aging test
- Output over voltage protection
- Output over current protection
- Output short-circuit protection
- Reverse polarity protection
- Charger over temperature protection
- 3 stage battery charging: CC, CV and floating
Technical Specs
| INPUT CHARACTERISTICS | |
| Battery | Gel |
| Max. output power | 64.8V± 0.2V |
| Output Current | 20A± 0.5A |
| Input voltage | 220Vac |
| OUTPUT CHARACTERISTICS | |
| CC (constant current) | 20A |
| CV (constant voltage) | 64.8V± 0.2Vdc↓ |
| Float Charging | yes |
| MECHANICAL CHARACTERISTICS | |
| Shell material | Zinc Aluminium Alloy |
| Waterproof | IP67 |
| Dimensions (mm) | 287(l) x 169(w) x 89(h) |
| Input socket | Meets IEC standard |
| AC Wire | 1.5 m length |
| DC Wire | 1.5 m length |
| Weight | 4.5 kg (4500g) |
DOWNLOADS
What's in the box
1x 20A Golf Cart Charger
1x Instruction Manual
