PROJECTA 12V 30A Charger & 35A Power Supply, 30A MPPT Solar Controller, Dimmable Lights
R34,635.65(Excl.Vat)
A complete remote-control solution for the most advanced setups. Remote operation of water pump, lighting and appliances, plus a master switch and night mode. Bedroom lighting switch panels enable light and dimming control from the comfort of your bed.
Out of stock
PM400 is designed for caravan or motor home with integrating many functions, including battery charger, distribution blocks, MPPT solar charger controller, charging relay, low voltage disconnect, water pump controller, water tank indicator, preconfigured switch panels as well as a crystal central monitor.
Includes PM300 advanced LCD display plus a central switch panel, bedroom light/dimming switches and smart phone Bluetooth operation. The central switch panel can be mounted anywhere and allows remote operation of water pump, lighting and appliances, plus a master switch and night mode. Bedroom lighting switch panels enable light and dimming control from the comfort of your bed. Bluetooth connectivity means you can control and monitor your power system and appliances from inside or outside using the smart phone app – great for outdoor light switching.

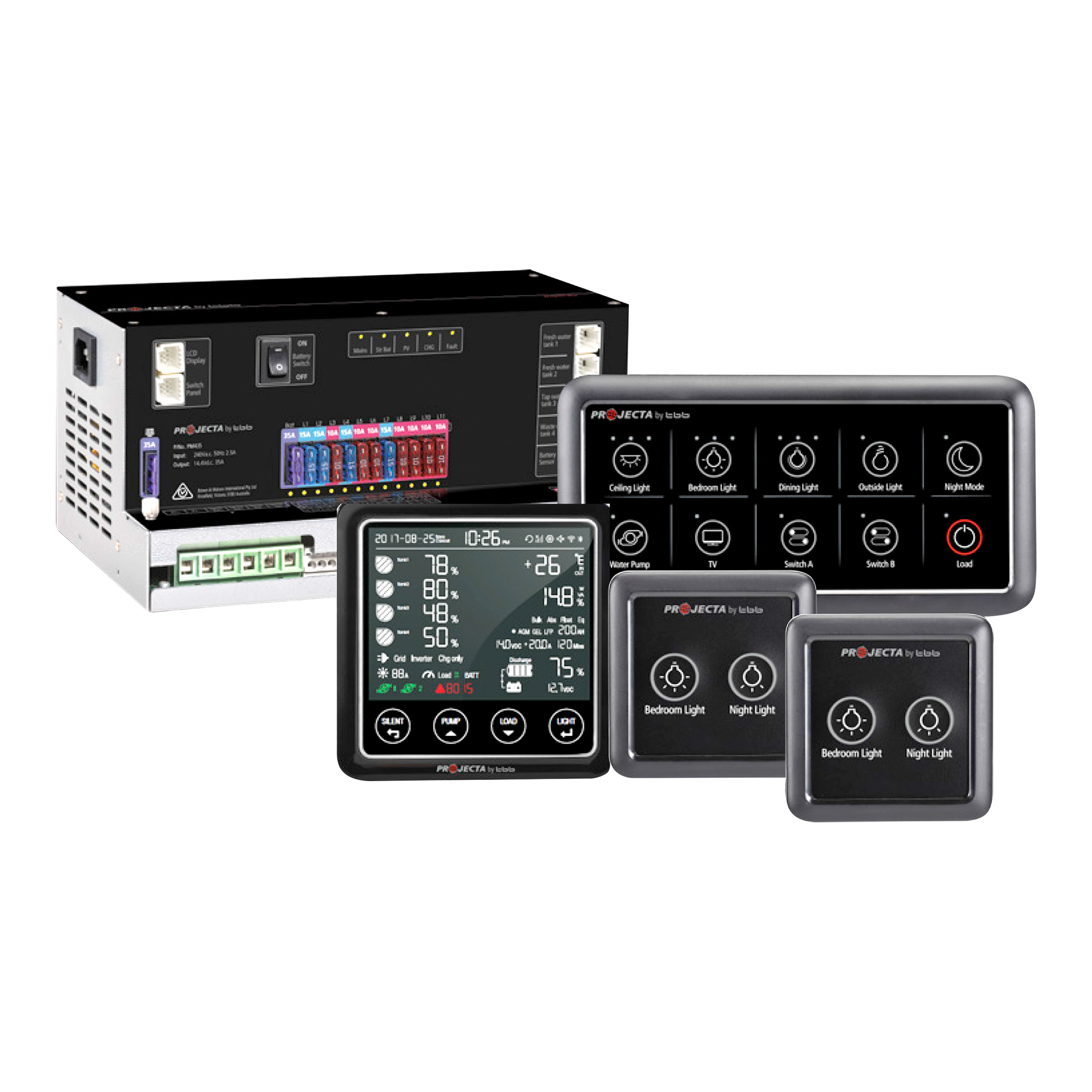

SYSTEM COMPONENTS:
1. Master Power Unit
2. Monitor with Bluetooth connectivity
3. 10 position switch panel (not inc. PM435-BT)
4. 4 Water tank sensors (not supplied)
5. 2 x 2 Position switch panel (not inc. PM435-BT)
6. Cables (Refer to Chapter 4.1 for the cable list)
Technical Specs
| ELECTRICAL | |
| Grid | |
| Nominal input voltage (V) | 240 10%VAC 50/60Hz |
| Power factor | 0.95 |
| Input current at full load | 2.5A |
| Battery | |
| Starter battery | 12VDC |
| Starter battery voltage range | 12.8-16VDC |
| Service battery | 12VDC |
| Service battery voltage range | 10.5-16VDC |
| PV | |
| Charger type | MPPT |
| Open circuit voltage | 50VDC |
| Max supply current | 30A |
| Max charging current | 30A |
| Charging Relay | |
| Relay Specification | 12VDC 60A continuous, peak current 100A, 30mins |
| Connect Voltage | Lead Acid – 13.4VDC |
| LiFePO4 – 14.0VDC | |
| Connection delay time | 10 sec |
| Disconnect voltage | Lead Acid – 13.4VDC |
| LiFePO4 – 13.5VDC <2A | |
| Disconnect delay time | 60 sec |
| High voltage limit | 16.0VDC |
| Charger mode | |
| Charge Algorithms | 5 Stage |
| Battery type | AGM/GEL/LFP(LiFePO4)/WET |
| Start voltage | 2V (Gel, AGM, Wet) 0V (LFP) |
| Bulk current | 30A (Max) |
| Absorption voltage | (14.4/14.1 /14.4/14.7) 0.15VDC |
| Float Voltage | (13.5/13.5 /13.5/13.7) 0.13VDC |
| Power supply mode | |
| Nominal output voltage | 12.8 0.2 VDC |
| Rated output current | 35A (Continuous) |
| Efficiency | 88% |
| Working temperature | -40°C +65°C (50°C:full load; 60°C:20A; 65°C: shutdown the output) |
| Battery Disconnect (LVD) | |
| Disconnect voltage | 10.5VDC (default) AGM/GEL/WET |
| 11.2 VDC (Default) LiFePO4 | |
| Delay off time | 60 sec |
| Reconnect voltage | 11.5VDC (default) AGM/GEL/WET |
| 12.2 VDC (Default) LiFePO4 | |
| Current Draw on Battery | |
| 240VAC is off, no vehicle charging | 720mA |
| Load switch off | 295mA |
| LVD off, Service<10.5V current draw on battery | 165mA |
| Battery switch OFF <10V draw on battery | 0mA |
| Fused outputs | |
| Numbers | 11 |
| Rated current | 15A x 4: 10A x 7 |
| Light Outputs | (L12, L13, L14) 3.5A x 3 |
| Protection | |
| Short circuit on output | Fuse blown |
| Reverse Polarity | Diode reverse isolation |
| Overload protection | Derate the output until overload is removed |
| Battery charger over temperature | Shutdown PM400 |
| Ambient over temperature | Alarm |
| Battery over voltage limits | Battery charger disconnect, loads disconnect |
| PHYSICAL | |
| Dimensions (L*W*H) | 264 × 164 × 128mm |
| Weight (kg) | 3kgs |
| Enclosure | Steel case |
| Protection category | IP20 |
| APPROVALS | |
| Electrical | AS/NZS 60335-2-29 |
| EMC | CISPR14 |
Features
• Smart battery charger 12V 35A (30A for charging current)
• Multi stage adaptive charging algorithm
• Active Power Factor Correction PFC charging
• Temperature compensation Charging
• Voltage compensation Charging
• Float Charge for starter battery
• 30A MPPT Solar charge controller
• Built-in 14 outputs
• 11 x fused outputs
• Battery charging relay 12V 60A – 60A continuously, 100A 30mins
• Battery Low Voltage Protection (Low Voltage Disconnect)
• Built-in Battery Switch
• Support external remote battery switch
• Built-in shunt for precise battery measurement
• Control one water pump with four tank probes
• Thermal controlled fan
• Spring terminal & Screw terminal
• T-bus compatible
Warranty
2-Year
