Projecta 12V 30A System, 35A Power Supply, 30A MPPT with 7” Display
Price on Request | EMAIL HERE
• 30A MPPT Solar charge controller
• Built-in DC-DC charger 12V 30A continuous
• + 7” Bluetooth LCD touch screen
Ideal for use in caravans, motor homes and RVs.
Year Warranty
▼Additional product information & Specifications available below▼

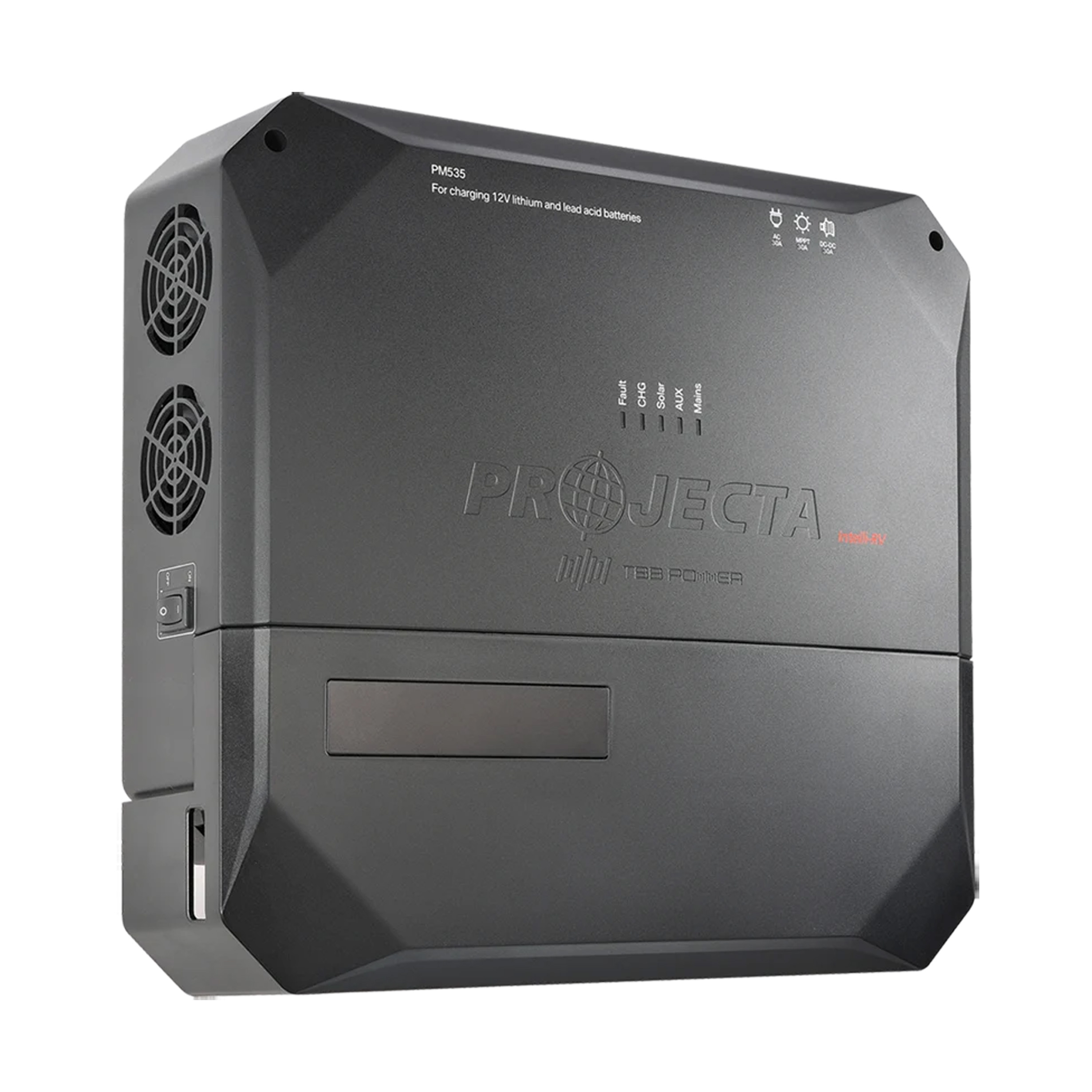

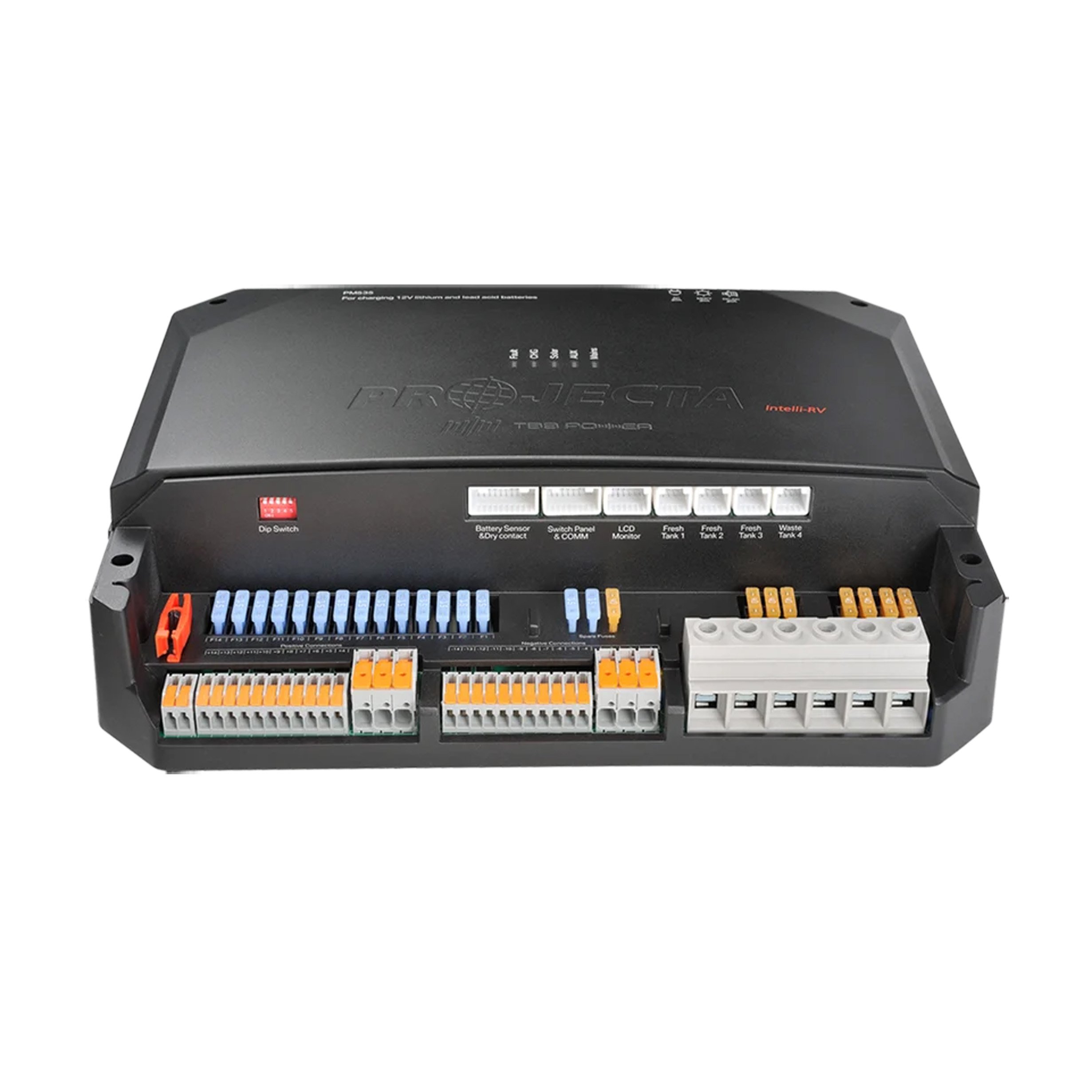

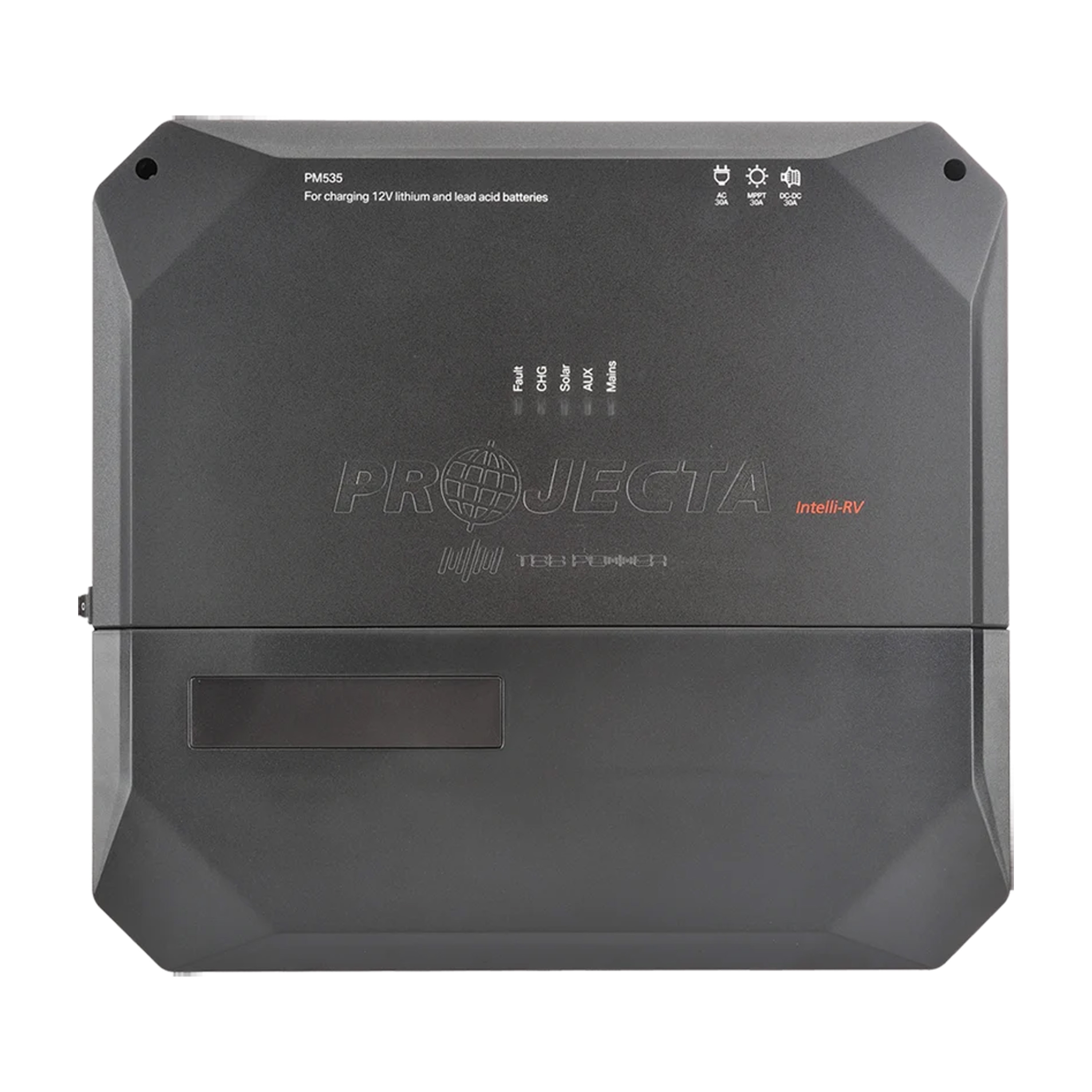

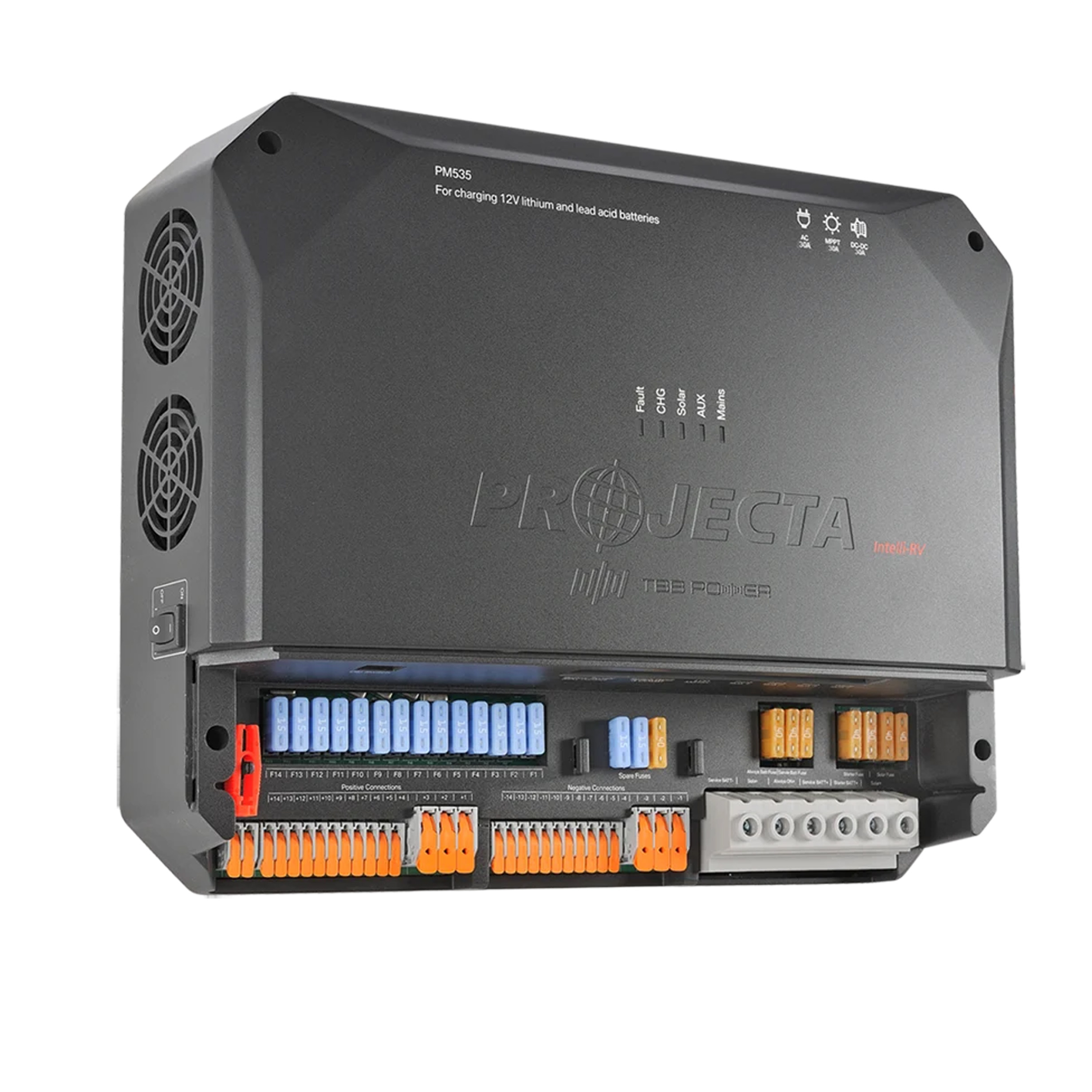

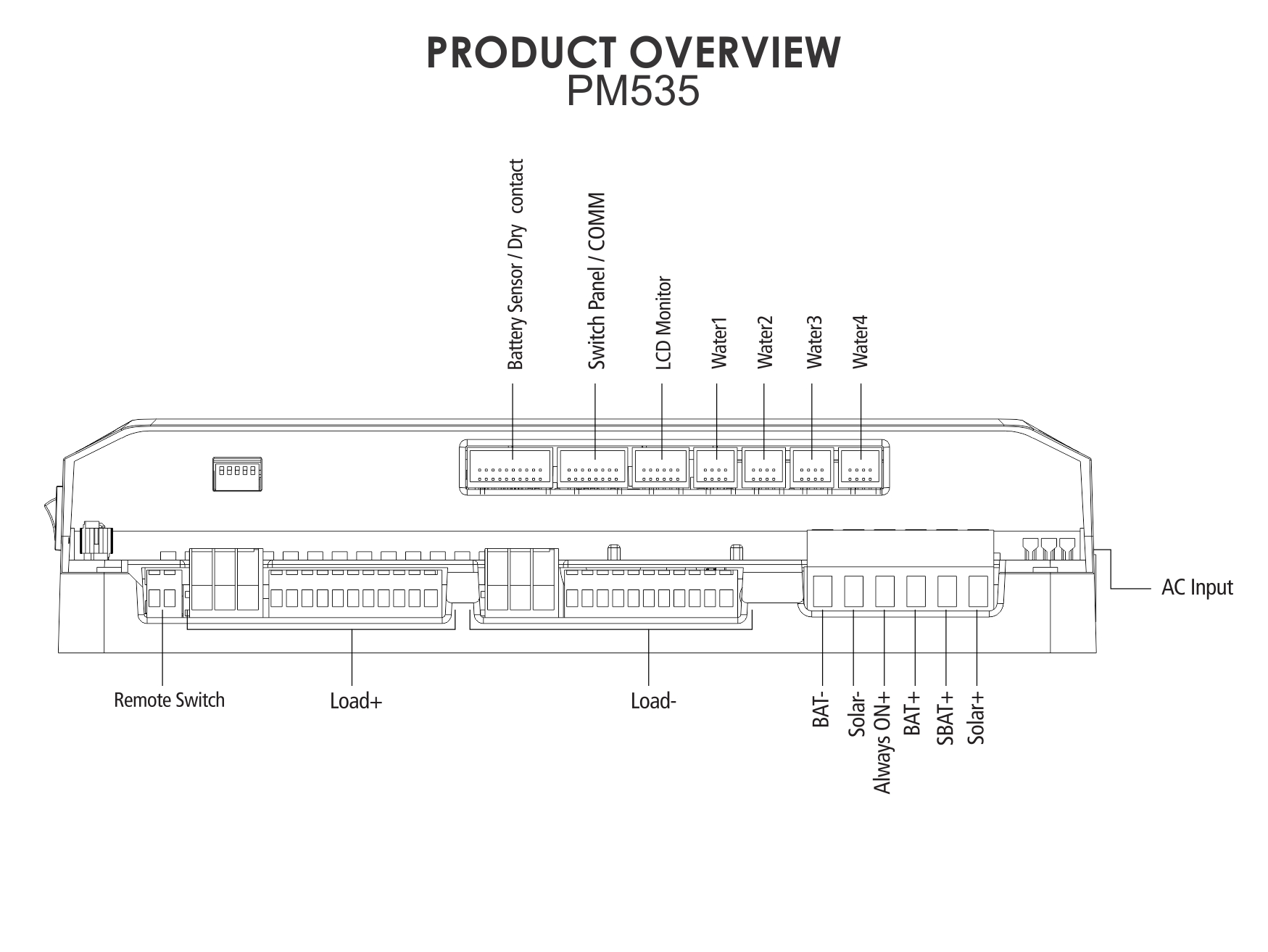

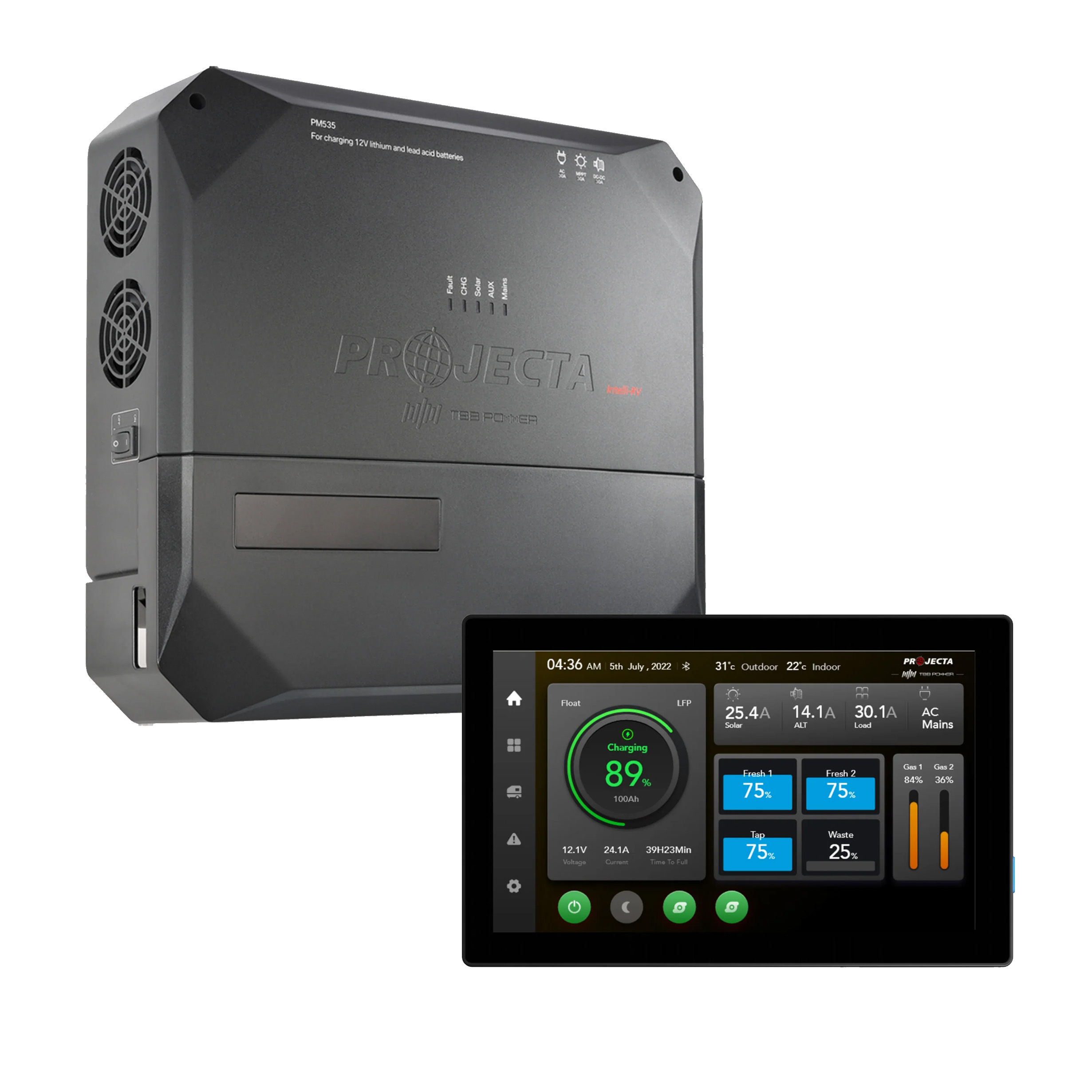

The kit includes the PM535 Power Management Unit paired with a 7” Bluetooth touch display. Designed for caravans and motor homes, this complete system integrates charging, monitoring, and control functions for 12V setups, including 30A AC, 30A DC-DC, and 30A MPPT solar charging. The compact 7″ interface provides real-time system data and diagnostics through an intuitive touchscreen for effortless power management.
30A POWER MANAGEMENT SYSTEM FEATURES
- COMPLETE POWER CONTROL
The 7” kit brings together charging, distribution, and monitoring in one smart, easy-to-use system. It provides complete control of your caravan or motorhome’s 12V power setup. - ADVANCED CHARGING TECHNOLOGY
With built-in 30A AC, 30A MPPT solar, and 30A DC-DC chargers, the system keeps your batteries powered from multiple sources, ensuring reliable energy wherever you travel. - SMART MONITORING THROUGH BLUETOOTH

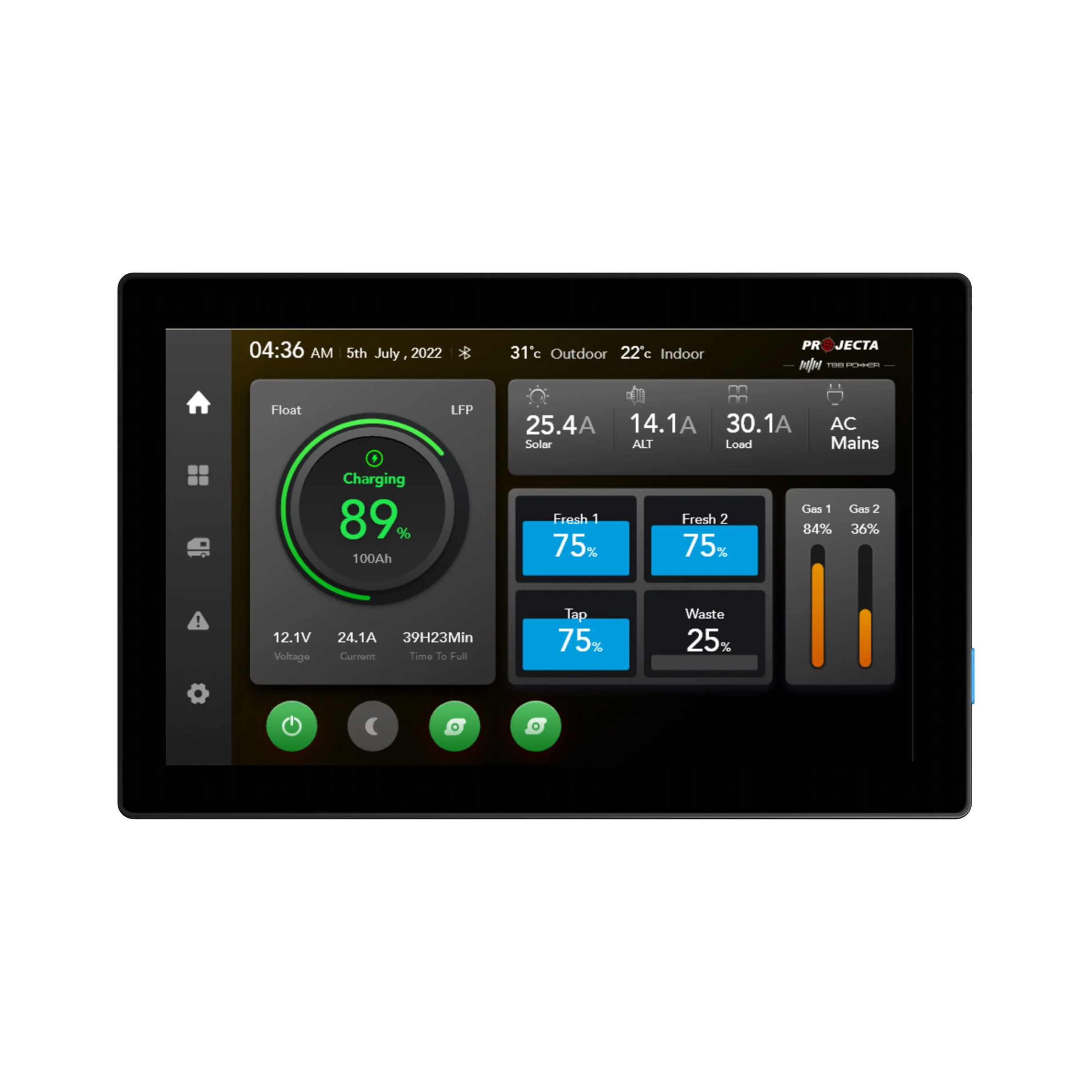

The 7” Bluetooth display connects directly to the PM535 Power Management Transformer and your mobile device via the Intelli-Grid app, giving you real-time updates on battery and system performance. -
COMPATIBLE WITH PROJECTA ACCESSORIESConnect additional Projecta components such as tyre pressure monitors, leveling sensors, and lithium batteries for a complete, future-ready power solution
 |
 |
 |
 |
TECHNICAL SPECS

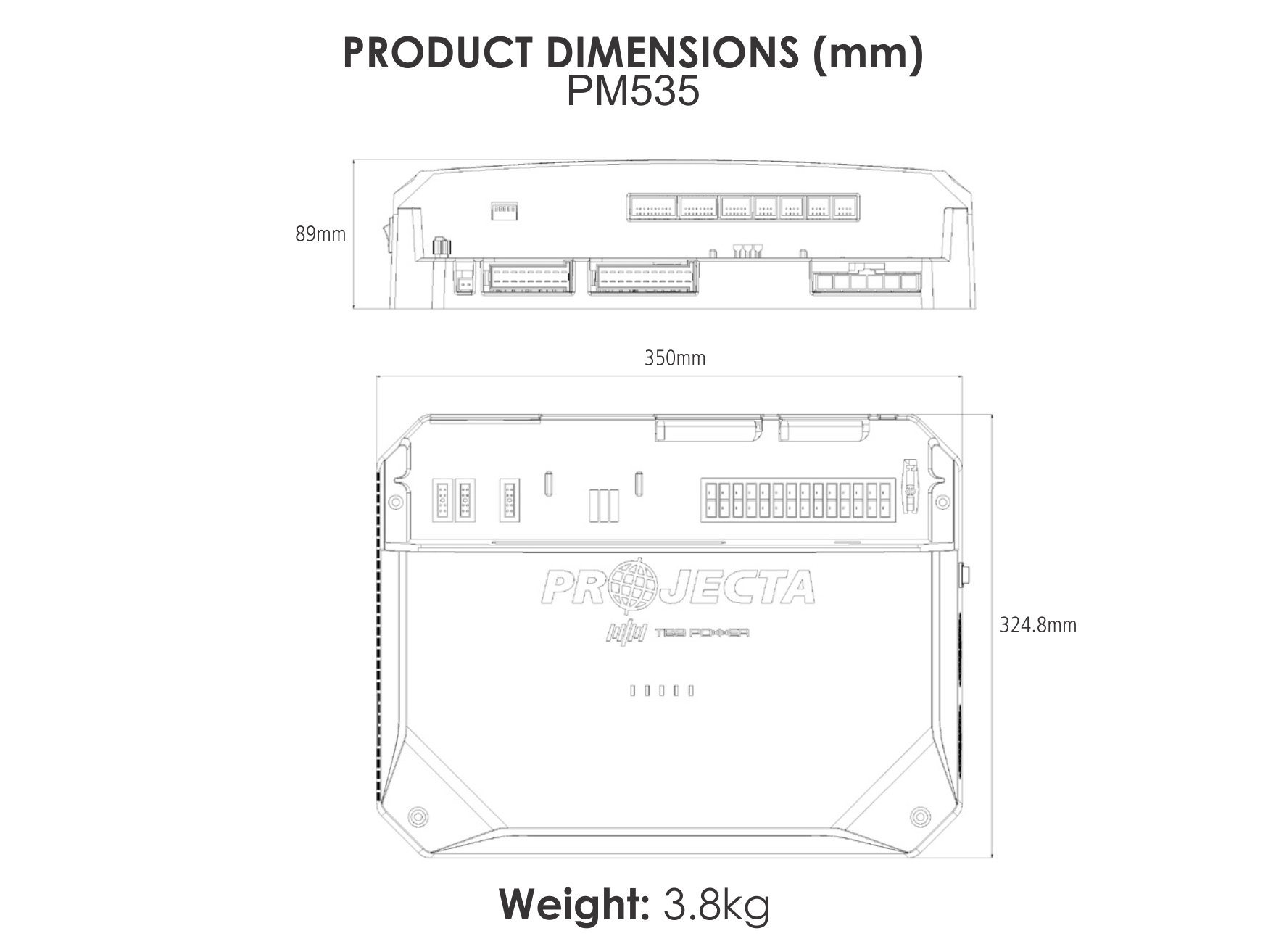

UNIT PM635
| AC MAINS | |
| Nominal input voltage | 240V ±10%VAC 50/60Hz |
| Vehicle Battery | 12VDC |
| PV | |
| Charger type | MPPT |
| Max charging current (solar) | 30A |
| DC-DC CHARGER | |
| Alternator input voltage range | 12-16VDC |
| Charge current | 30A |
| Maximum charging efficiency | 96% |
| CHARGER MODE | |
| Charge algorithms | 5 Stages |
| Battery type | AGM/GEL/LFP(LiFePO4)/WET |
| Bulk current | 30A |
| Maximum battery capacity | 1200Ah |
| POWER SUPPLY MODE | |
| Rated output current | 35A (Continuous) |
| IP RATING | IP20 |

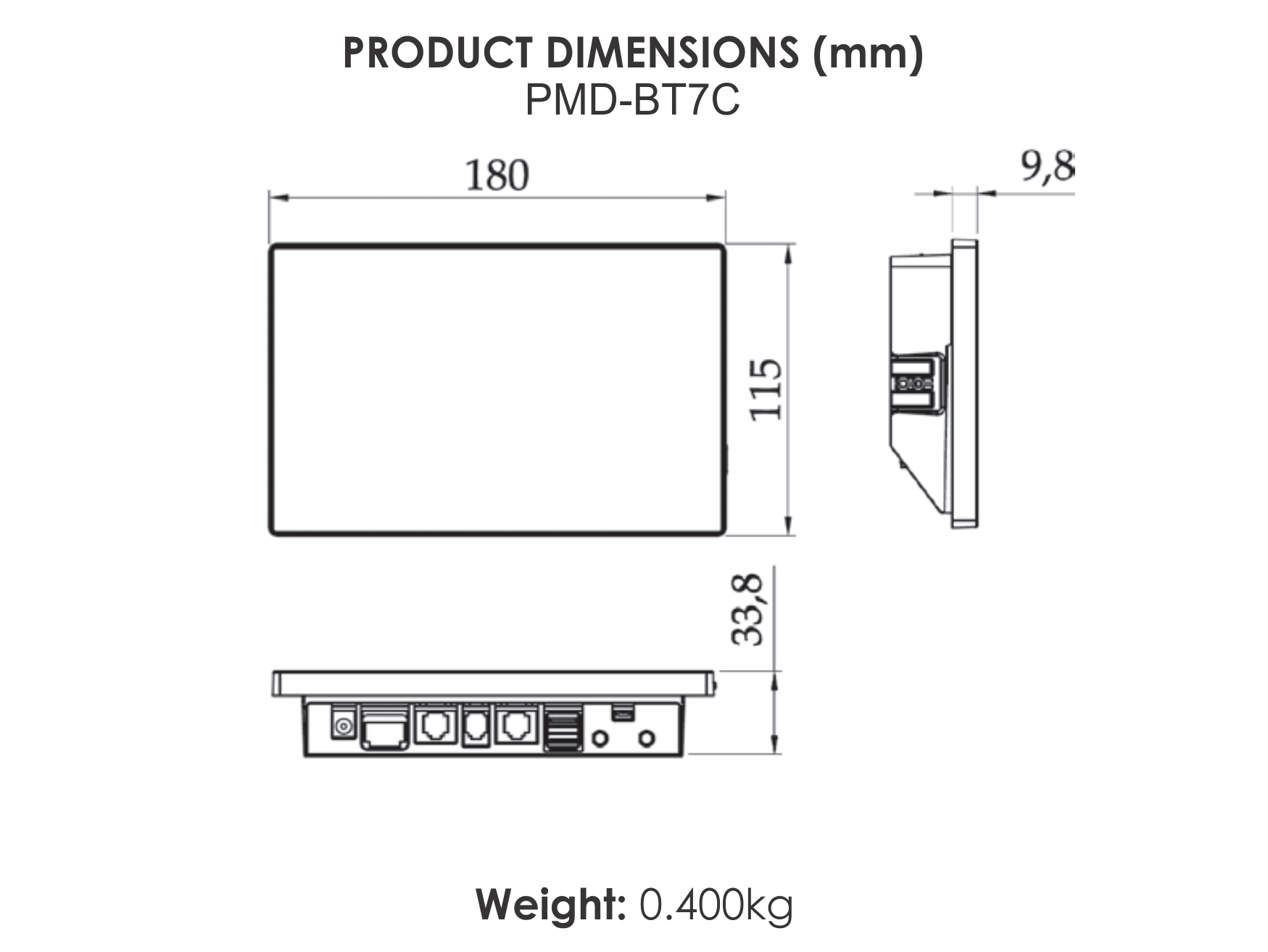

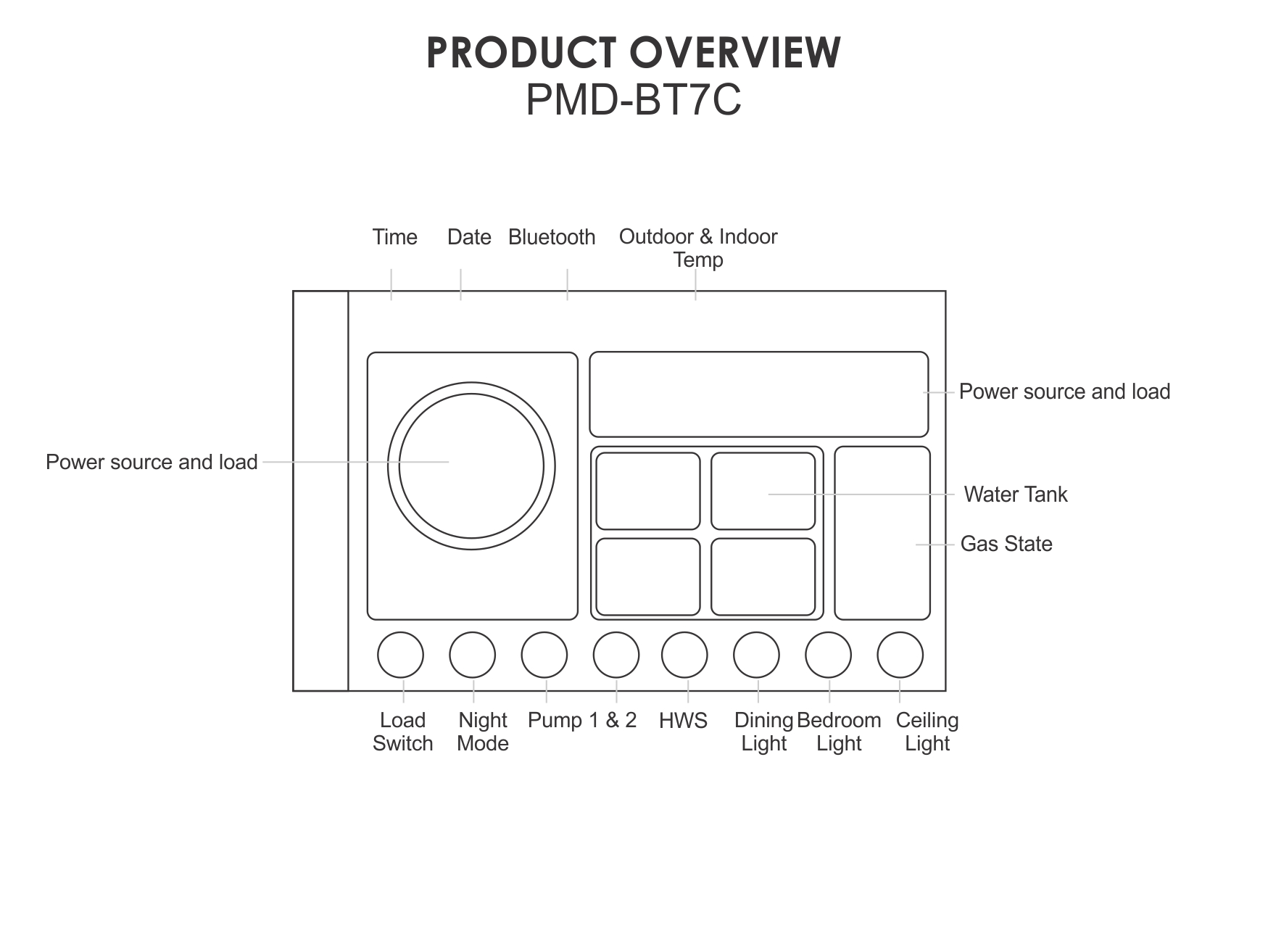

PMD-BT7C
| Input | 12VDC |
| Current | 800mA |
| Temperature | -20~+60°C |
| IP Rating | IP20 |
Videos
Intelli-RV GEN II by PROJECTA
FAQs
What's in the box
1x Projecta 30A Power Management Transformer Unit
1x Intelli-RV 7″ LCD Colour Display with Bluetooth
Includes all accessory cables and connections and manuals
