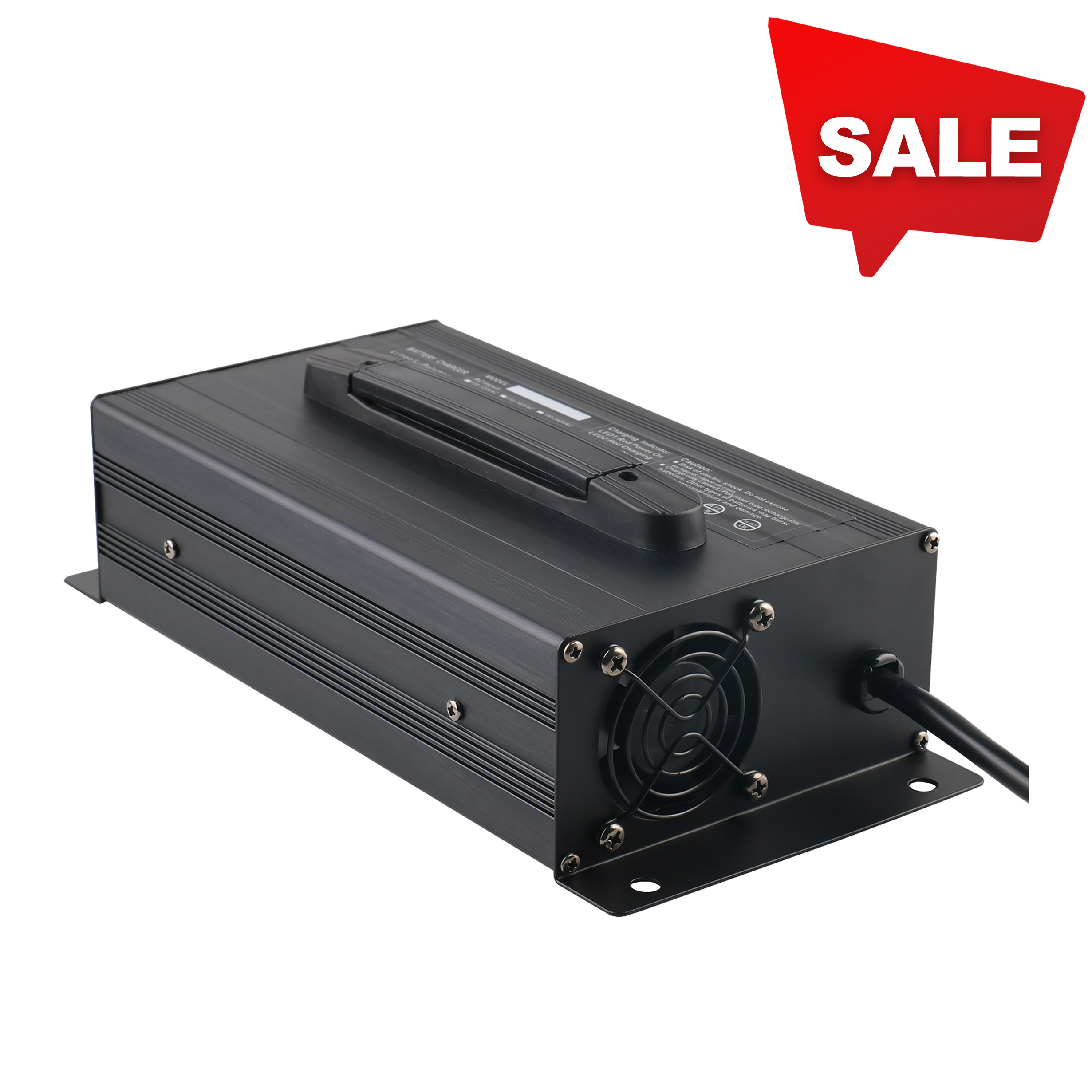

CS Golf Cart Charger 36V25A – no outlet connector

R3,125.22(Excl.Vat)

In Stock   |   Ships in one business day   |   FREE DELIVERY

• up to 91% work efficiency
• 100% full loading aging test
• Input voltage range 200-240Vac
• Reverse polarity protection
• Constant Current 25A

Ideal for small boats, golf carts, electric cars

2 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼






The technology of switching power supply without power frequency transformer is adopted, so it has AC and DC compatible input function and wide input voltage range; Using advanced switching power supply control technology and components, as well as careful design. The GCCO-3625 is small in size, light in weight and high in efficiency, ensuring long-term stability and reliable load operation. This Battery Charger can work as normal under 44.1 Vdc/25A and with reverse polarity protection.

25A GOLF CART CHARGER FEATURES

  • Up to 91% work efficiency
  • Strong protection function
  • Working temperature scope of wide temperature range
  • 100% full loading aging test
  • Quake proof degree of automotive grade
  • Output over voltage protection
  • Output over current protection
  • Output short-circuit protection
  • Reverse polarity protection
  • Charger over temperature protection
  • Built-in fans, automatic forced ventilation
  • 100% full load burn-in test
  • 3 stage battery charging: CC, CV and floating
  • Charging parameters are insensitive to the AC input line voltage variations









Technical Specs

SKU GCC0-3625 GCC0W-3625 GCC0-4820 GCC0W-4820
INPUT CHARACTERISTICS
Battery Lead acid Lead acid Lead acid Lead acid
Max. output power 44.1V± 0.2V 44.1V± 0.2V 58.8V± 0.2V 58.8V± 0.2V
Output Current 25A± 0.5A 25A± 0.2A 20A± 0.5A 20A± 0.2A
Input voltage 220Vac 220Vac 220Vac 220Vac
OUTPUT CHARACTERISTICS
CC (constant current) 25A 25A 20A 20A
CV (constant voltage) 44.1V± 0.2Vdc↓ 44.1V± 0.2Vdc↓ 58.8V± 0.2Vdc↓ 58.8V± 0.2Vdc↓
Float Charging yes yes yes yes
MECHANICAL CHARACTERISTICS
Shell material Aluminium Zinc Aluminium Aluminium Alloy Zinc Aluminium Alloy
Waterproof – IP67 – IP67
Dimensions (mm) 281(l) x 134(w) x 83.5(h) 287(l) x 169(w) x 89(h) 281(l) x 134(w) x 83.5(h) 287(l) x 169(w) x 89(h)
Input socket Meets IEC standard Meets IEC standard Meets IEC standard Meets IEC standard
AC Wire 1.5 m length 1.5 m length 1.5 m length 1.5 m length
DC Wire 1.5 m length 1.5 m length 1.5 m length 1.5 m length
Weight 3.5 kg (3500g) 4.5kg (4500g) 3.5 kg (3500g) 4.5kg (4500g)





DOWNLOADS

Specifications

What's in the Box

1x 25A Golf Cart Charger
1x Instruction Manual
