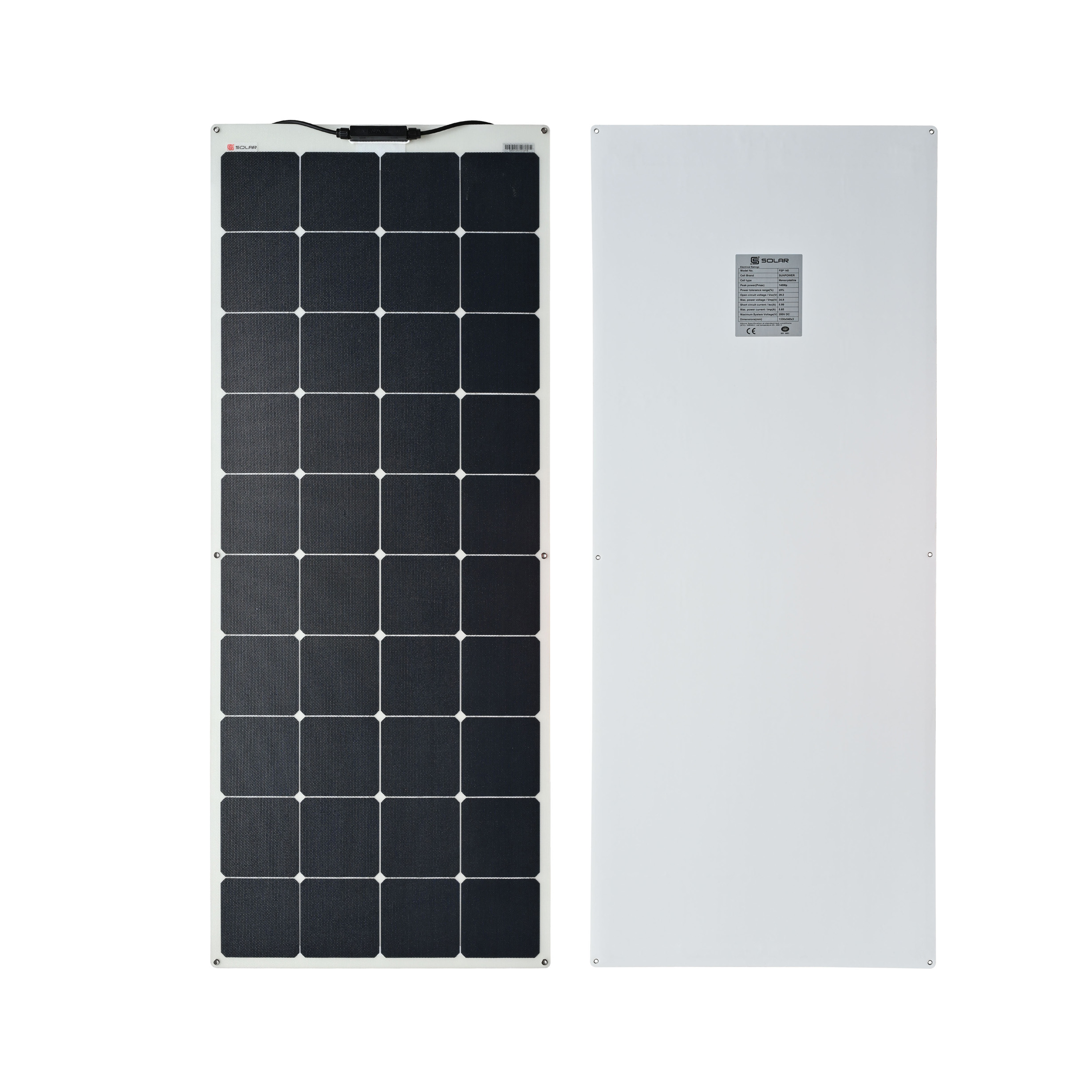

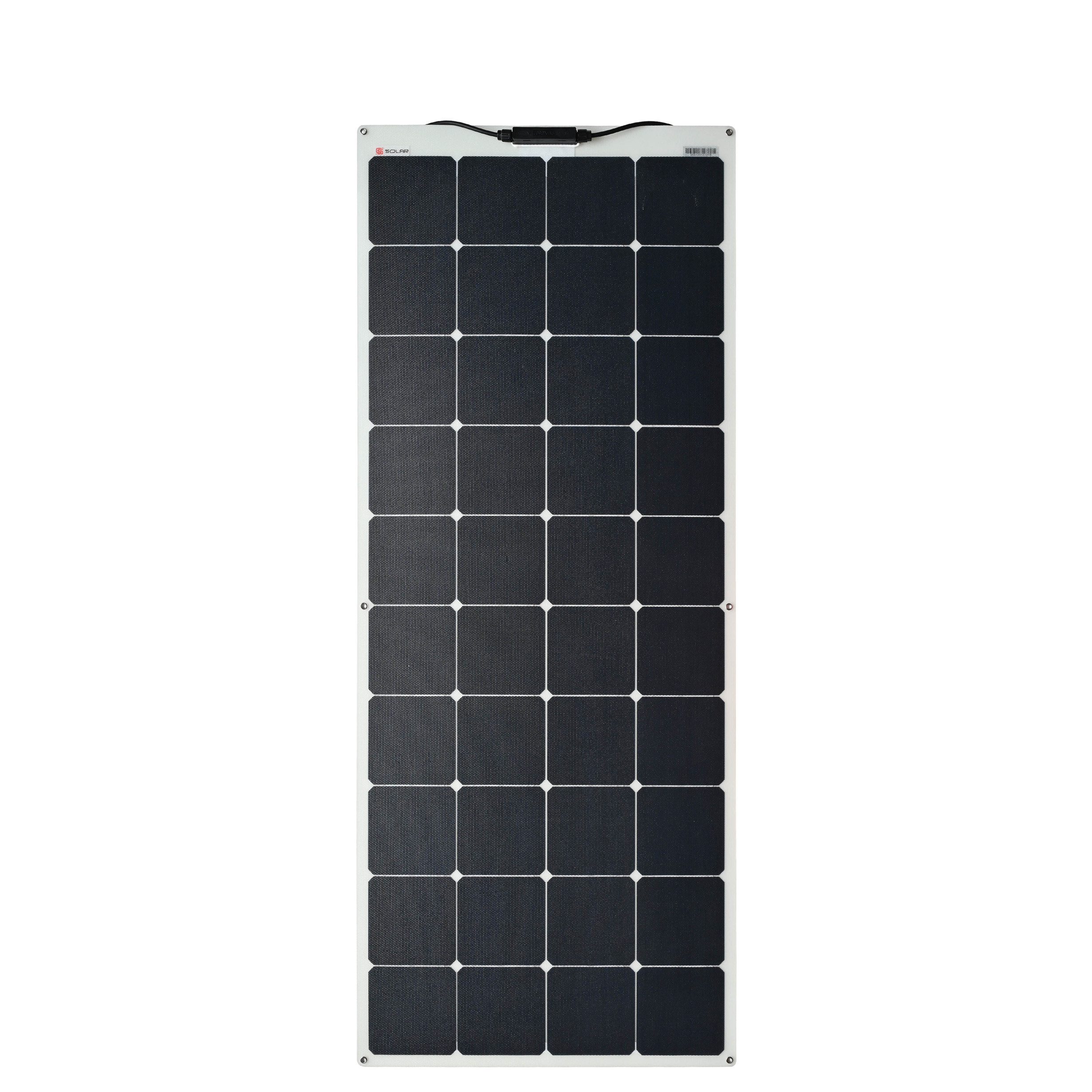

CS High Efficient Flexible Solar Panel 140W
R5,158.26(Excl.Vat)
Ideal for permanent installations on 4WD, RV’s, Caravans and trailers.
SELECTING THE CORRECT SIZE SOLAR PANELS
In stock
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |
The CS Highly Efficient Flexible Solar Panel FSP140 is an innovative, glass-free photovoltaic panel. Its advanced technology and polymer composite materials make it truly lightweight, thin, and flexible — only 3.5 kg/m², which is about 30% of the weight of traditional rigid solar panels.
Technical Specs
| Maximum Power (PMAX) | 140W |
| Open Circuit Voltage (VOC) | 29.2V |
| Voltage at PMAX (VMP) | 24.8V |
| Short Circuit Current (ISC) | 5.98A |
| Current at PMAX (IMP) | 5.65A |
| Cells Efficiency | 24.40% |
| The Maximum System Voltage | 200V DC(IEC) |
| Power Temperature Coefficient | -0.27%/℃ |
| Voltage Temperature Coefficient | -0.236%/℃ |
| Current Temperature Coefficient | 0.058%/°C |
| Output Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Solar cell brand | Sunpower |
| No.of cells and connections | 40(4*10) |
| Module dimension | 1330*540*3mm |
| Weight | 3.12KG |

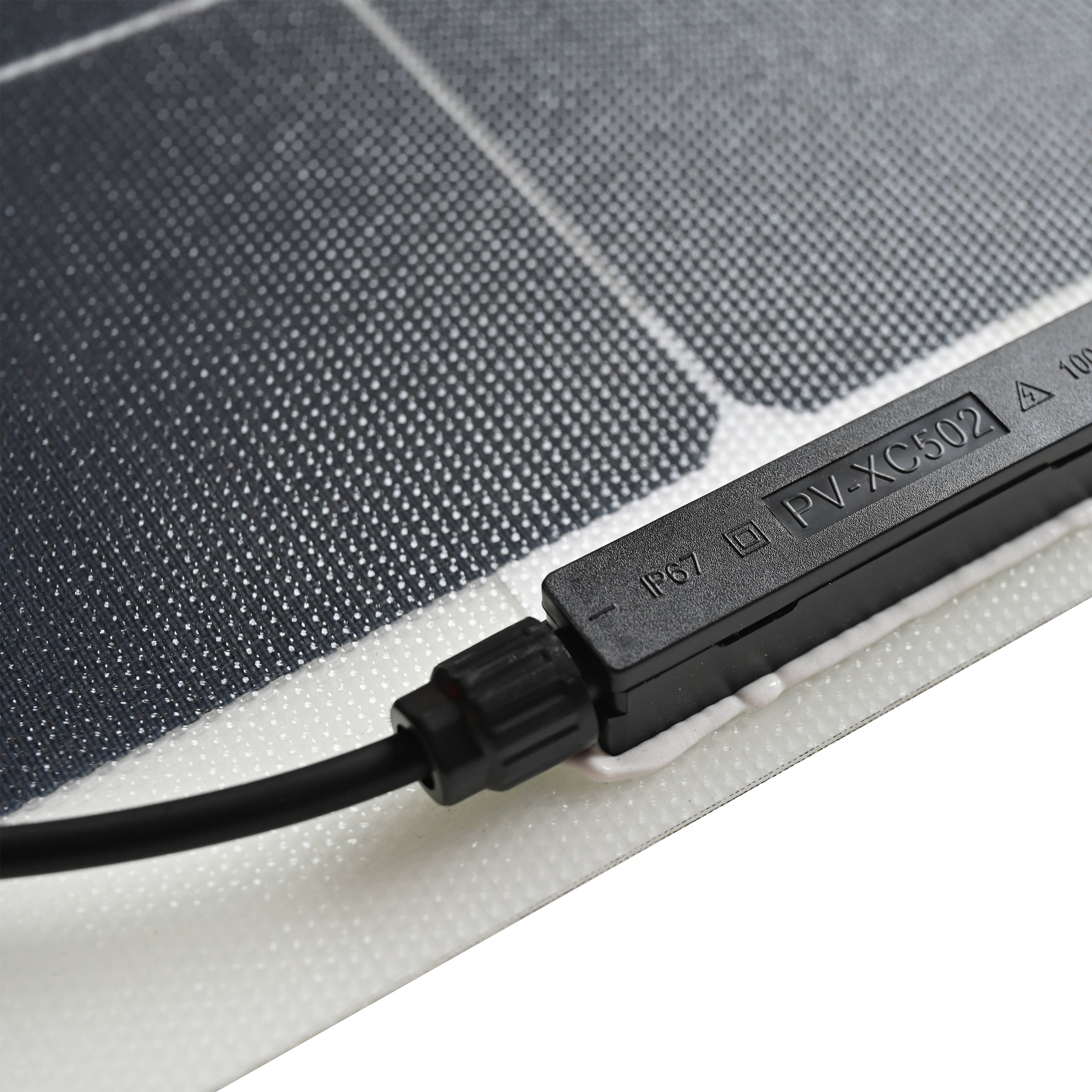

| Output cable | JB (2*bybass diodes) + 900mm/4mm2 cable + MC4 compatible |
| Waterproof junction box | IP68 |
| Certifications | CE, ROHS |

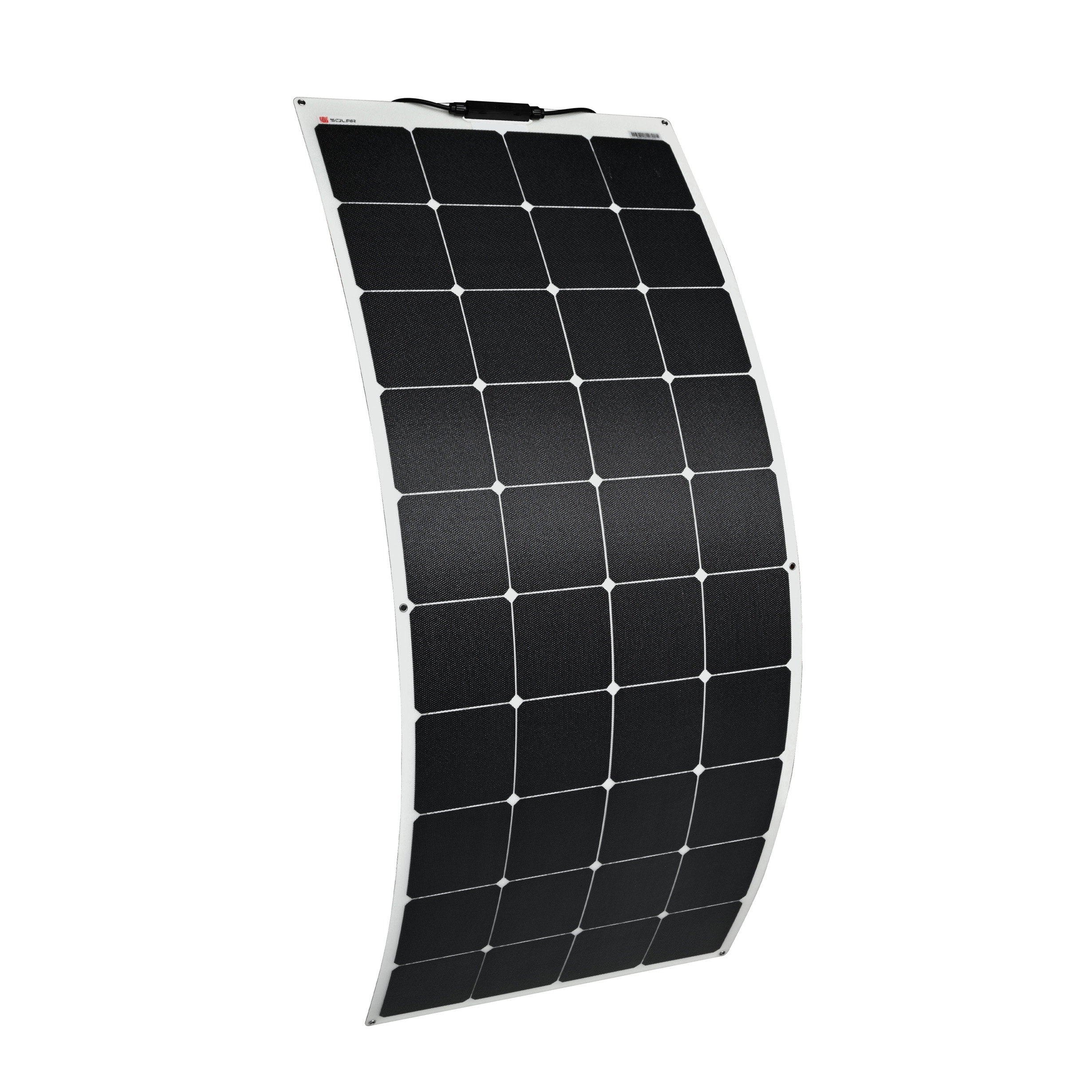

| Maximum bending arch height | 200mm |
Features
• Stronger impact resistance.
• Ultra-light
• Glass-free
• Thickness of only 3mm
• Has passed PID, salt mist and ammonia corrosion tests
Downloads
Warranty
2-year
