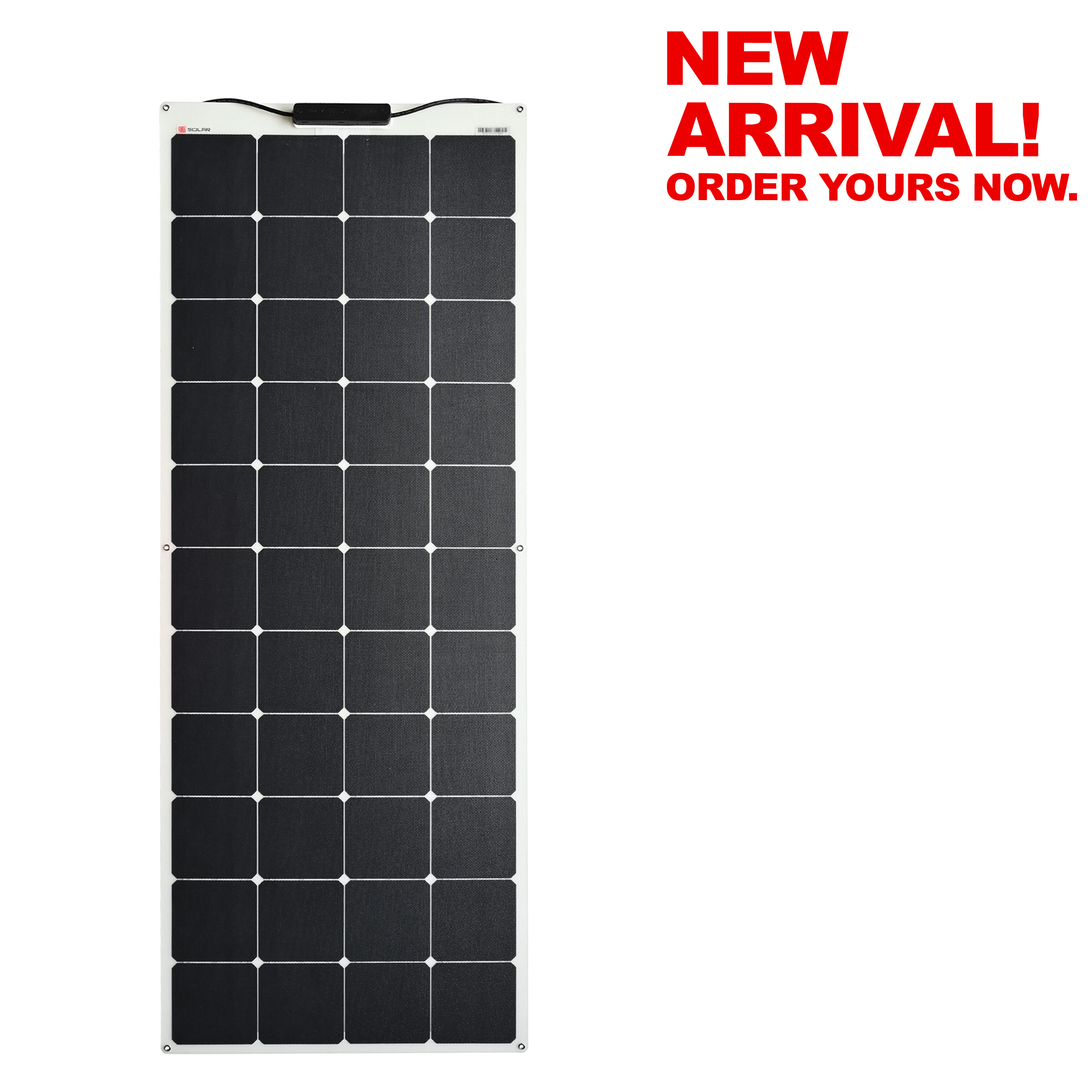

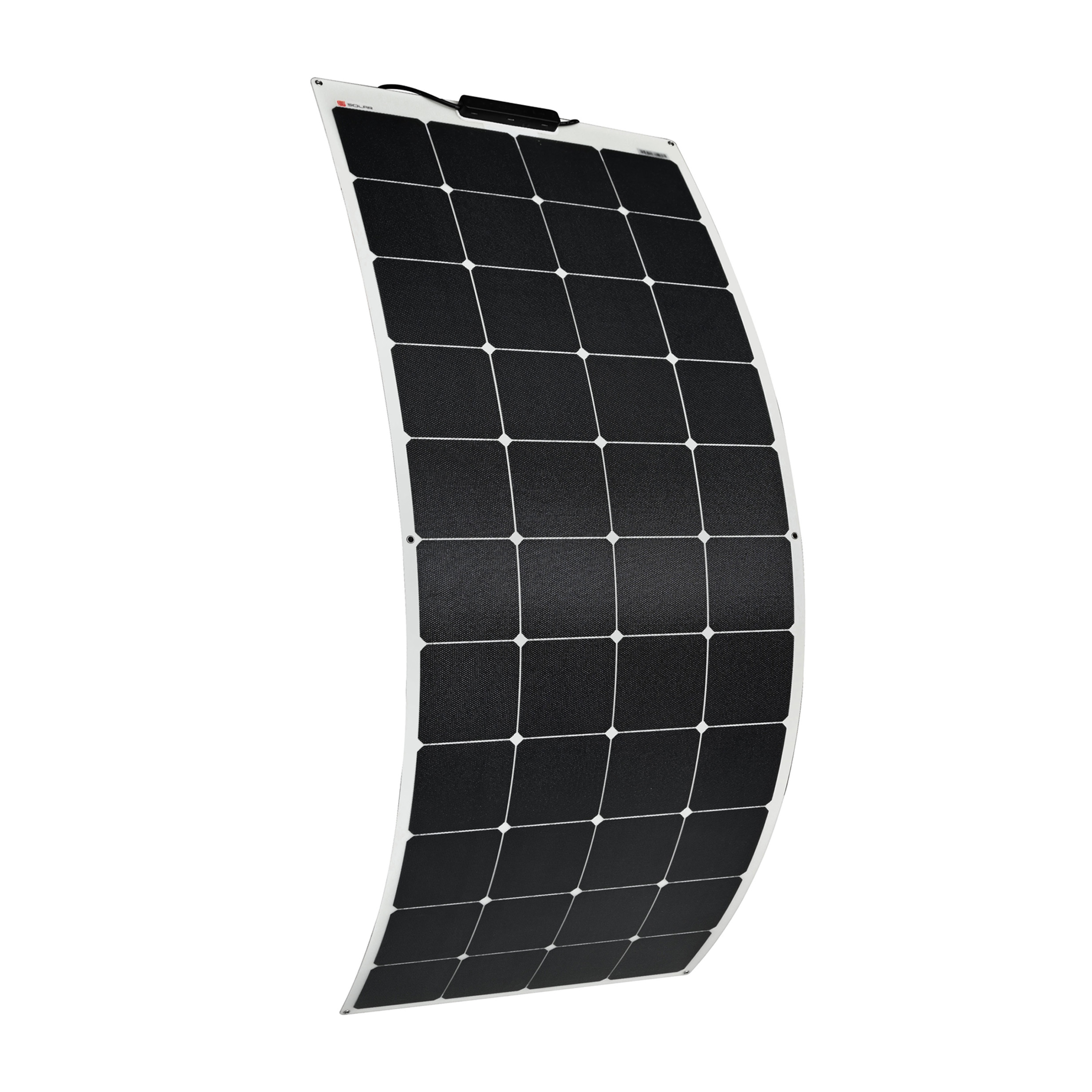

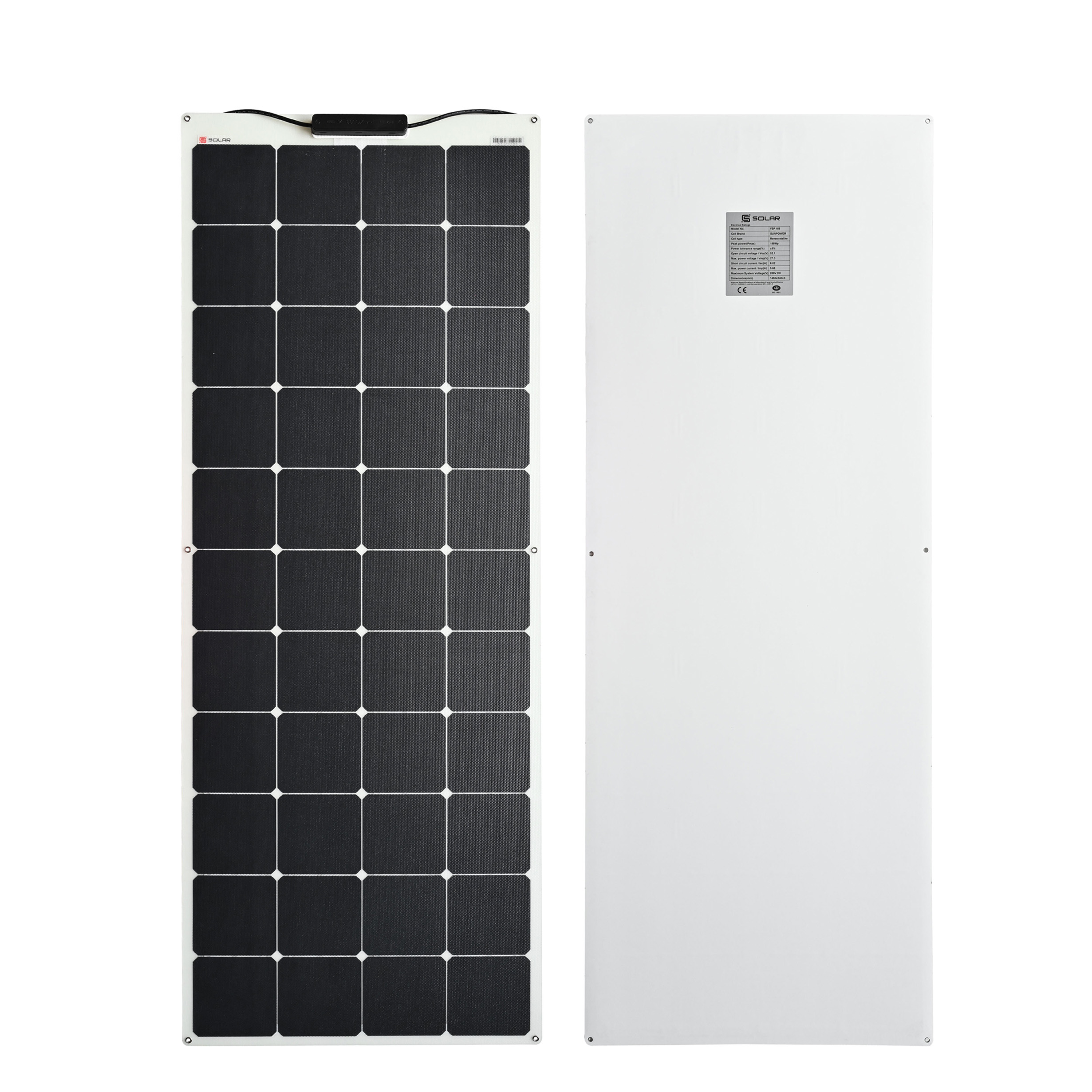

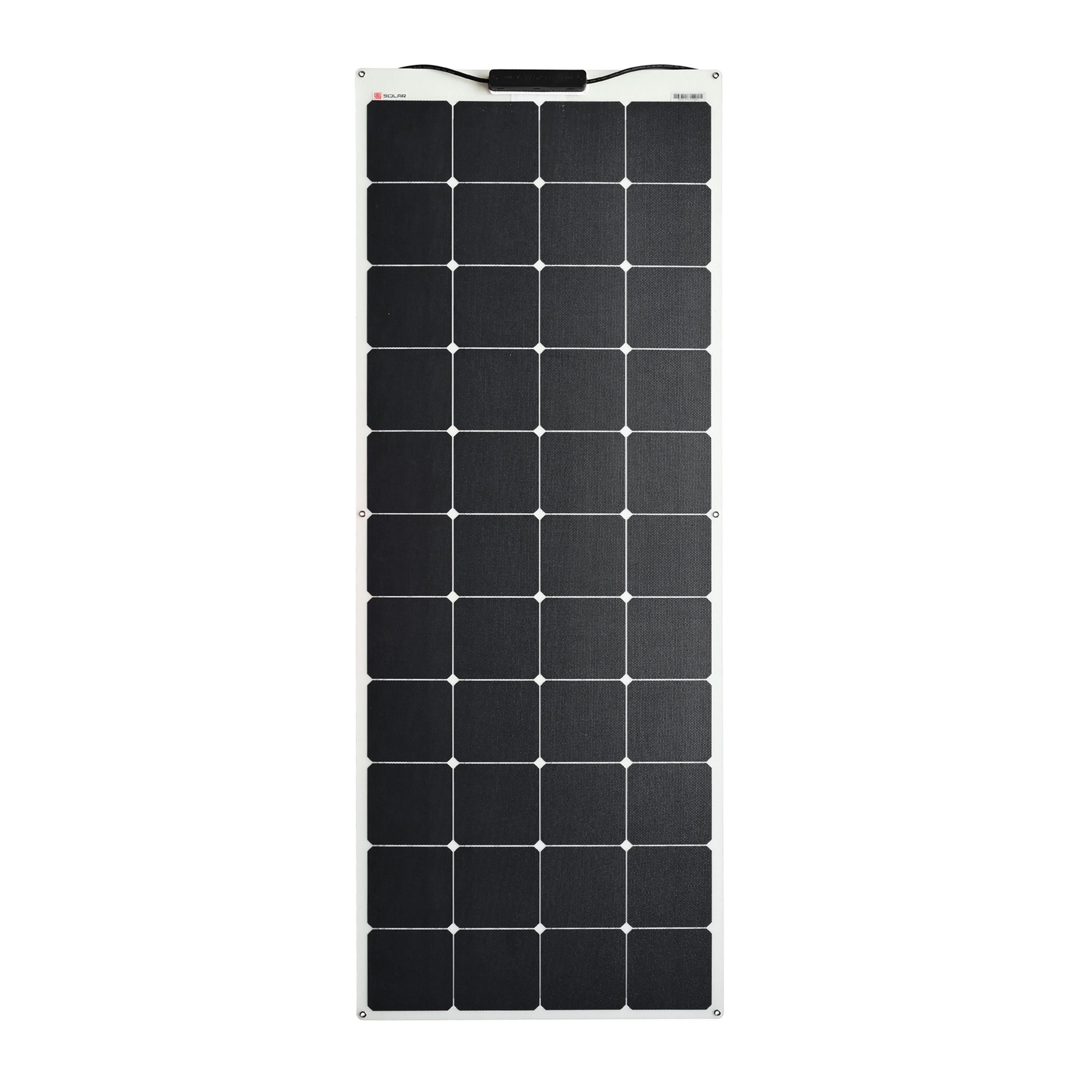

CS High Efficient Flexible Solar Panel 155W
R5,216.52(Excl.Vat)
Ideal for permanent installations on 4WD, RV’s, Caravans and trailers and the ultimate solar panel for the Projecta IDC25.
SELECTING THE CORRECT SIZE SOLAR PANELS
In stock
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |
CS Highly Efficient Flexible Solar Panel 150W FSP155, photovoltaic panel is an innovative glass-free solar panel. It adopts proven crystalline silicon solar cell. It’s technology and polymer composite material truly realize glass free, lightweight and thin flexible solar panels, as light as 3.5 kg/m2 which is only 30% of rigid solar panels.
Technical Specs
| Maximum Power (PMAX) | 155W |
| Open Circuit Voltage (VOC) | 32.1V |
| Voltage at PMAX (VMP) | 27.3V |
| Short Circuit Current (ISC) | 6.02A |
| Current at PMAX (IMP) | 5.68A |
| Cells Efficiency | 24.40% |
| The Maximum System Voltage | 200V DC(IEC) |
| Voltage Temperature Coefficient | -0.236%/℃ |
| Current Temperature Coefficient | 0.05%/°C |
| Output Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Solar cell brand | Sunpower |
| No.of cells and connections | 44(4*11) |
| Module dimension | 1450*540*3mm |
| Weight | 3.4KG |

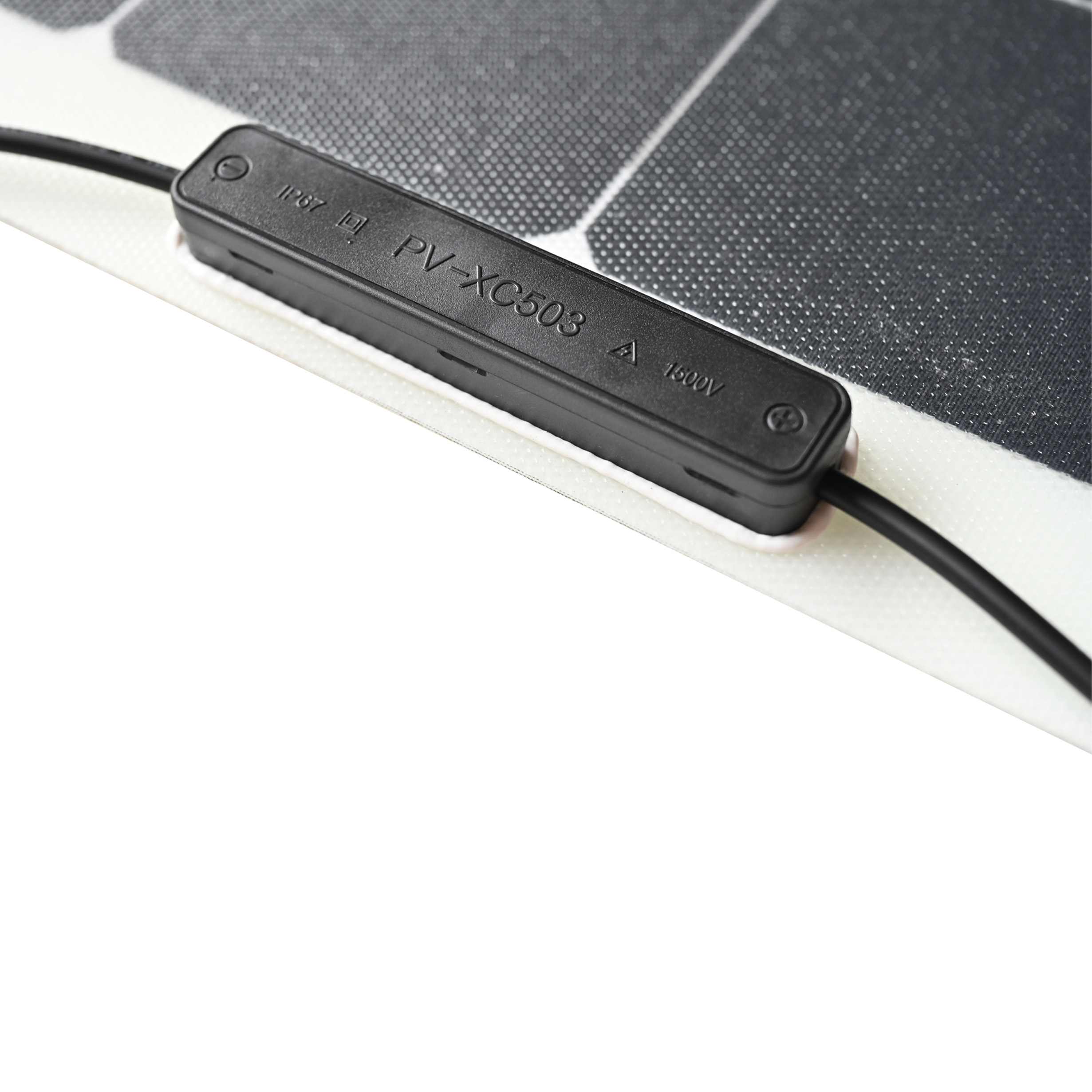

| Output cable | JB (2*bybass diodes) + 900mm/4mm2 cable + MC4 compatible |
| Waterproof junction box | IP68 |
| Certifications | CE, ROHS |
| Maximum bending arch height | 270mm |
Features
• Stronger impact resistance.
• Ultra-light
• Glass-free
• Only 3mm thick
• Has passed PID, salt mist and ammonia corrosion tests
Warranty
2-Year
