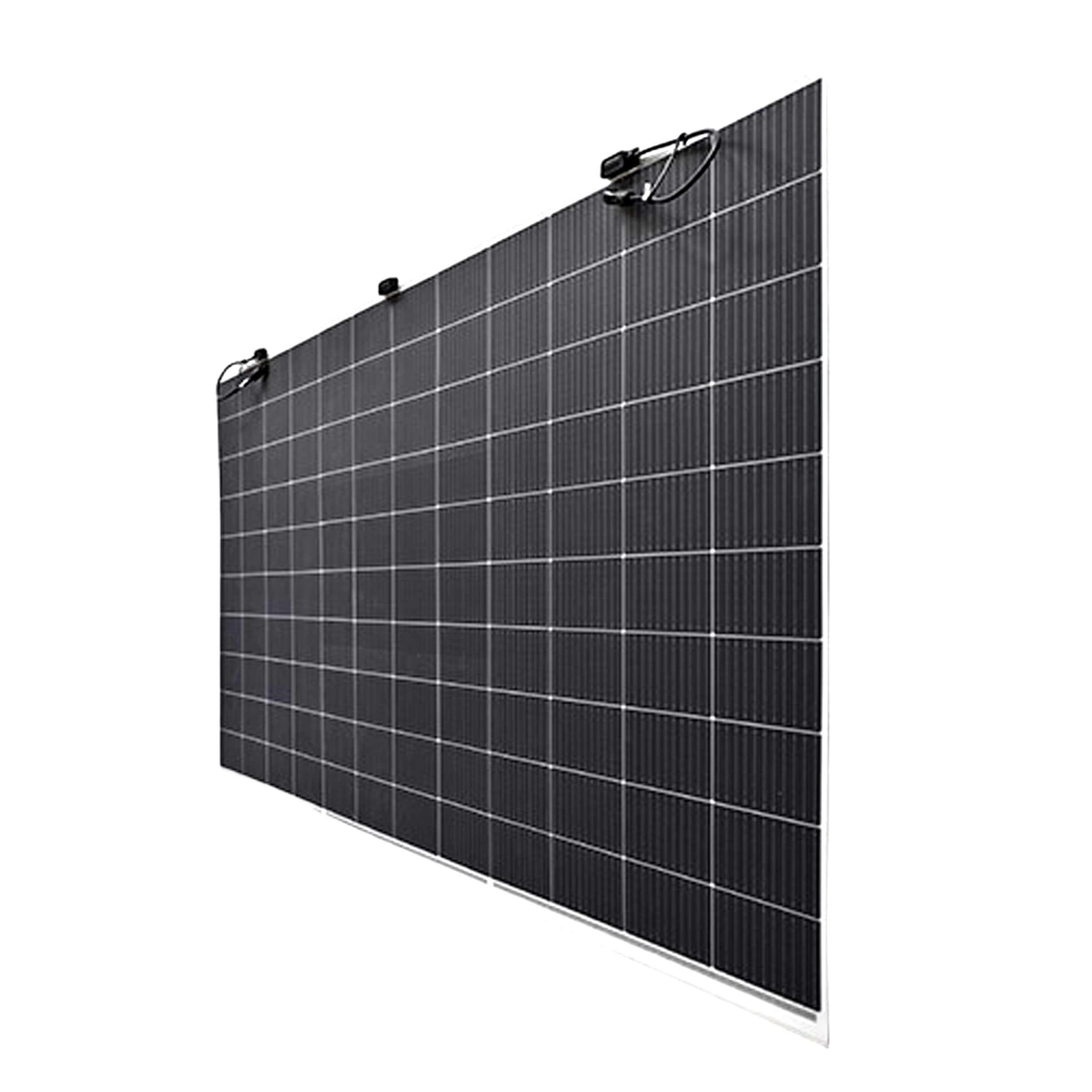

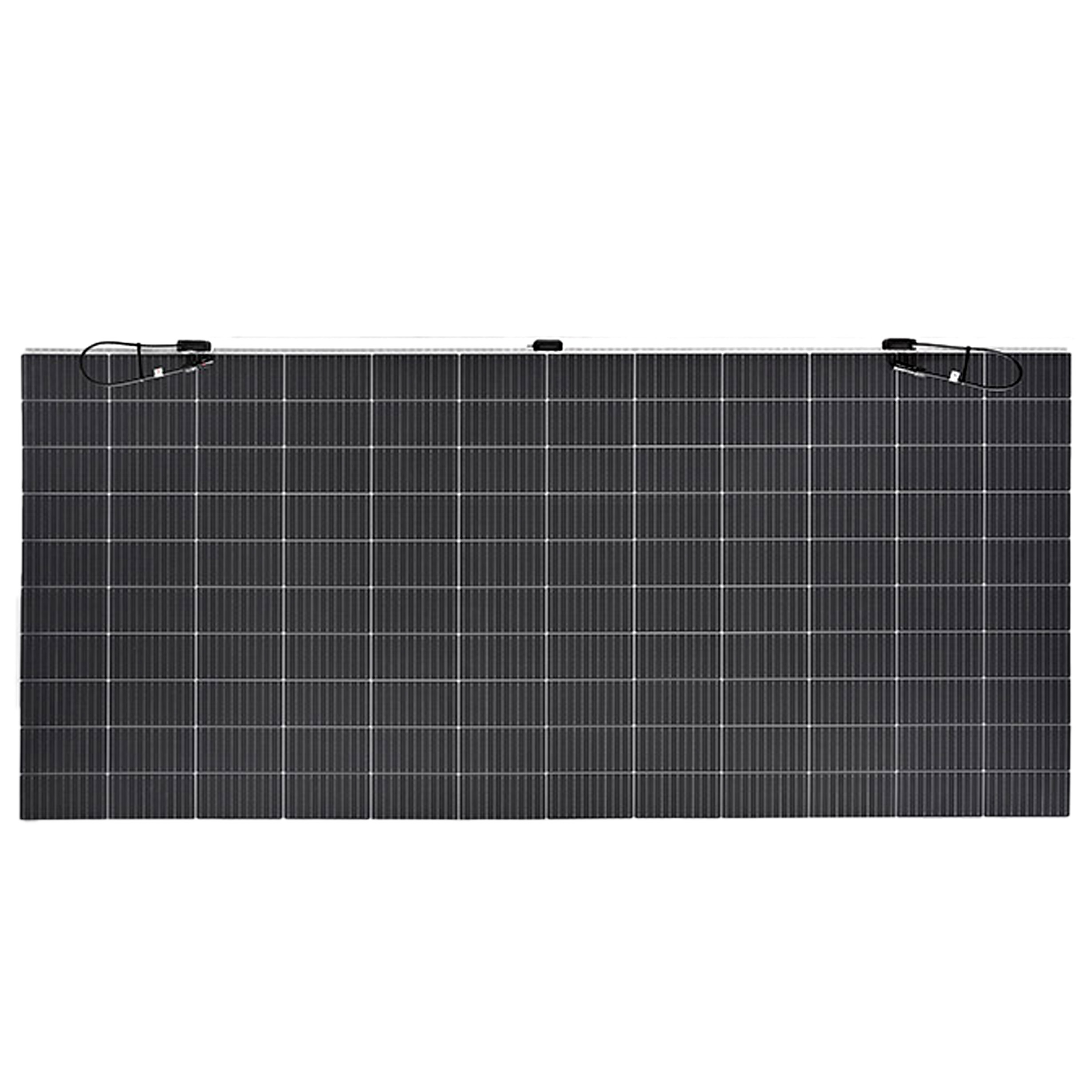

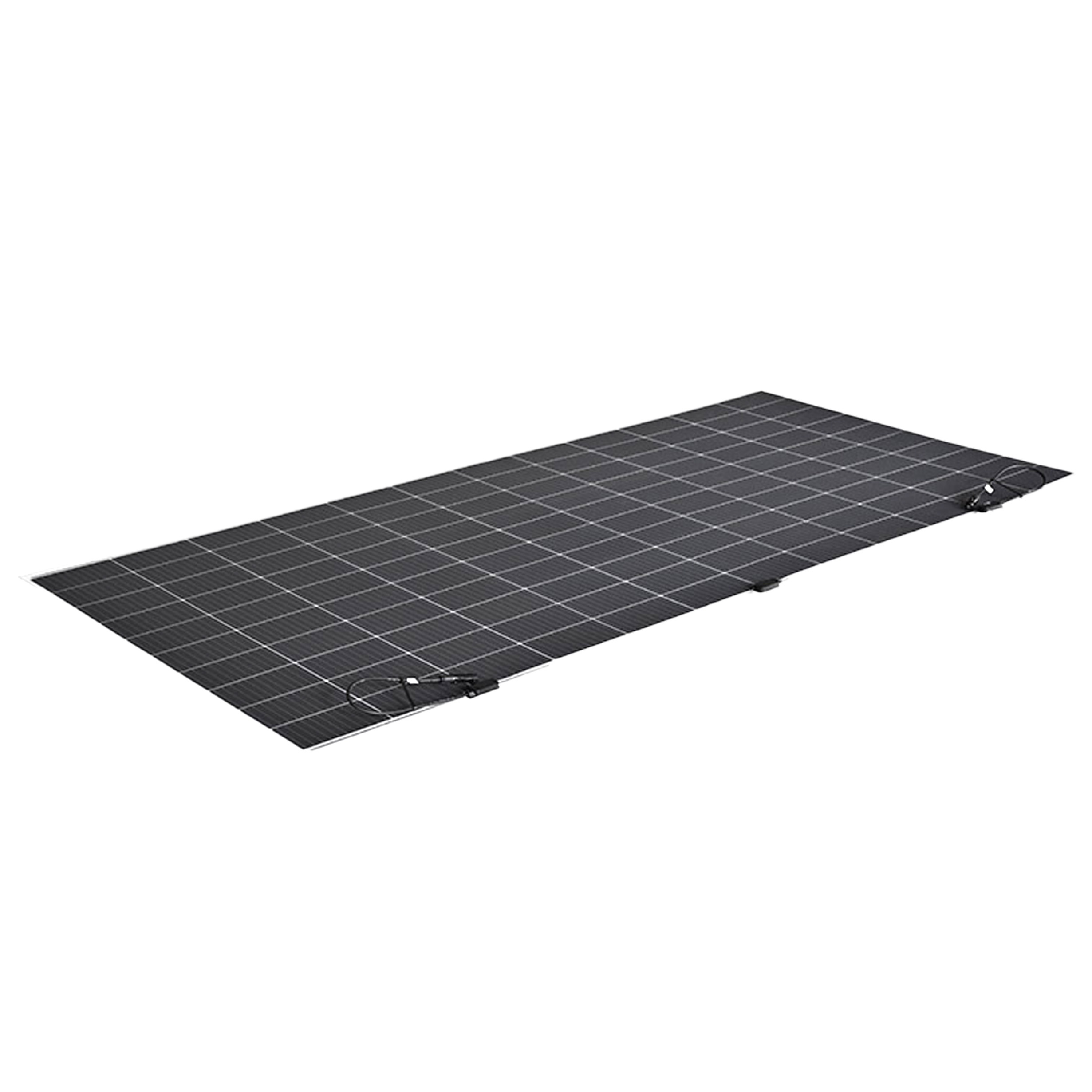

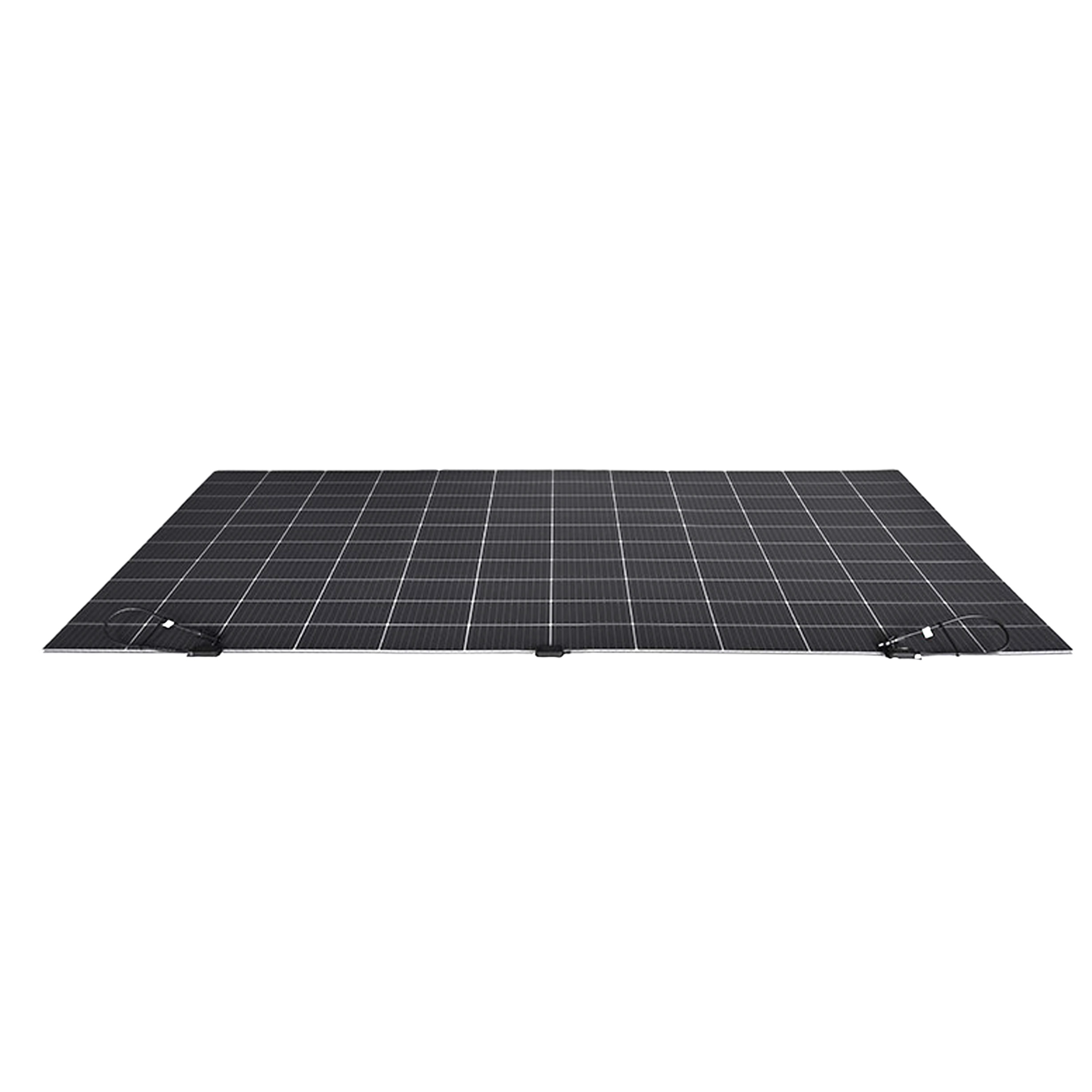

CS High Efficient Flexible Solar Panel 325W
R5,068.70(Excl.Vat)

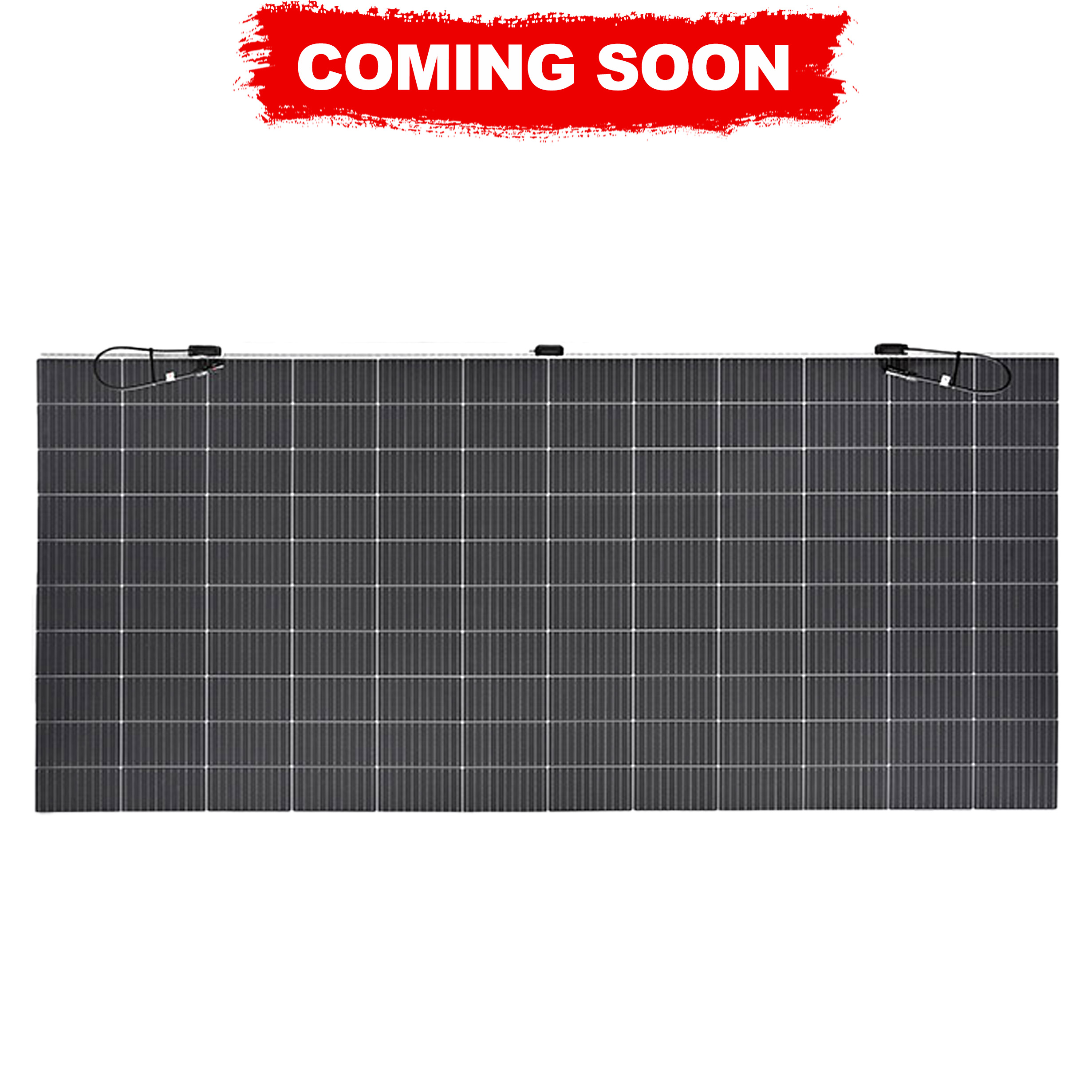

Coming Soon

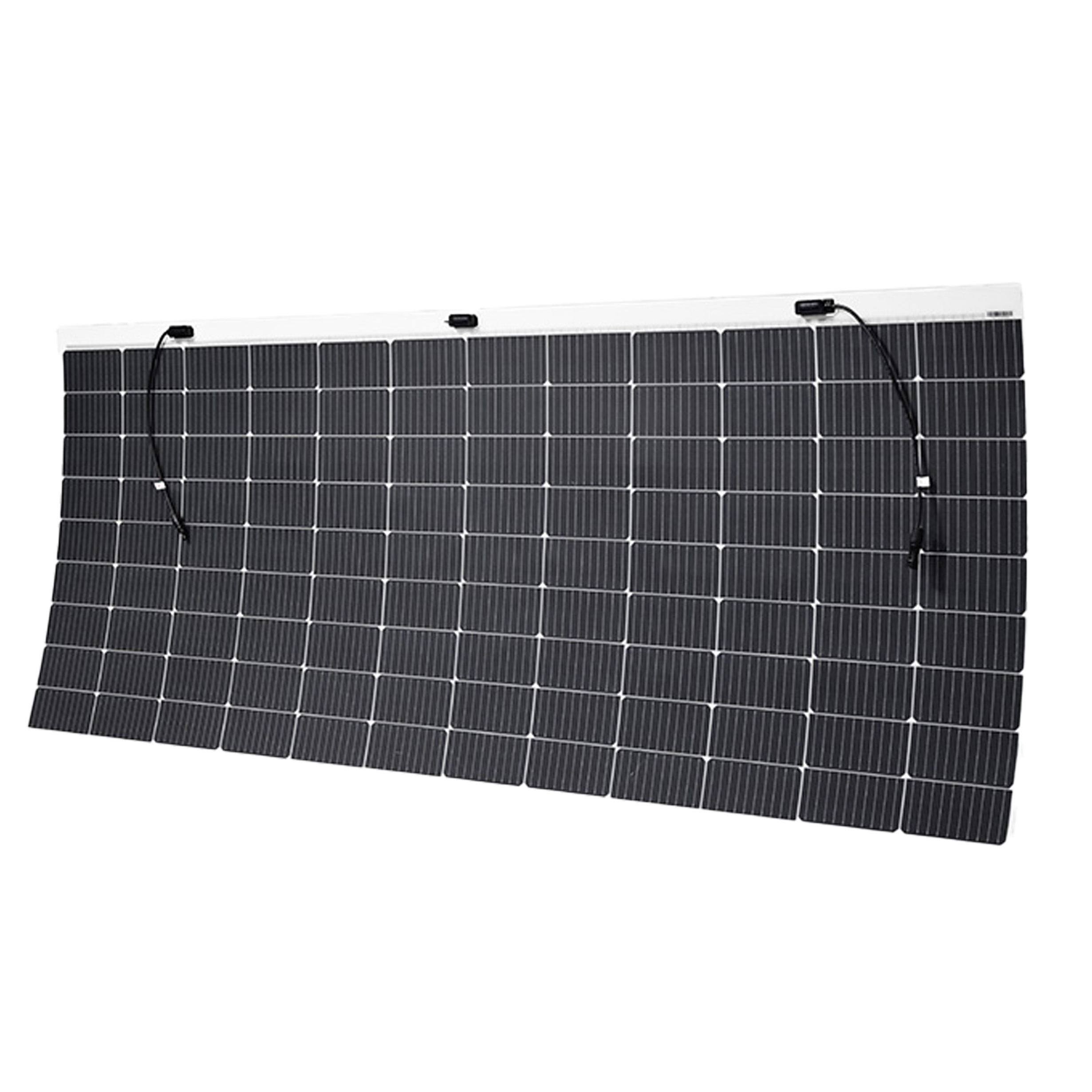

• Flexible & Bendable Design
• Ultra-lightweight
• High Conversion Efficiency
• Advanced Material & Crack Resistance
• Superior Durability & Weather Resistance
• Excellent Fire Safety
The FSP325 flexible solar panel uses advanced crack-resistant composite materials and a unique encapsulation process, reducing weight by over 65% compared to traditional glass modules. Ideal for applications with limited load capacity, it remains intact without cracking, even under extreme weather conditions such as hail.
Featuring a Class C flame-retardant rating for enhanced safety, its anti-glare, 2H scratch-resistant surface helps prevent light pollution and extends its lifespan.
TECHNICAL SPECS
| Maximum Power (PMAX) | 325W |
| Open Circuit Voltage (VOC) | 31.5V |
| Voltage at PMAX (VMP) | 27.9V |
| Short Circuit Current (ISC) | 12.23A |
| Current at PMAX (IMP) | 11.65A |
| Cells Efficiency | 25% |
| The Maximum System Voltage | 1500V DC(IEC) |
| Power Temperature Coefficient | -0.32%/℃ |
| Voltage Temperature Coefficient | -0.26%/℃ |
| Current Temperature Coefficient | 0.46%/°C |
| Output Power Tolerance | ±5% |
| Operating Temperature | -40℃~+85℃ |

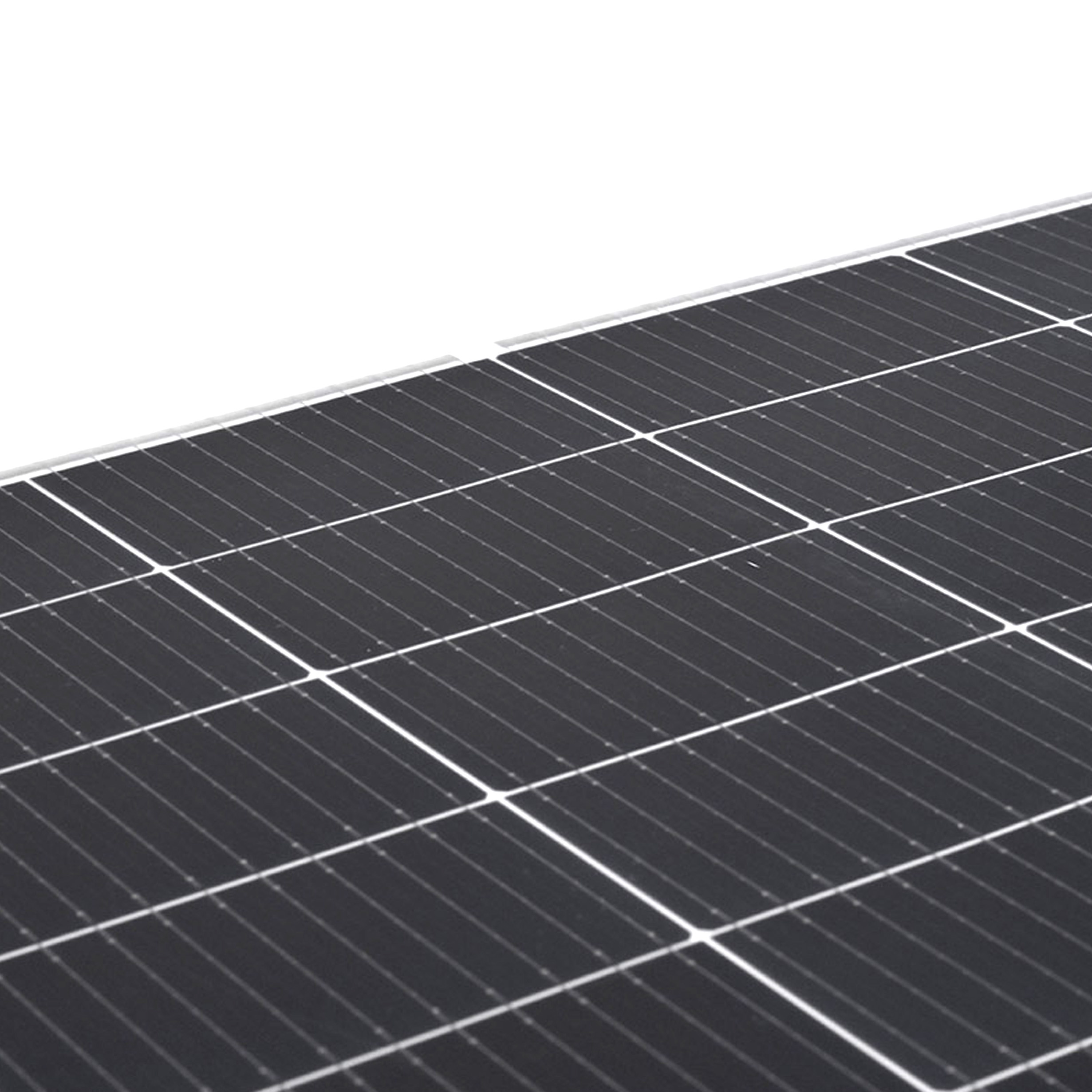

| Solar cell brand | A grade Mono 182 Topcon Solar Cells |
| No.of cells and connections | 88(8*11) |

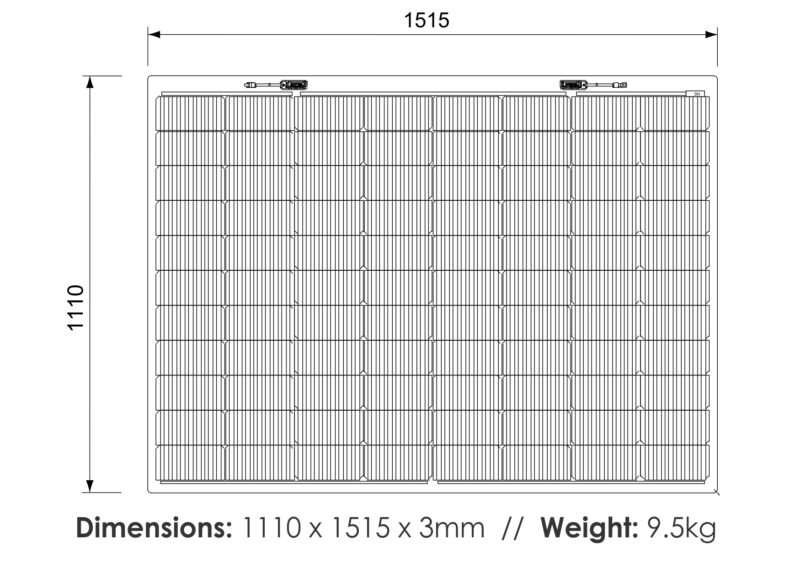

| Module dimension | 1515*1110*3mm |
| Weight | 9.5KG |

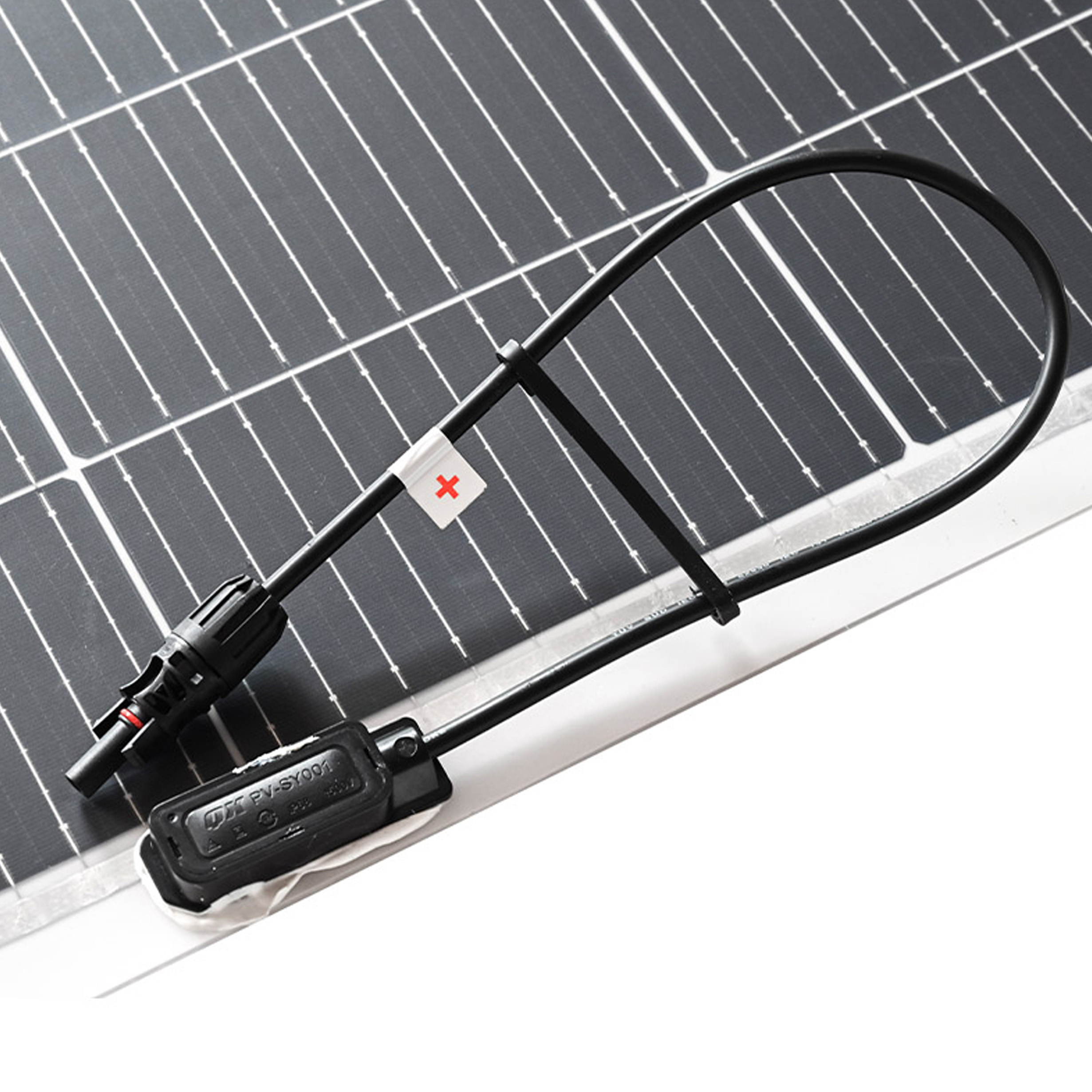

| Output cable | JB (2*bybass diodes) + 500mm/4mm2 cable |
| Waterproof junction box | IP67 |
| Certifications | CE, ROHS, TUV |

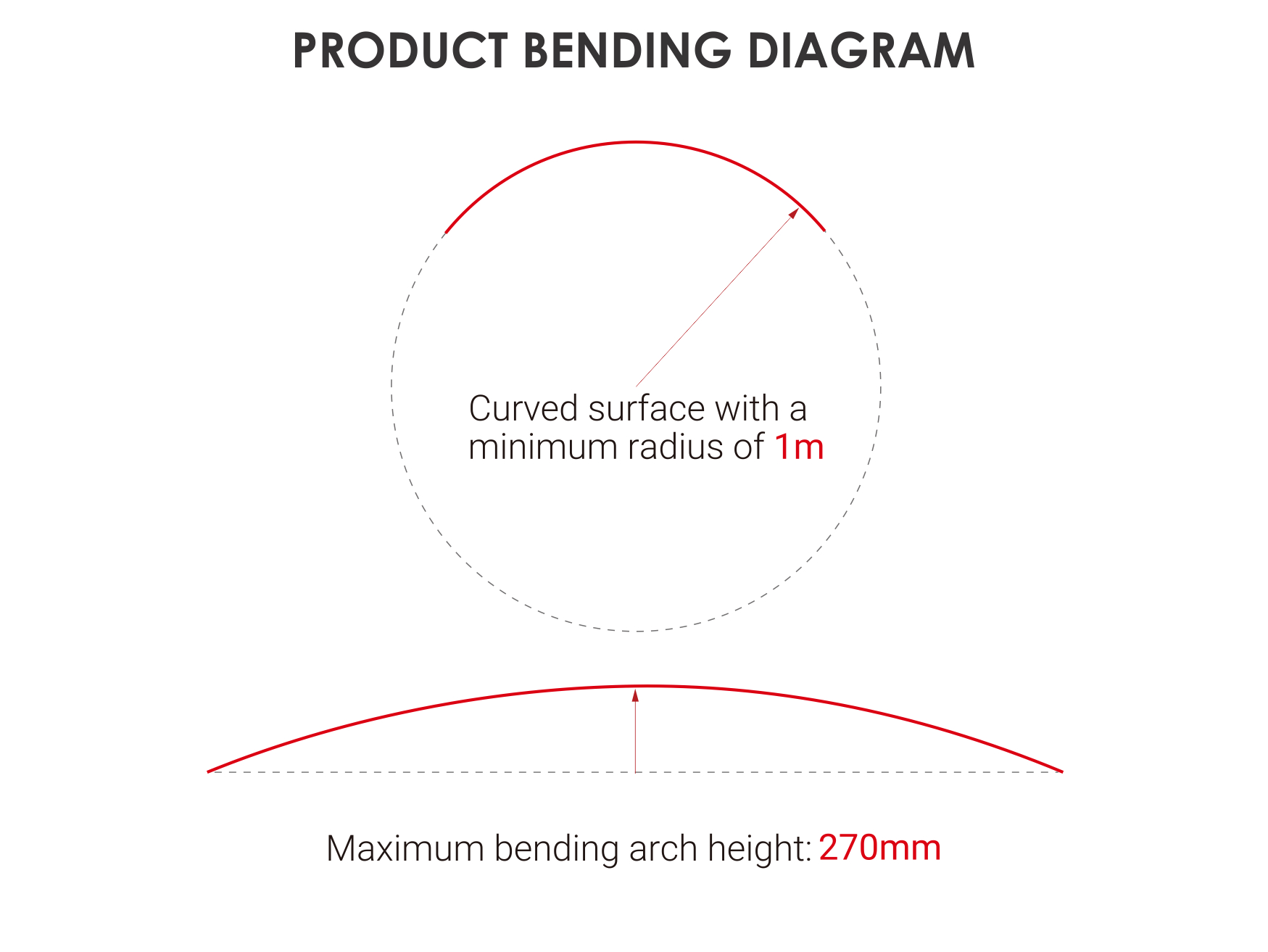

| Maximum bending arch height | 270mm |
