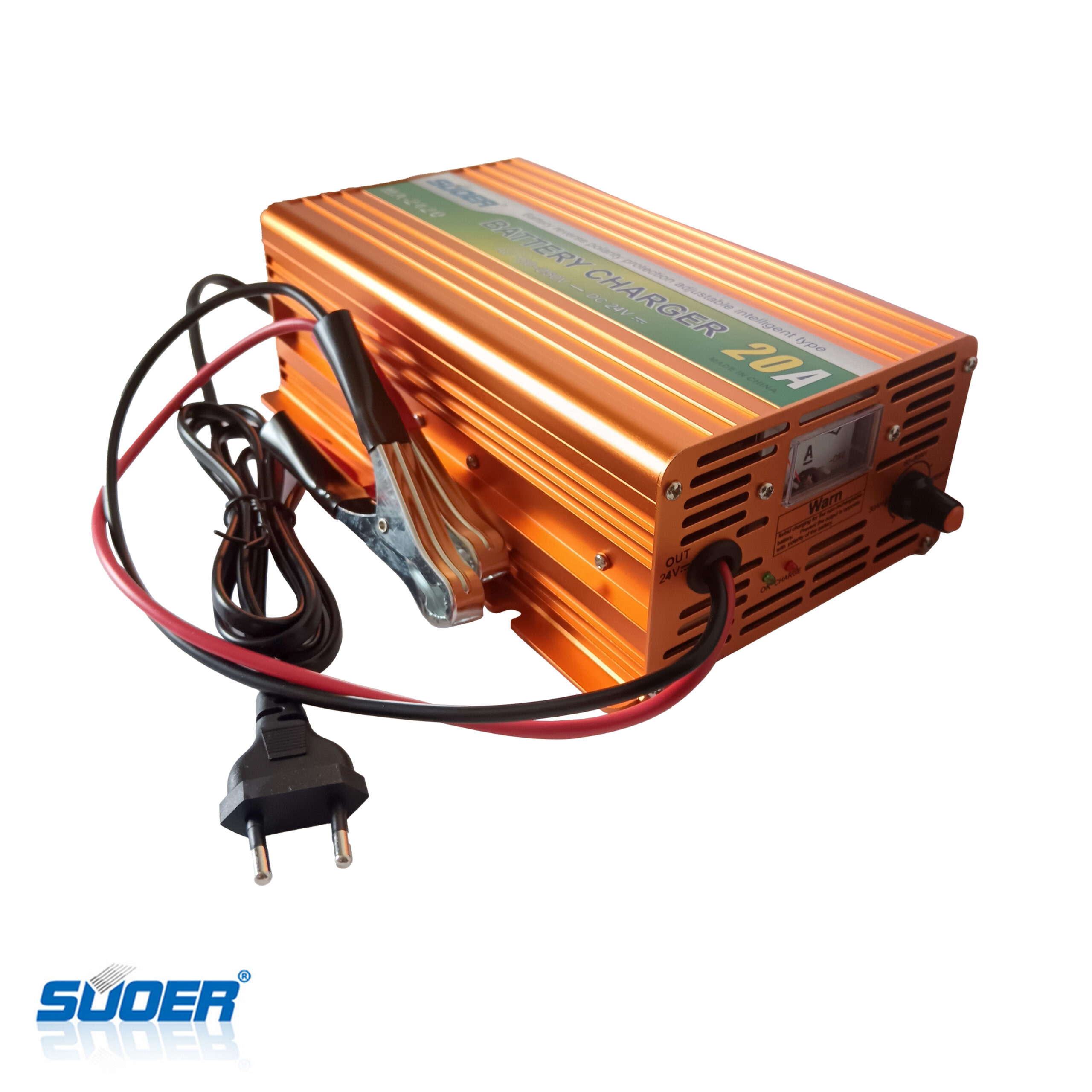

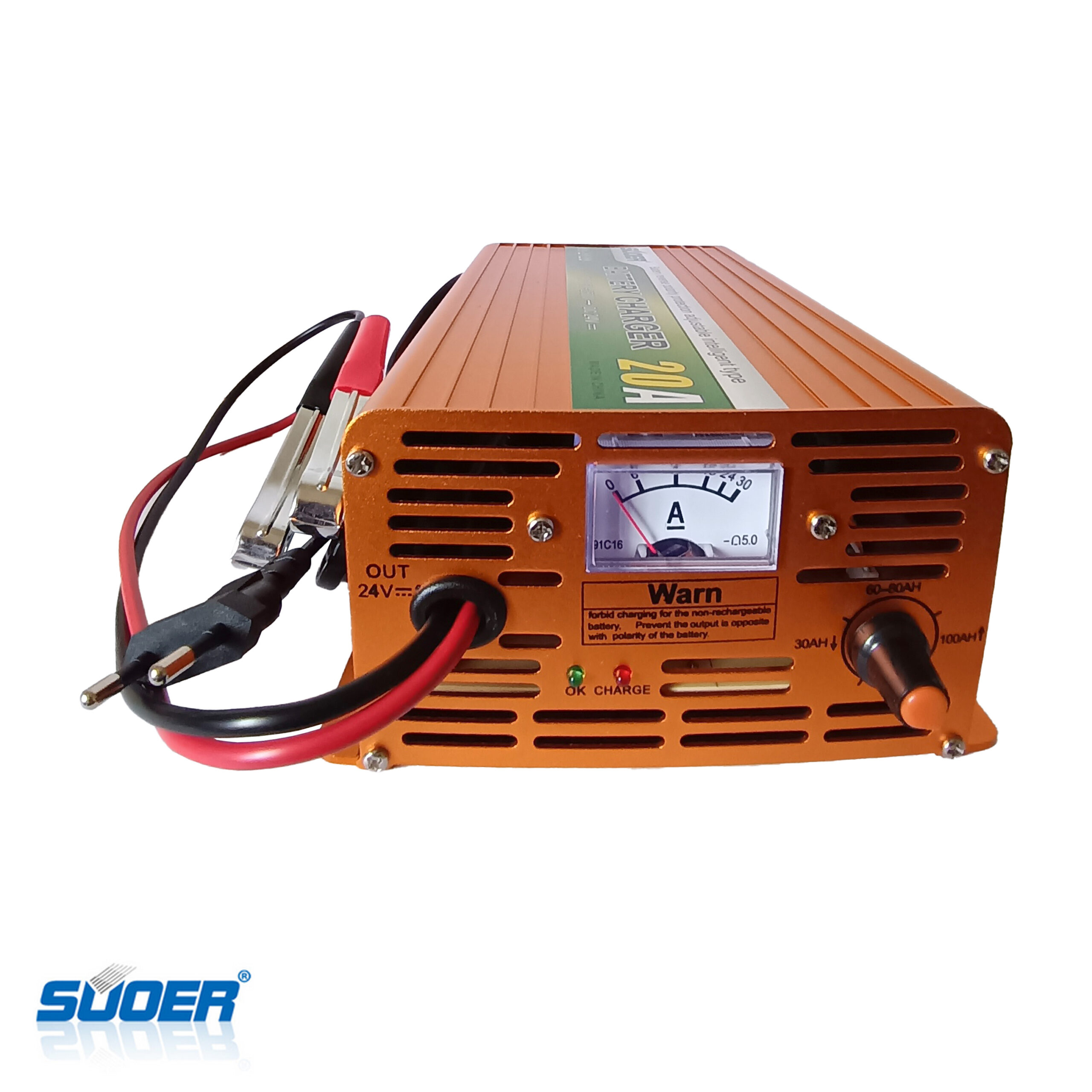

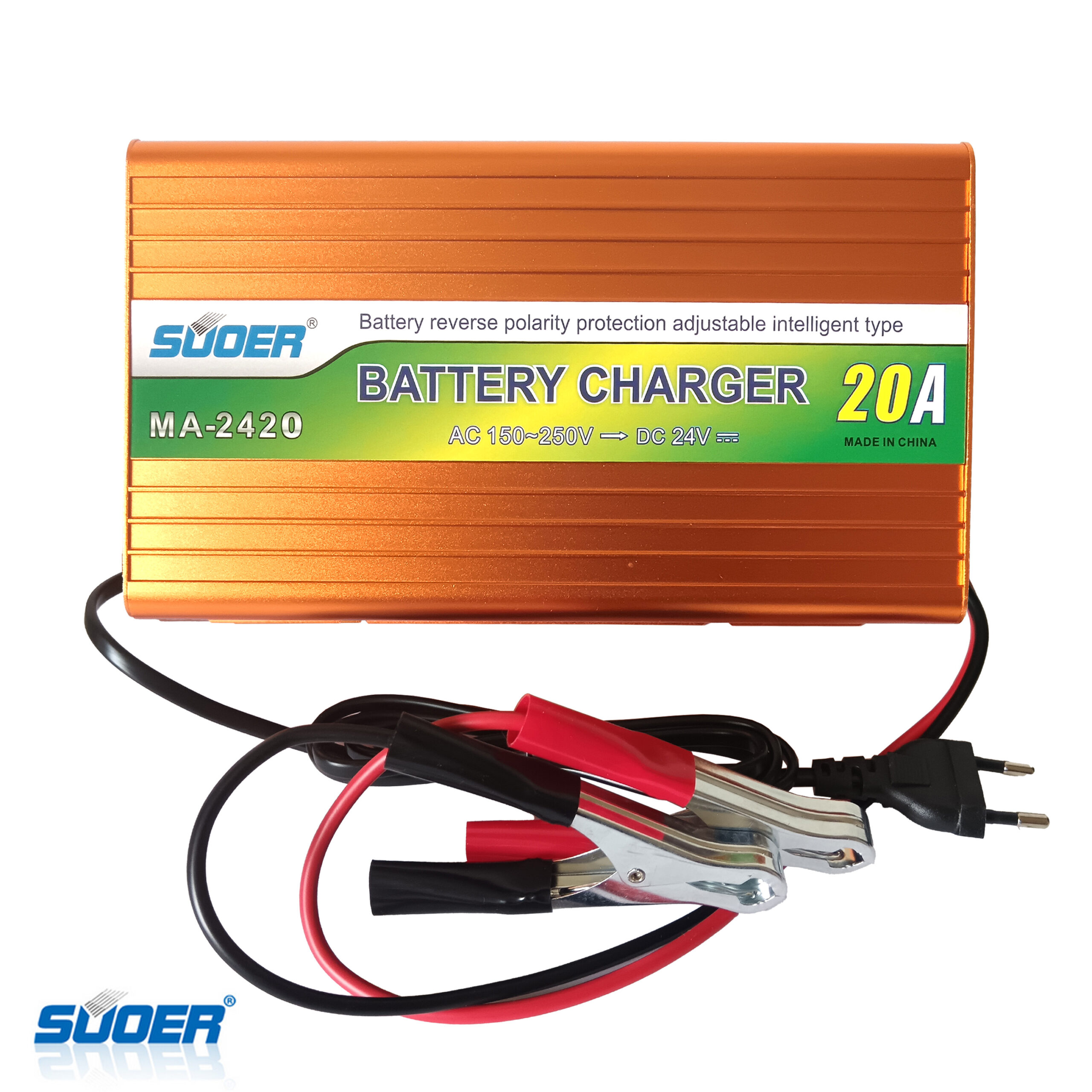

24V 20A AGM/GEL 3-phase Intelligent Battery Charger
R1,440.00(Excl.Vat)
In Stock | Ships in one business day | FREE DELIVERY
• Reverse Polarity Protection
• Short-Circuit Safeguards
• 3-phase battery charger
• Stable motherboard
• Quiet charging
Ideal for 24V AGM and GEL Lead-Acid applications.
Month Warranty
▼Additional product information & Specifications available below▼
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |
The Suoer MA-2420 is an intelligent, high-efficiency fast charger engineered for reliable 24V power management. Built with a durable metal housing that offers excellent heat dissipation and integrated temperature control, this unit provides a stable, safe output for optimal battery performance. Operating on an advanced three-phase charging cycle, it dynamically balances constant current and constant voltage to deliver a precise charge while safely protecting against overcharging.
INTELLIGENT BATTERY CHARGER FEATURES
• Stable motherboard
• Temperature control
• Efficiency >90%: The high efficiency of over 90% ensures minimal energy loss, reducing operational costs and improving overall system performance.
THREE-PHASE CHARGING
Three-phase charging provides a more stable and efficient power supply, suitable for demanding applications and ensuring consistent battery charging.
• Contant current: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
• Constant voltage: Using the pulse width modulation (PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
• Floating Charge (Trickle Maintenance) Mode: drastically reduces current output once the battery is full.
Technical Specs
| Input Voltage | 180V-250V AC, 47-63Hz |
| Output Current | 20A |
| Output Voltage | 24V DC |
| Battery Type | AGM/GEL |
| Protections | Reverse polarity |
| Overheat | |
| low pressure |
|
| short circuit | |
| Continuous Voltage | 220V±10% |
| Weight | 1.3KG |
| Dimensions (mm) (box) | 320 X150 X 90 |
Videos
DOWNLOADS
FAQs
Frequently asked questions
Can I use the MA-2420 charger to charge 24V Lithium (LiFePO4) batteries?
No, this specific charger is strictly engineered for 24V AGM and GEL lead-acid batteries. It utilizes a fixed three-phase charging curve (Constant Current, Constant Voltage, Floating Charge) optimized for lead-acid chemistry.
Does the cooling fan run continuously while the battery is connected?

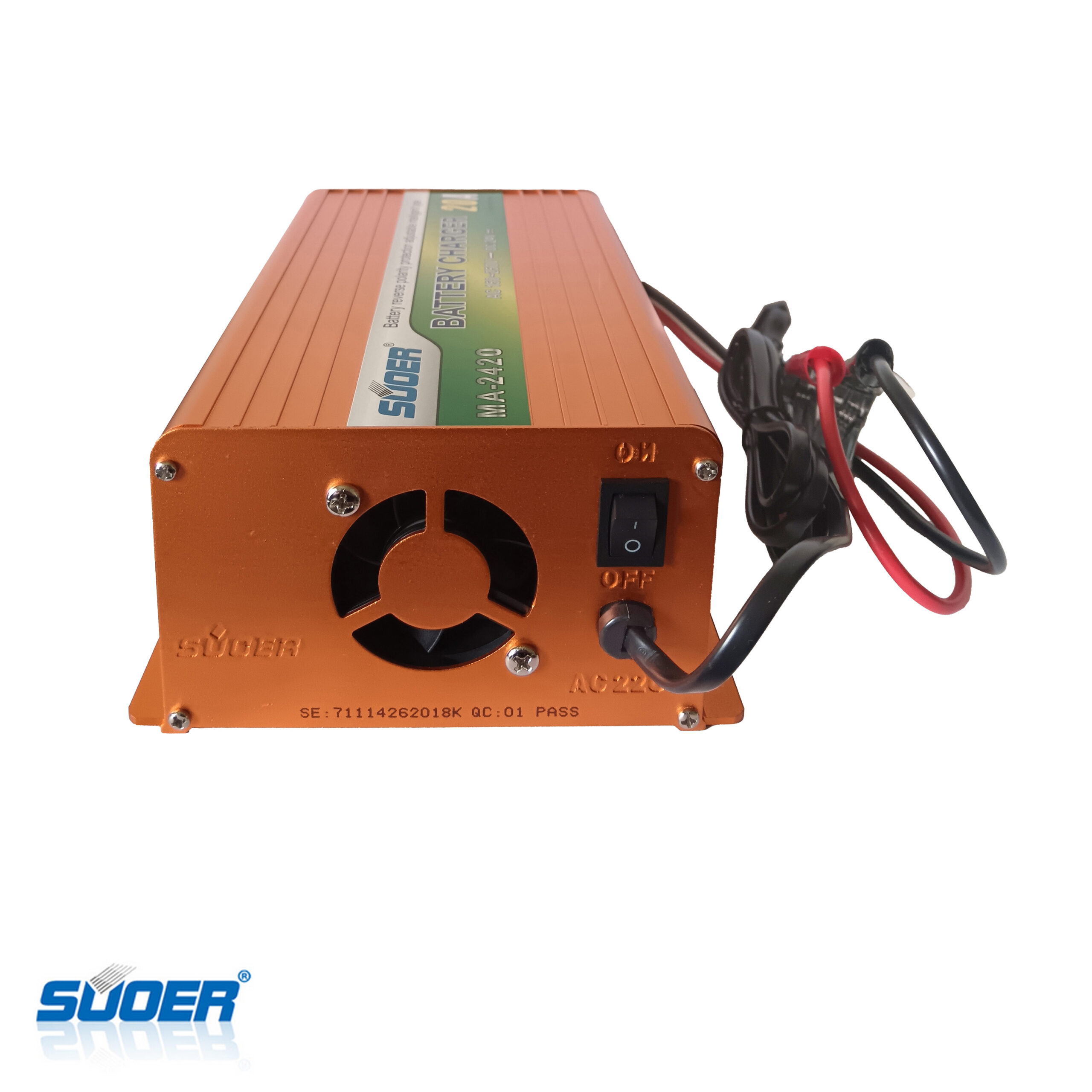

No, the cooling fan is automated based on the charging cycle. The fan will spin actively during the high-current Constant Current and Constant Voltage stages to dissipate heat through the heavy-duty metal chassis.
Can I leave the charger connected to the battery once the green light is on?
Yes, once the green light turns on, the charger enters float mode to add the final 95%–100% capacity. Please see instruction manual – you should leave the battery connected to the charger for two or three hours to ensure optimal battery storage function.

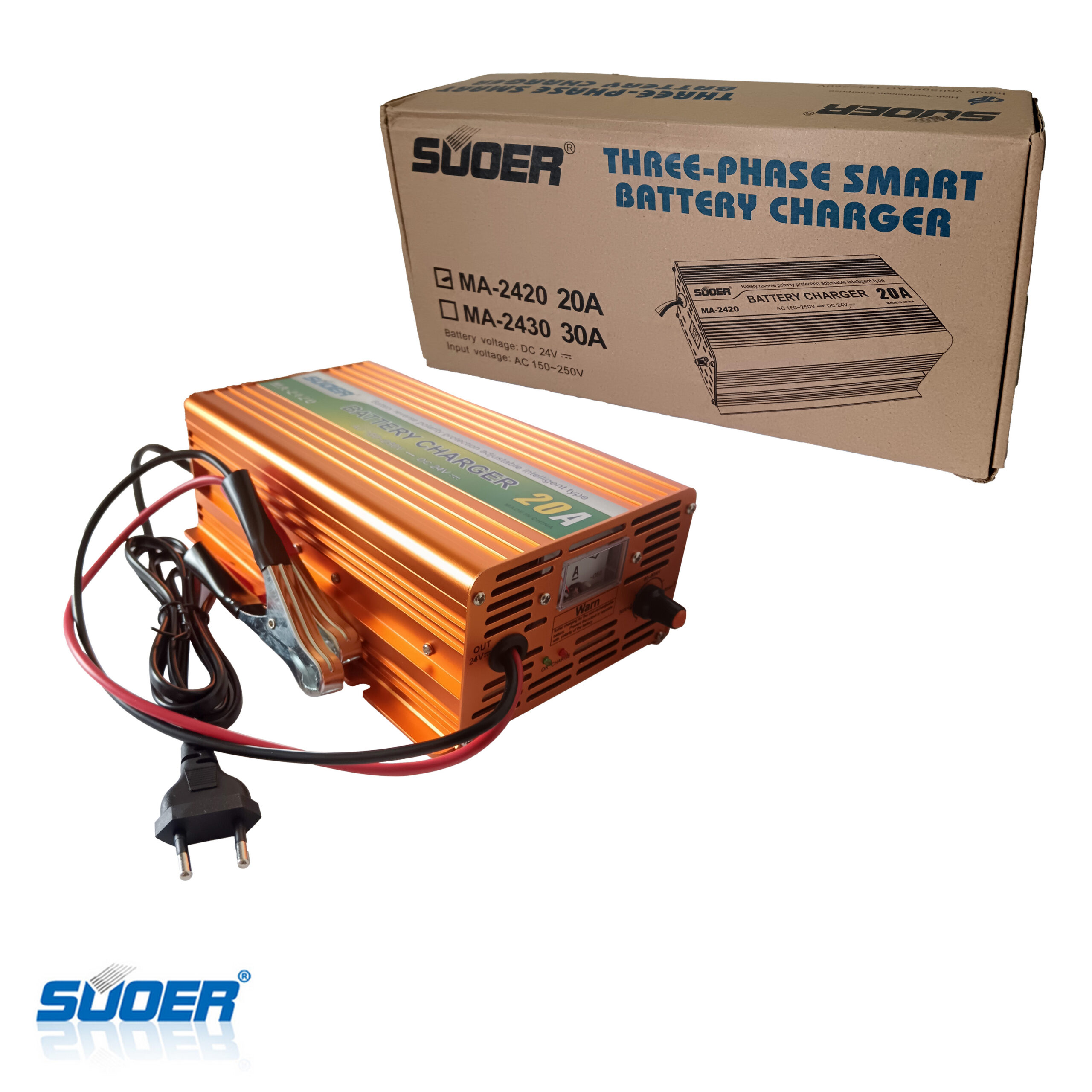

What's in the box
• 1x Suoer MA-2420 Unit (with built-in heavy-duty battery clamps and attached AC power plug
• 1x User Manual
