CS Battery Monitor 8-120V Max 75A
R1,489.57(Excl.Vat)
In Stock | Ships in one business day | FREE DELIVERY
• Low Power Consumption (standby power <10mA)
• Reverse protection
• LED Backlight screen
• Max 120V
Ideal for electric vehicles, various battery packs and emergency power supplies from 8V to 120V.
Year Warranty
▼Additional product information & Specifications available below▼
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |

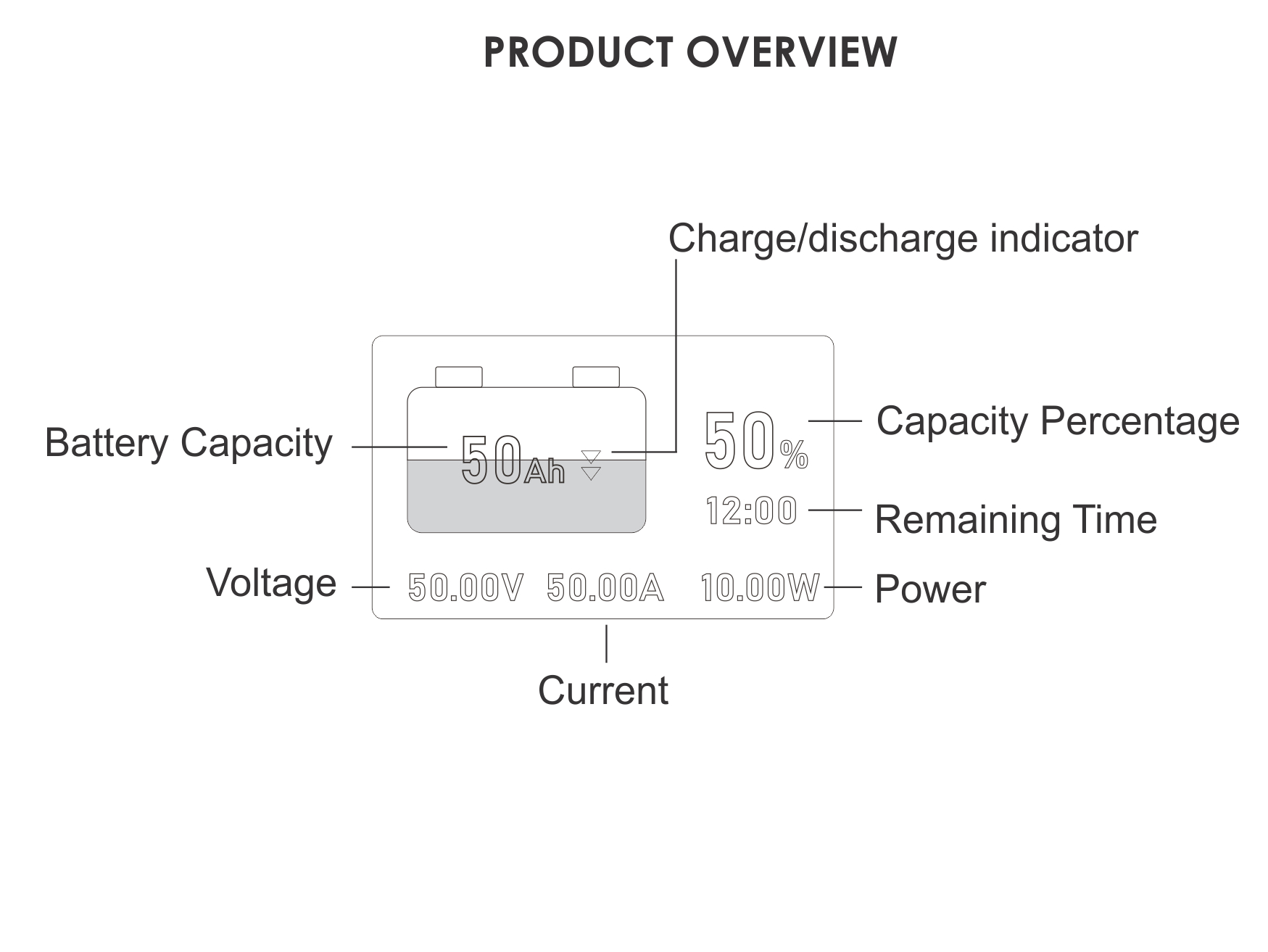

Our BM75 is a high-precision, high-stability, high-current battery power meter also called Coulometer. It can accurately detect the voltage, current power, real capacity and remaining time of the battery. The working status of the battery is obtained accurately at any time.
The BM75 battery capacity monitor is a great complement to any solar system, the battery voltage monitor is capable of monitoring the strength of the current flowing out of the battery pack and gives an accurate state-of-charge reading. The shunt battery monitor can immediately improve the overall performance and longevity of your battery pack.
75A BATTERY MONITOR FEATURES
- Low power consumption
- Standby power <10mA
- Output over voltage protection
- Output over current protection
- Output short-circuit protection
- Reverse polarity protection
- Charger over temperature protection
- Forced ventilation with fans
- Suitable for lithium iron phosphate, lead acid and other battery packs with voltages
 |
 |
 |
Technical Specs
| Working Voltage | 8V-120V |
| Working Consumption | 12mA |
| Static Consumption | 2mA |
| Accuracy of Voltage Collecting | ±1% |
| Accuracy of Current Collecting | ±1% |
| Accuracy of Capacity Collecting | ±1% |
| Backlight on Current 75A | 75mA |
| Backlight on Current <75A | 150mA |
| Setting Value of Capacity | 0.1-9999 Ah |
| Temperature Range | -10-60°C |
| Weight | 210g |

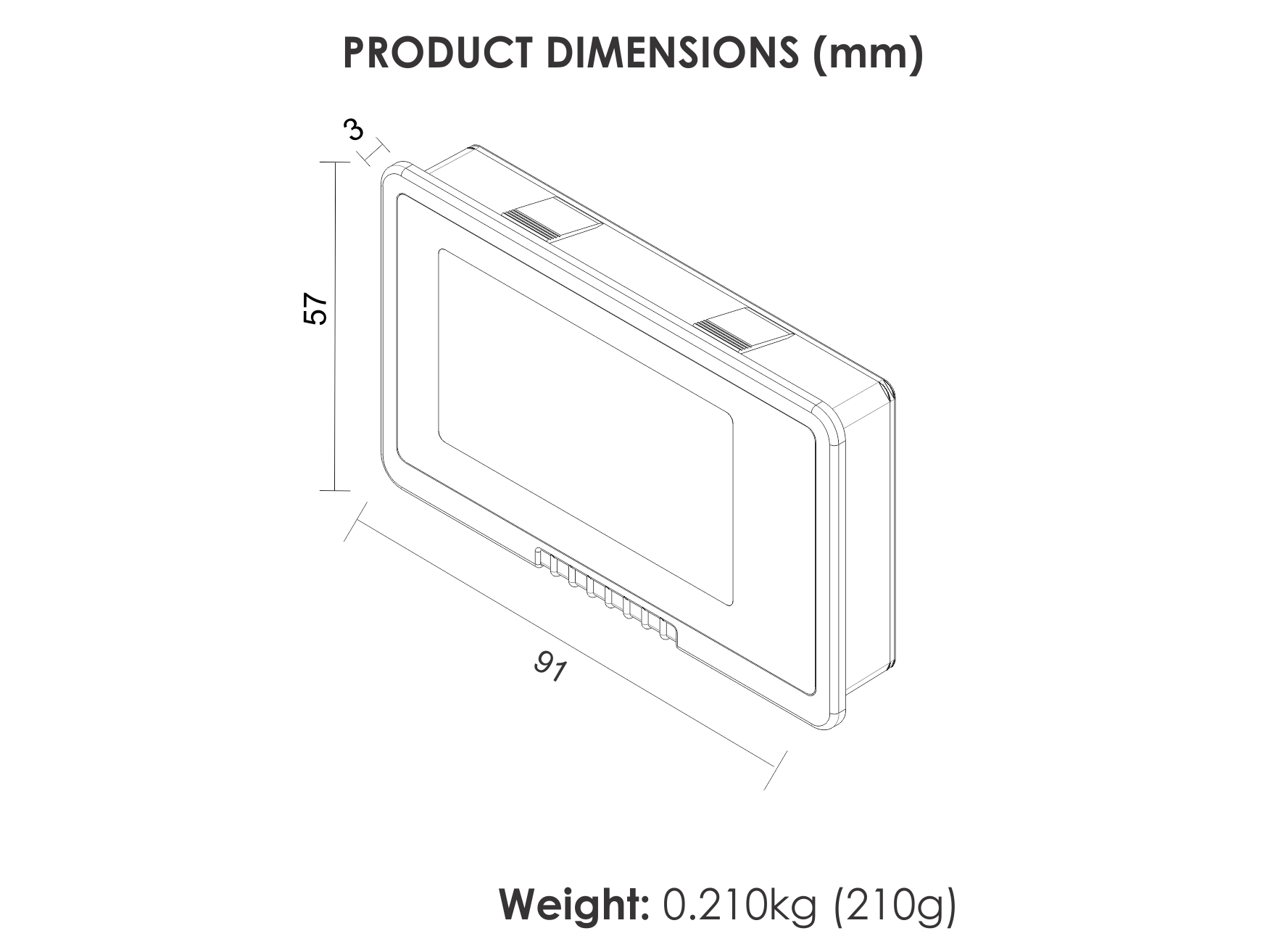

| Size – external | 57x91x15mm |
DOWNLOADS

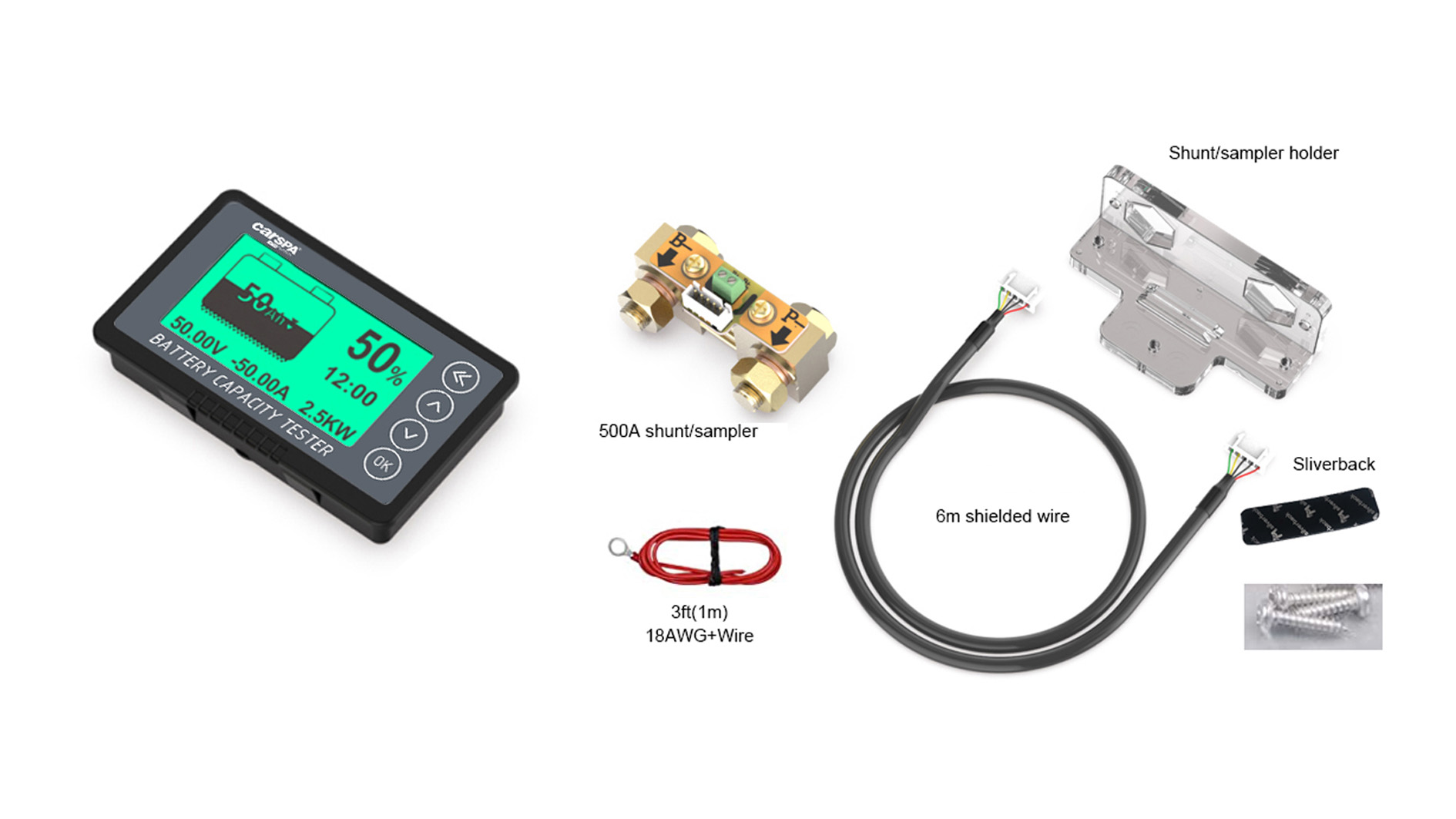

What's in the box
1x Battery monitor unit
1x 75A shunt with screws
1x 6m connecting cable
1x 1m connecting cable
1x Manual
