PROJECTA 12/24V INTELLI-IQ DISPLAY

R2,633.04(Excl.Vat)

In Stock   |   Ships in one business day   |   FREE DELIVERY

• Smart, light and portable
• Automatic Monitoring
• Multiple safety protections
• IP64 Rating
• Restore, maintain and extend your battery’s life
• LCD Display
• Battery Tester
• 6-stage Charging
• 6/12V Lead-Acid 12-120Ah / 14.4V LiFePO4 5–36Ah

Ideal for Motorcycles, passenger cars, 4WDs, RV’s, boats, leisure vehicles and medium-sized batteries.

2 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼




Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

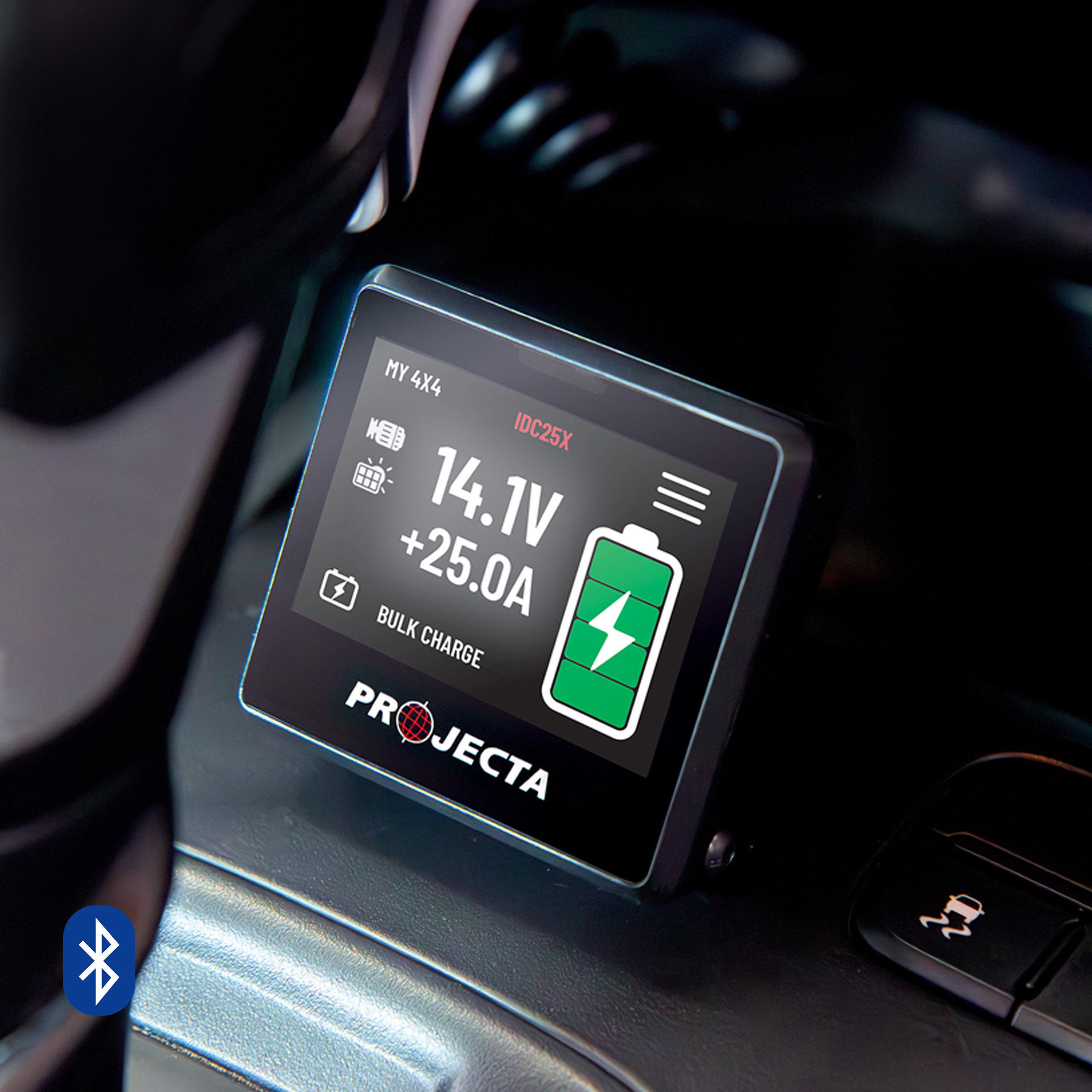

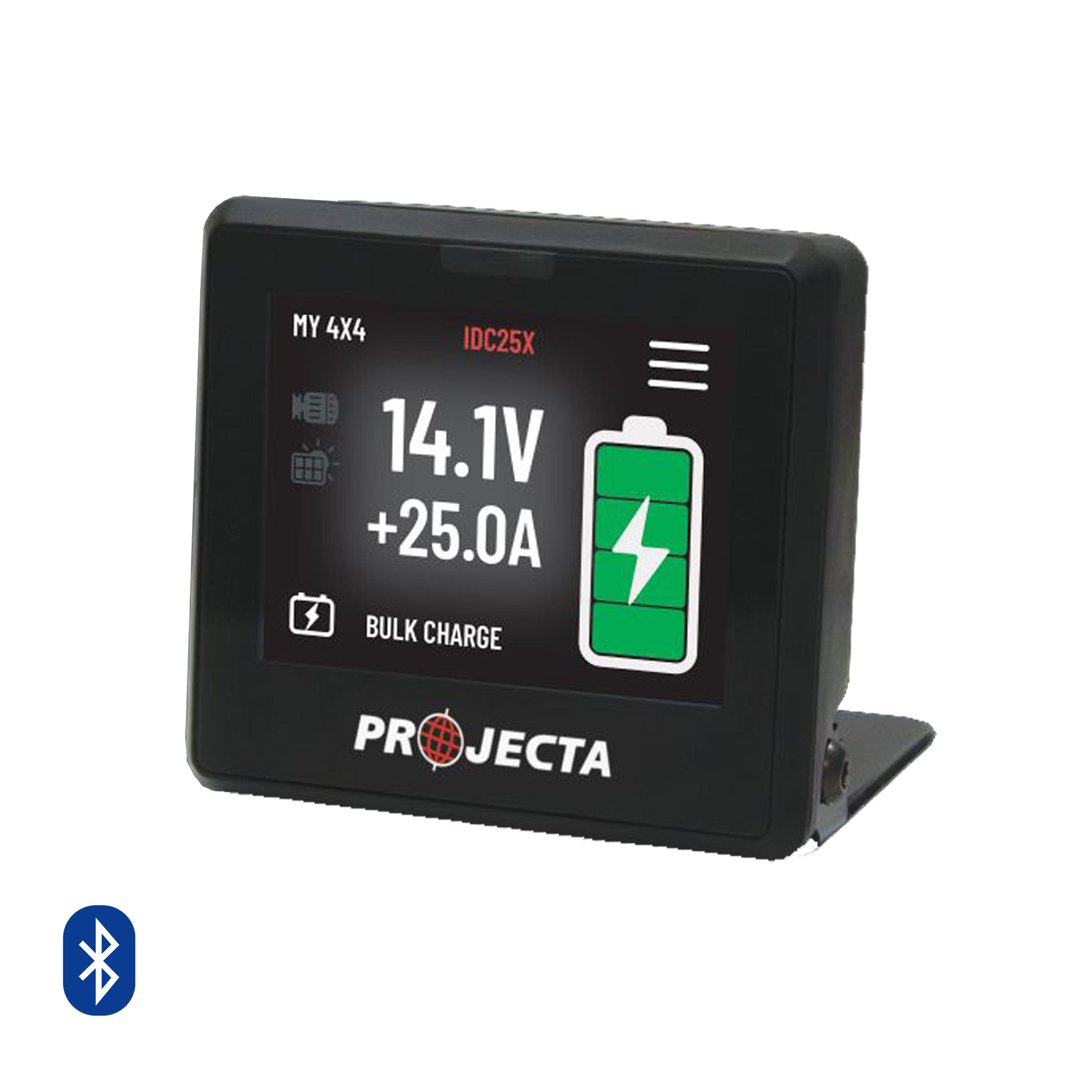

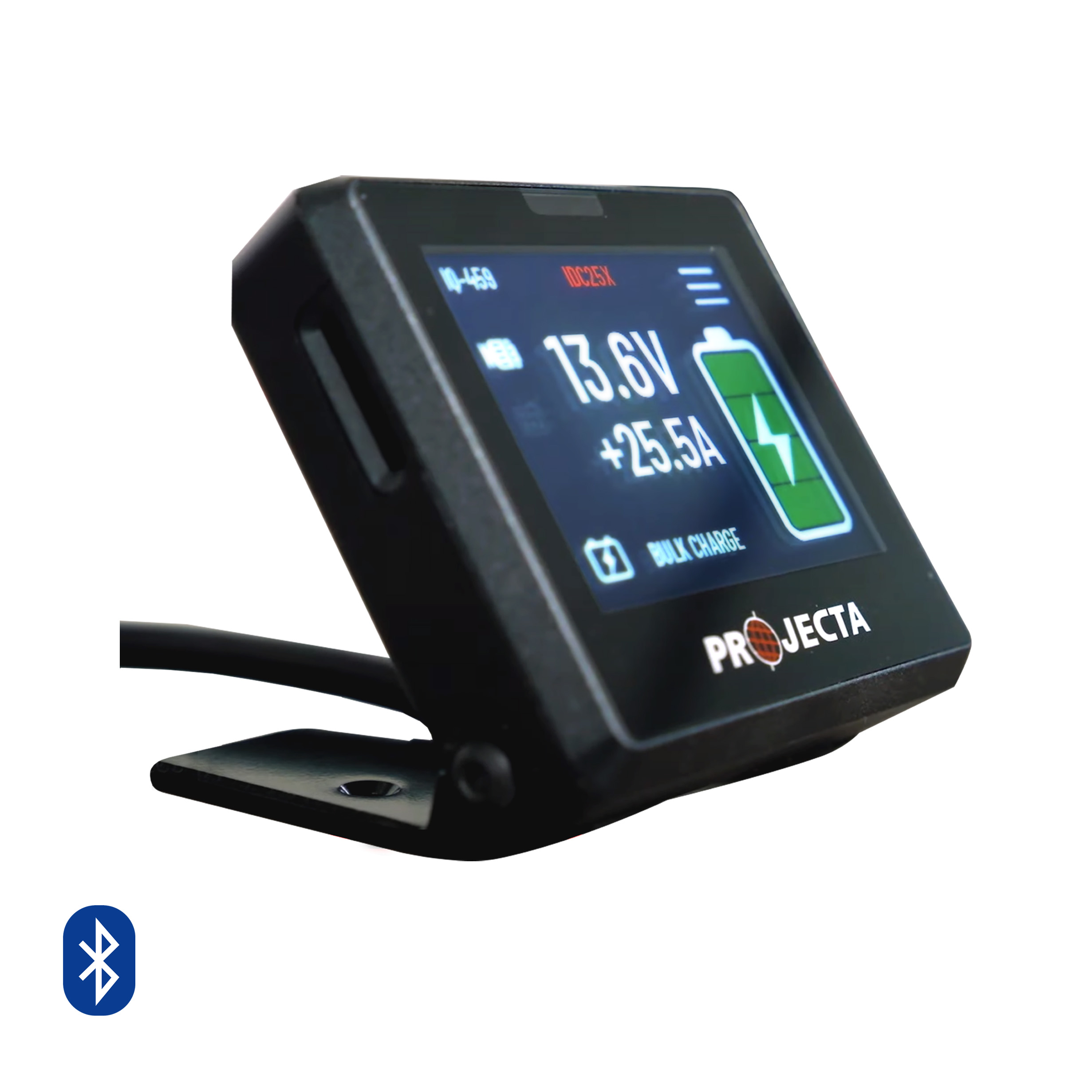

Intelli-IQ is Projecta’s smartest monitor. It can display Start & Aux battery voltage, input/output current, programmable low power disconnects and much more. A compact 2″ display that offers intuitive control over various accessories and IDC25X. Intelli-IQ sophisticated LIN bus design ensures multiple devices can be controlled from one display, simplifying wiring and install. The IDCX is the most advanced DC to DC charger and when coupled with the Intelli-IQ it creates limitless possibilities in controlling devices and accessories connected to the system.

ADVANCED TECHNOLOGY

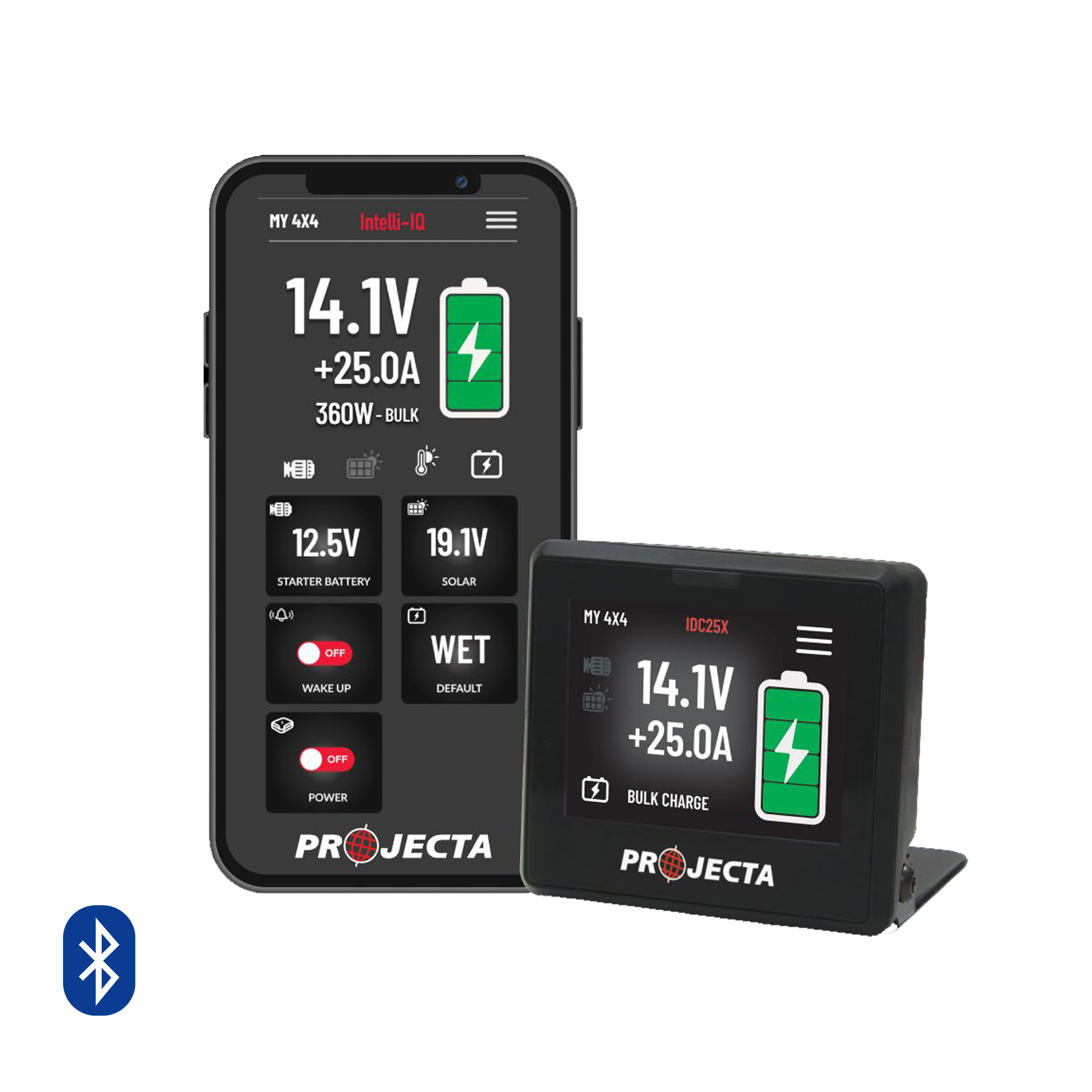

Experience seamless connectivity and advanced control with the IDC25X and Projecta’s all-new Intelli-IQ ecosystem. Once connected via a single wire to a 50mm touchscreen Intelli-IQ Smart Display IQD2, the IDC25X’s full potential is unlocked. You can effortlessly set up, monitor and control the IDC25X from the Intelli-IQ Smart Display or remotely via your Bluetooth® smartphone or tablet paired with the Projecta Intelli-IQ app.

The Intelli-IQ ecosystem gives the ability to adjust various parameters related to battery charge profiles and ensures the IDC25X’s adaptability to accommodate any battery that enters the market, all conveniently controlled through the Smart Display or app. What’s more, the Intelli-IQ ecosystem allows you to stay up-to-date with the latest features and improvements by upgrading the IDC25X’s firmware via the Intelli-IQ Smart Display and your smartphone. Unlike other competitors that require the unit to be returned to the manufacturer for firmware updates, IDC25X can be easily update with just a few taps in the Intelli-IQ app.

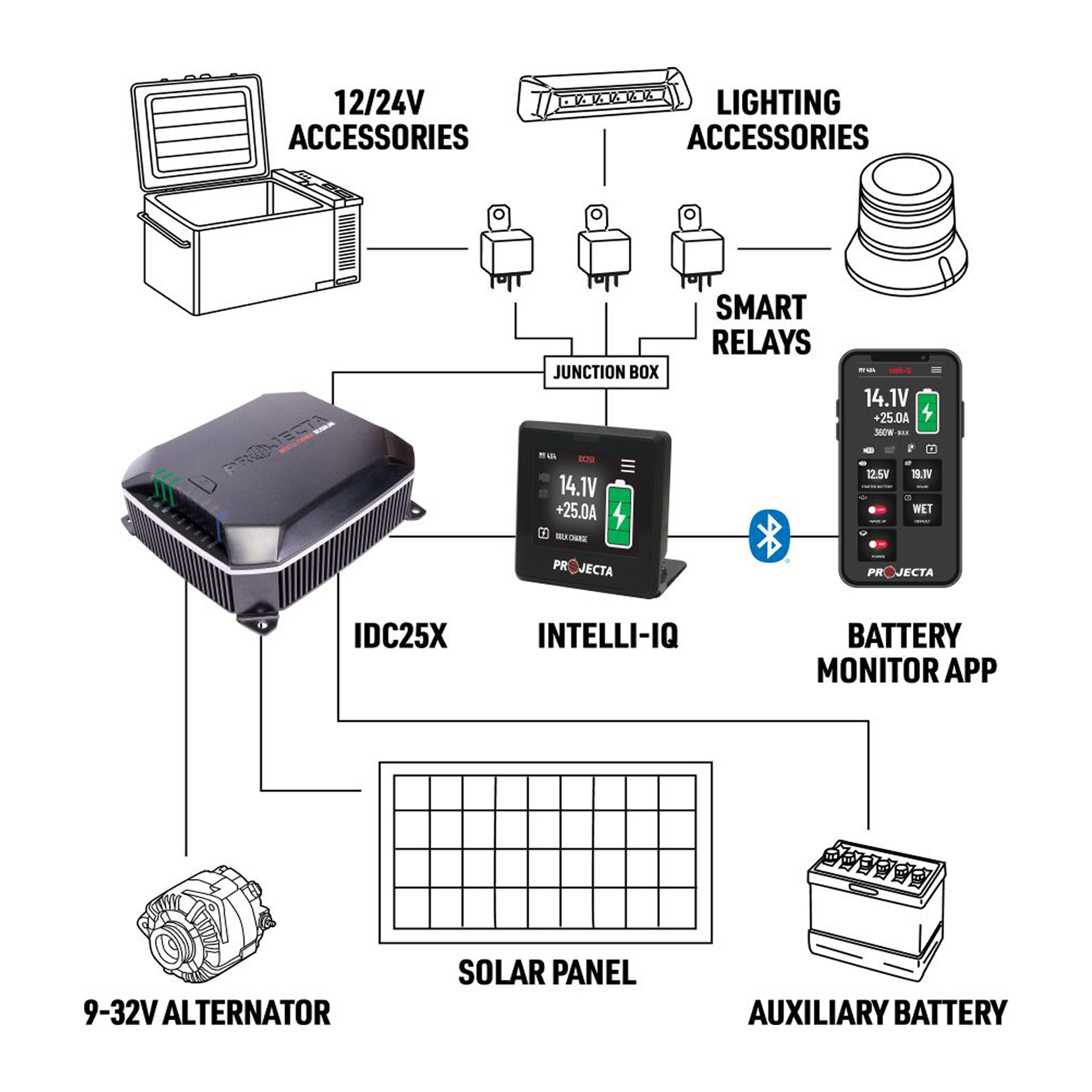

INTELLI-IQ SMART DISPLAY IQD2. The incredible functionality of this display will revolutionise the way Projecta monitors, controls and updates the IDC25X DC-DC Charger – as well as just about any component of a vehicle, camper trailer or caravan setup. The Intelli-IQ Smart Display is the brain of the entire Projecta Internet of Things (IOT) system. It is the link between connected products and is a completely different way of controlling devices. The IOT system can be considered as a portable smart home system, which gives the user total control over the auxiliary 12V system.

INTELLI-IQ LINBUS TECHNOLOGY

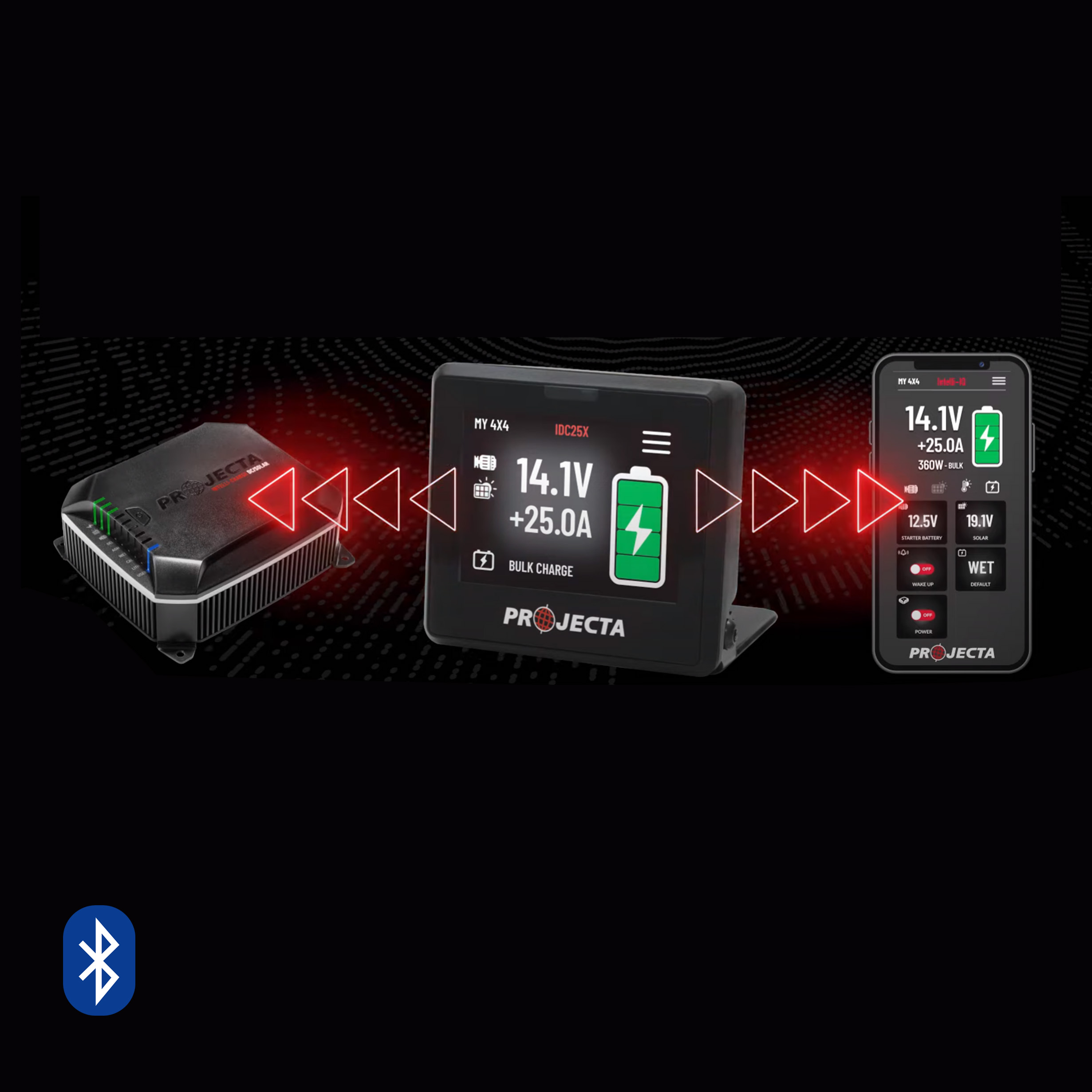

LINbus is the communication protocol most commonly used in the automotive industry. Thanks to LINbus technology, an Intelli-IQ Display adds smart capabilities to your IDC25X, allowing you to:

  • Control and monitor the IDC25X via the Intelli-IQ Smart Display (IQD2) or any smart Bluetooth® device
  • Update software and firmware remotely without removal of the unit or taking it to a dealer or manufacturer – making IDC25X truly future proof
  • Customise charge profiles for any battery chemistry
  • Seamlessly parallel up to five IDC25X units
  • Control up to 14 other devices via Projecta smart relays
  • Fuss-free, one wire installation

INTELLI-IQ DISPLAY FEATURES

  • Real-Time Monitoring of Device Operating Status
    Gain real-time insights into your device’s performance with the convenience of continuous monitoring. The display provides a clear and comprehensive overview of the devices’ operating status, enabling prompt action and informed decisions.
  • Plug ‘n Play System
    The system is designed for effortless integration in any PROJECTA LIN environment that recognize all LIN product range automatically with minimum user intervention. All PROJECTA LIN products can simply connect and ready to use.
  • Simple Single-Loom Connection Method
    Simplify your setup process with the straightforward single-loom connection method. This effcient design facilitates easy installation and usage, minimising complexities and streamlining operations.
  • Bluetooth 5.2 Connection:
    Stay connected seamlessly with the latest 5.2 version Bluetooth technology. Benefit from fast and stable data transmission, enabling swift and reliable communication with compatible devices.
  • 2-Inch High-Definition Capacitive Touchscreen
    Enjoy a visually engaging and user-friendly interface with this high-definition capacitive touchscreen. Its precise responsiveness ensures intuitive and smooth navigation experience.
  • Haptic Feedback Operation Mechanism
    Elevate your user interaction experience with haptic feedback. This mechanism provides subtle vibrations, offering tactile confirmation for every action, enhancing user engagement and confidence.
  • Auto Brightness
    Experience optimal visibility towards ambient lighting conditions with the automatic backlight adjustment feature. The display intelligently adapts its brightness to match the day/night conditions, ensuring clarity and comfort in all environments
CS battery charger overview illustration of unit
CS battery charger overview illustration of unit


Technical Specs

INPUT 10.5-32V
INPUT UNDER VOLTAGE PROTECTION 10.5V
INPUT OVER VOLTAGE PROTECTION 33.0V
INPUT MAX CONSUMPTION CURRENT 100mA
INPUT CURRENT AT POWER SAVING MODE <5mA
DISPLAY SIZE 2.0″ / 5.0cm
SCREEN RESOLUTION 320 X 240
SCREEN TYPE Capacitive Touch
APPROVAL CISPR11 CLASS B
AS/NZS4268
CE
BLUETOOTH 5.2
ECE E10
BLUETOOTH 5.2
LINbus 2.1
INPUT & OUTPUT REVERSE POLARITY Yes
INPUT UNDER & OVER VOLTAGE PROTECTION Yes
THERMAL PROTECTION  at 65ºC



videos

Downloads

Instruction Manual

FAQs

Monitor the supply voltage and the operating temperature of the system. The system will enter
sleep mode if the supply voltage drops below 13.0V, or will not start if the supply voltage falls
below 8.5V.
The system will activate protect mode if the operating temperature exceeds 50°C.
Ensure that every device in the network has a LIN wire connected to IQD2. Ensure stable LIN
connectivity for both IQD2 and IDCX, verify that the QC terminal is securely fastened to the LIN
wire, and firmly inserted into the IDCX’s LIN PIN. You can connect the LIN wires in parallel or in
a daisy chain. To scan the devices, press the reset button on the screen.
Verify that the Bluetooth is turned on your mobile phone. The IQD2 device must be within 15
meters of your phone for a Bluetooth connection.
To reset your IQ settings, click the ‘IQ Reset’ button on the settings page. Please note that this
will erase all the device records in your IQD2 device.

What's in the box

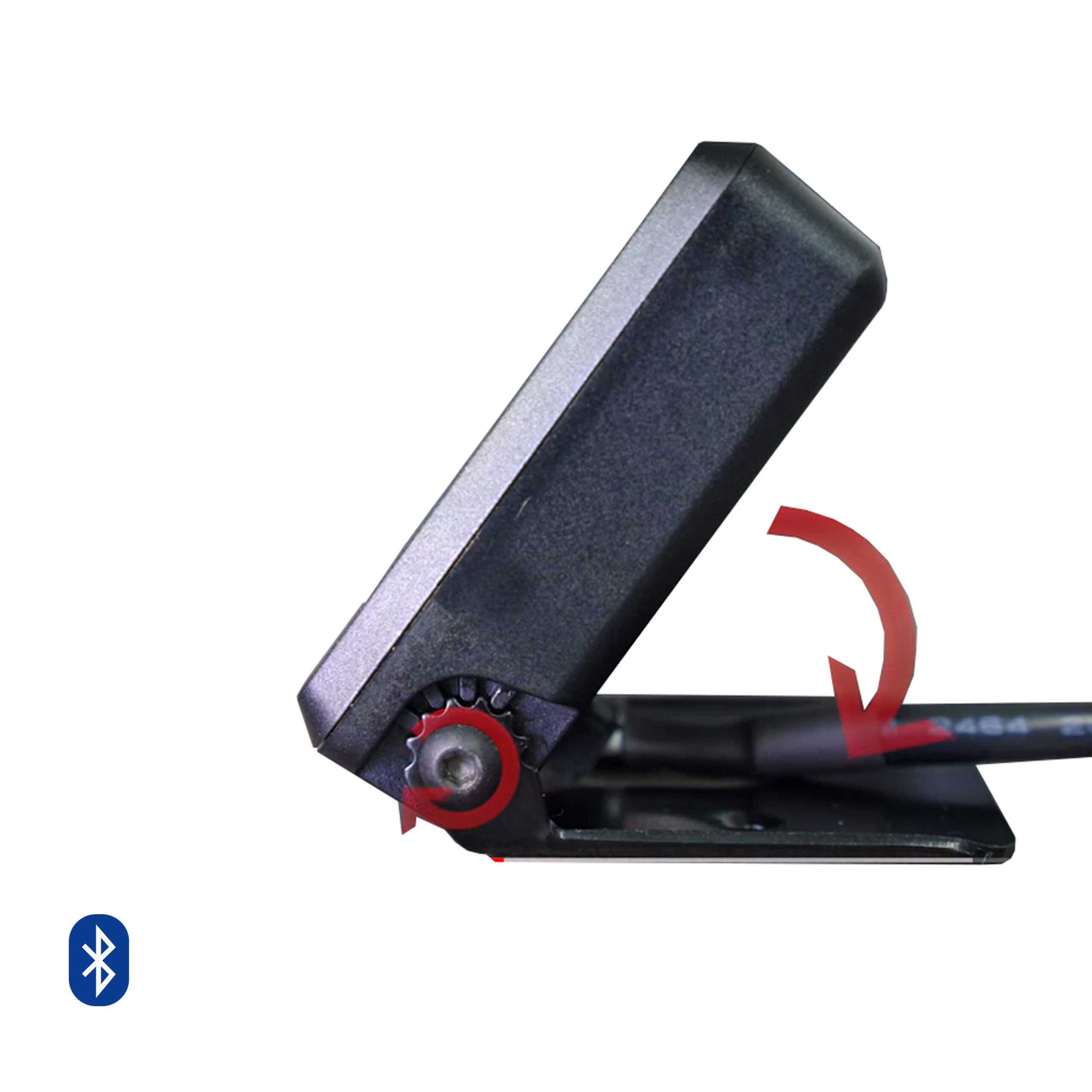

1x Smart Display Unit 1x mounting bracket 1x double sided adhesion + all mounting accessories (screws) and cables
