PROJECTA Dual Battery Charger 50A IDC50X

R13,897.39(Excl.Vat)

Out of Stock

• Proudly designed and tested in Australia. Engineered to perform reliably in hot conditions.
• GEL, AGM, Wet, Calcium, Lithium (LiFePO4) Battery Chemistry
• 32Vdc
• IP68 & IP69K rating
• 70A Input Current

Ideal for under-the-bonnet installation in 4WDs, caravans, RVs, camper trailers, and dual-battery setups, with an operational rating of up to 90°C.

5 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼




Projecta’s IDC50X – true gamechanger in off-grid power management solutions.

As larger batteries, especially lithium, become more common, the demand for a powerful, adaptable charging solution has never been higher. Building on the award-winning IDC25X, the IDC50X offers next-level performance and supports nearly any system with ease. Thousands of hours of in-house engineering have made it more than just a dual battery charger with solar compatibility—it’s an innovative, customisable solution built for current and future needs.

Engineered for robustness and efficiency, the IDC50X offers forward-thinking technology that ensures peace of mind in any off-grid setup. Whether it’s for an extensive adventure or backup power, it delivers comprehensive, high-quality features.

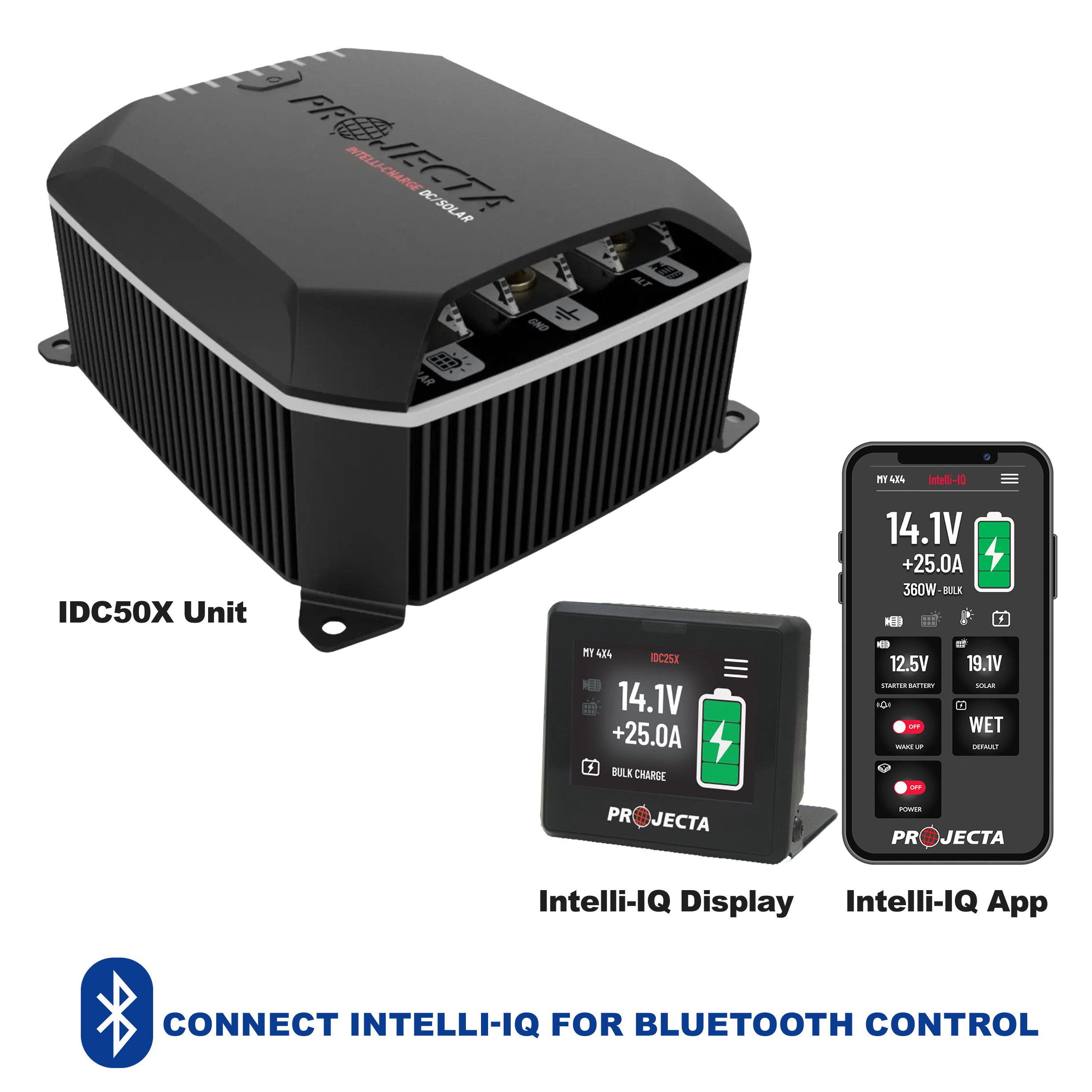

The Projecta Intelli-IQ is a compatible companion for this product. When paired with the Intelli-IQ display via Bluetooth, users can remotely monitor, control, and configure the system in real time using the smartphone app. View the Kit: IDC25X + Intelli-IQ.

RELIABLE OPERATION All connections on the IDC50X are made directly on the unit. This ensures a positive connection to the unit.
ENGINEERED TOUGH Sealed to IP68 & IP69K, the IDC50X is protected against close-range, high-pressure, high-temperature water spray, submersion and dust ingress.
INTELLI-IQ INTEGRATION When paired with Intelli-IQ, IDC50X can be controlled and monitored via Bluetooth®
MPPT SOLAR Provides the best possible solar charge even in low-light conditions.

PROJECTA’s IDC50X FEATURES
The IDCX features everything needed to maintain the auxiliary battery to its optimum condition and to prolong battery life.

  • DUAL INPUT OPERATION
    The IDCX allows for simultaneous dual battery charging from both solar and alternator inputs with no manual switching required. The unit prioritises solar charging as its default and automatically adjusts to the alternator if sunlight is insufficient, reducing the power usage placed on the vehicle’s electrical system.
  • TOUGH & RELIABLE IDCX
    is rated to IP68 & IP69K, ensuring it can withstand the toughest of conditions. All connections into the IDCX are done via brass posts and crimped terminals. Ideal for mounting in the engine bay. IDCX use temperature compensation to ensure the battery receives the correct charge voltage regardless of ambient temperatures. It reduces the voltage in warmer climates to ensure the battery does not boil.
  • SMART DC-DC CHARGING
    IDCX paired with Intelli-IQ supports advanced control of the dual battery system including Bluetooth connectivity to an iOS or Android device. Note Intelli-IQ is sold separately.
  • MULTI-CHEMISTRY CHARGING
    The IDCX charger supports a variety of battery types, including standard automotive batteries and newer lithium-based batteries. For automotive batteries, it offers tailored charging profiles for AGM, GEL, WET, Calcium, and LiFePO4 chemistries. Users should ensure compatibility with non-automotive lithium batteries by checking the battery’s datasheet to confirm that the IDCX’s charging profile is suitable before connecting.
  • ADAPTIVE CHARGING
    This feature helps protect your starter battery by automatically adjusting the charging current when your car’s engine stops, ensuring the battery is not overstressed during idle periods
  • PARALLEL CHARGING
    IDCX can be wired in parallel to provide more charging current for larger systems. This flexibility gives users the option to add another IDCX into their system should power requirements change.  Note: Solar Input has to be connected to the Master IDCX. Else, LEDs will falsely indicate charging. To force an IDCX become the Master of the system, follow the steps below; (Regardles what the charging state is,)
  1. Disconnect all LIN wires on the IDCX except the one on the intended Master.
  2. On the IQD2 display (not App), go  to settings.
  3. While on settings, scroll to the page where ‘RESET’ button is.
  4. Press ‘RESET’ button.
  5. Wait until IQD2 fully restarts and display shows the ‘New Device Found’ message.
  6. Press ‘Continue’.
  7. Connect all other LIN wires.
  8. May need to wait for more than 1minute for all the IDCX units to be displayed in the App.
  • FUTURE PROOF
    IDCX was designed to stand the test of time. When IDCX is paired with an Intelli-IQ, the firmware can be updated via Bluetooth ensuring IDCX software is always up to date with the latest features.
  • SOLAR MPPT
    The IDCX utilises sophisticated MPPT (Maximum Power Point Tracking) solar regular technology. MPPT maximises the power generated from the solar panels to the auxiliary battery.
  • CHARGING VOLTAGE LOSS COMPENSATION
    To compensate the voltage drop on the wire leading to the Auxiliary battery, the IDCX may increase its output voltage while charging. This ensures the charging voltage is at its optimum level.
  • PROTECTIVE FEATURES
    The unit has a output capacitor inside, when a battery is connected to the AUX output, there will always be a small spark.
  • REVERSE CONNECTION PROTECTION
    Reverse connection on input and output posts does not damage IDCX internal circuit. The IDCX detects reverse connection condition and indicates whether input or output connection is reversed.
  • OVER AND UNDER VOLTAGE PROTECTION
    The charger will automatically shut down if there is an over voltage or under voltage problem
  • OVER TEMPERATURE PROTECTION
    The charger will lower its output current if the temperature of the unit begins to overheat.

CS battery charger overview illustration of unit
CS battery charger overview illustration of unit




TECHNICAL SPECS

Charge Type 5 stage
Alternator Input Voltage 9-32Vdc
Max Solar Input 32Vdc, 800W
Output Current Input 9-11Vdc 37A, Input 11-32Vdc 50A
Battery Supported GEL, AGM, WET, CALCIUM, LITHIUM
Standby Current -10°C to +80°C
Smart Alternator 12V Vehicle
Turn on: 12.2-20V
Turn off: <11.9V24V Vehicle
Turn on: 24.4-32V
Turn off: <24V
Conventional Alternator 12V Vehicle
Turn on: 13.4-20V
Turn off: <12.8V24V Vehicle
Turn on: 26.8-32V
Turn off: <25.6V

videos

 Unboxing the IDC50X

DOWNLOADS

Instruction Manual

FAQs

The IDCX was designed and engineered to the stringent ingress protection rating of IP68 & IP69K. This allows the IDCX to meet the toughest of challenges whether that be river crossings, engine bay washing or direct high pressure washing of the unit.
High-capacity batteries can produce large amounts of power and are capable of melting cable insulation and catching fire in the case of a short circuit. Each positive (+) cable connected to the battery must be protected by a fuse located in close proximity to the battery.
The IDCX has been designed to work with all vehicles, including new vehicles with EFI and computer management systems. The charger utilizes sophisticated electronics that ensure complete safety for you and your vehicle.
Refer to diagram “LED BATTERY CHARGE STATUS INDICATORS” on page 13 to identify when the IDCX is indicating battery charging is complete.
Check the cable size. The IDCX is designed to power on and charge from an input source as little as 9V. If small size cables are used for wiring, the voltage might drop below 9V when IDCX is attempting to start up. Please refer to Installation – wiring section for recommended cable size.
In some cases batteries can be discharged to the point where they have very little or no voltage. This can occur if a small amount of power is used for a long time, for example a map reading light is left on for a week or more. The IDCX is designed to charge an auxiliary battery from as little as 2 Volts. Refer to Page 13 Output Override for detailed instruction.
IQD2 and IDCX may have malfunctioned. To resolve, remove and after about 1 minute, reconnect ALL power wires (IQD2 loom, ALT, Solar Neg, and Aux) on IQD2 and IDCX.
IQD2 and IDCX may have malfunctioned. To resolve, remove and after about 1 minute, reconnect ALL power wires (IQD2 loom, ALT, Solar Neg, and Aux) on IQD2 and IDCX.
Sometimes, when battery chemistry is changed by pressing the IDCX button, it does not reflect to the Mobile App. To force the Mobile App to sync to IDCX, close IQD2 Mobile App then reconnect.
Solar input voltage is not an indicator of the solar panel capability. Weather may be cloudy or solar panel is under the shade and input current is not sufficient to commence charging.
While IDCX is in the process of recognizing (about 2 minutes) the battery, LED is in amber state. It is also in the same color if battery is not present or battery voltage is very low. To regain charging a battery that is very deeply depleted, press and hold the IDCX button for about 10 seconds.
There are three possible reasons why the IDCX indicated the battery is fully charged: 1. The battery is fully charged. 2. The battery has taken a surface charge. 3. The battery has a faulty cell.
Batteries unused or left discharged for some time build up a resistance to being recharged. When the charger is first connected, these batteries will take a surface charge, and the IDCX LED’s will indicate the auxiliary battery is fully charged within a short period of time. The battery however is not fully charged, the charger is voltage sensitive and cannot differentiate between a surface charge and a fully charged battery. After a few hours, the battery may start to accept some charge but most batteries with this condition may not recover.
12 Volt batteries contain 6 cells, and one faulty cell is enough to ruin your battery. If after twelve hours of charging your battery is still accepting charge, you should test the cells using a hydrometer. If one reading is lower than the rest, it indicates a faulty cell. It is pointless to continue charging; the battery needs replacing.
The IDCX incorporates short circuit protection that makes it much safer to use. For this reason, the IDCX will only output power when properly connected to a battery. To check if the IDCX is functioning, follow the instructions to connect and operate the charger as normal on a flat battery. While the battery is charging, measure the battery voltage with a volt or multi-meter. Charging can be confirmed if the voltage is increasing (within the voltage parameters set out in the specification).

What's in the Box

1x 50A Dual Battery Charger
1x Instruction Manual
+ Installation Hardware & Accessories: Temperature compensation loom, heat shrink, cable lugs, mounting bolts, terminals and screws.
