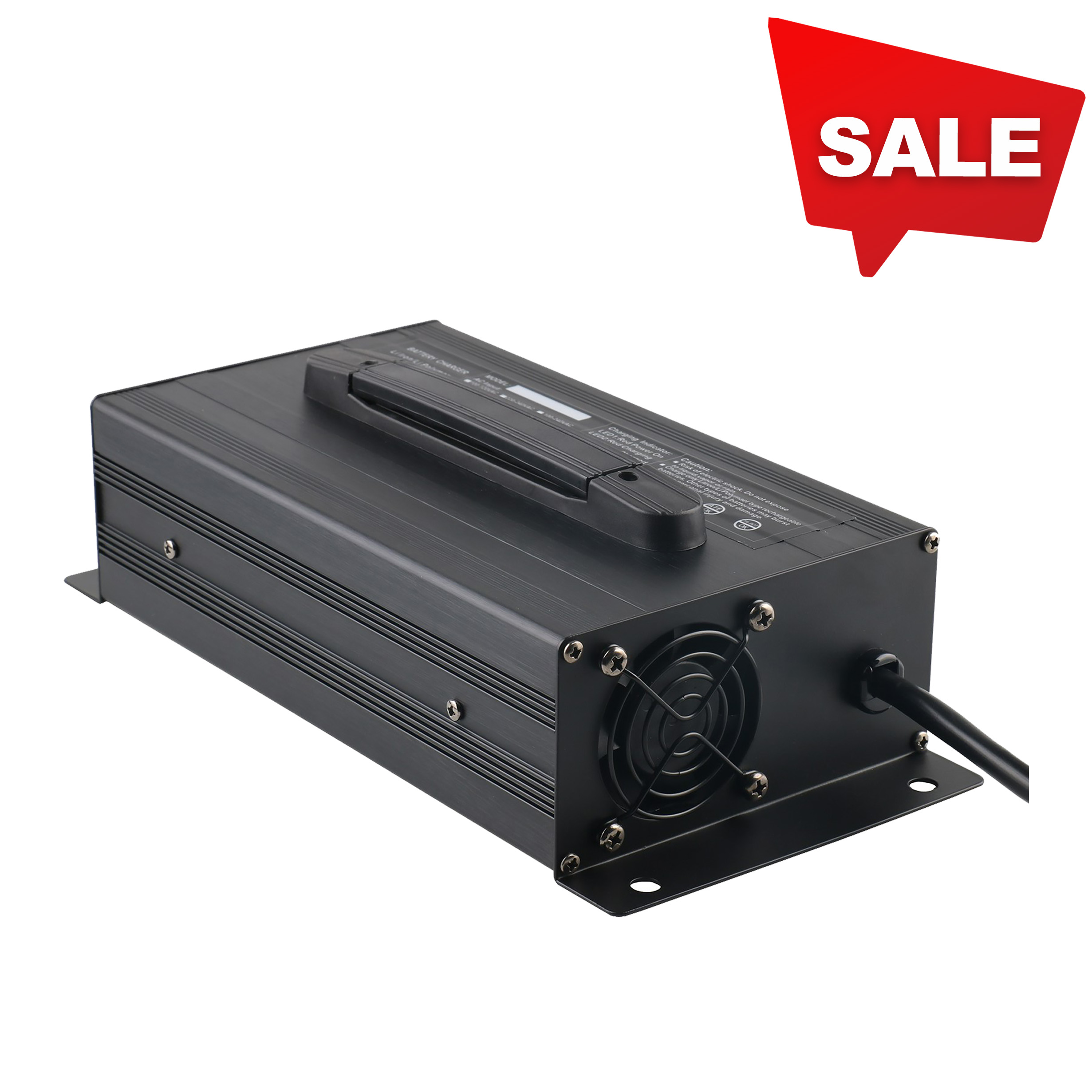

CS Golf Cart Charger 48V20A – no outlet connector

R6,700.87(Excl.Vat)

SKU: GCC0-4820

Advanced high frequency switching mode power supply technology.



In stock

Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

Technical Specs

SKU GCC0-3625 GCC0W-3625 GCC0-4820 GCC0W-4820
INPUT CHARACTERISTICS
Battery Lead acid Lead acid Lead acid Lead acid
Max. output power 44.1V± 0.2V 44.1V± 0.2V 58.8V± 0.2V 58.8V± 0.2V
Output Current 25A± 0.5A 25A± 0.2A 20A± 0.5A 20A± 0.2A
Input voltage 220Vac 220Vac 220Vac 220Vac
OUTPUT CHARACTERISTICS
CC (constant current) 25A 25A 20A 20A
CV (constant voltage) 44.1V± 0.2Vdc↓ 44.1V± 0.2Vdc↓ 58.8V± 0.2Vdc↓ 58.8V± 0.2Vdc↓
Float Charging yes yes yes yes
MECHANICAL CHARACTERISTICS
Shell material Aluminium Zinc Aluminium Aluminium Alloy Zinc Aluminium Alloy
Waterproof IP67 IP67
Dimensions (mm) 281(l) x 134(w) x 83.5(h) 287(l) x 169(w) x 89(h) 281(l) x 134(w) x 83.5(h) 287(l) x 169(w) x 89(h)
Input socket Meets IEC standard Meets IEC standard Meets IEC standard Meets IEC standard
AC Wire 1.5 m length 1.5 m length 1.5 m length 1.5 m length
DC Wire 1.5 m length 1.5 m length 1.5 m length 1.5 m length
Weight 3.5 kg (3500g) 4.5kg (4500g) 3.5 kg (3500g) 4.5kg (4500g)





Features

• Up to 91% work efficiency
• Strong protection function
• Working temperature scope of wide temperature range
• 100% full loading aging test
• Quake proof degree of automotive grade
• Output over voltage protection
• Output over current protection
• Output short-circuit protection
• Reverse polarity protection
• Charger over temperature protection
• Built-in fans, automatic forced ventilation
• 100% full load burn-in test
• 3 stage battery charging: CC, CV and floating
• Charging parameters are insensitive to the AC input line voltage variations





Warranty

1-Year
