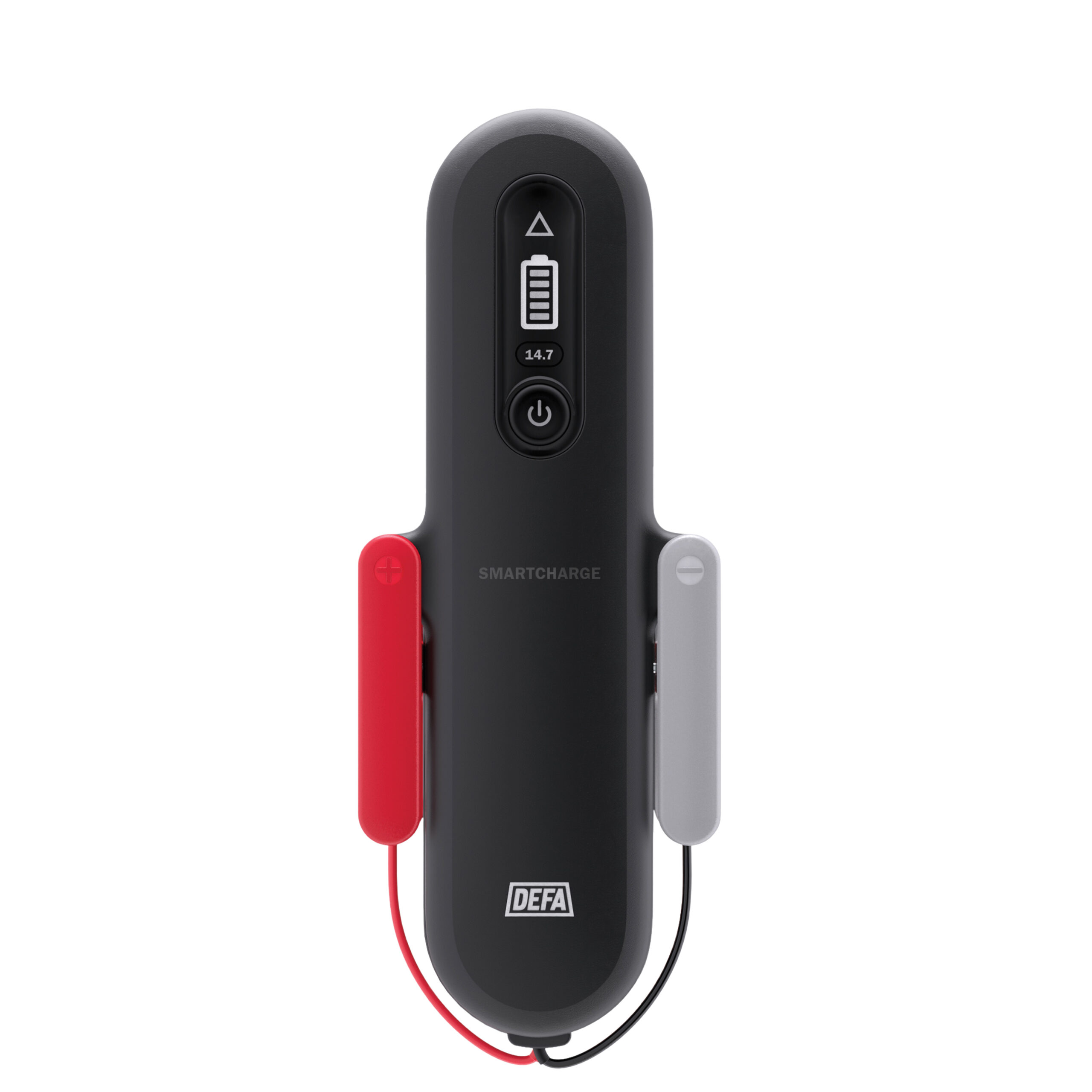

DEFA 12V SmartCharger 10A

R3,543.48(Excl.Vat)

SKU: 706161

Test and award-winning portable charger designed to make charging simple and safe for everyone. Ideal for all 12V lead/acid batteries.







In stock

Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

SmartCharge 10A is ideal for maintenance charging of any 12V lead/acid battery. It automatically adapts charging to the charging level, size and temperature of the battery. The display is intuitive and the cables and clamps are easy to fasten, making it compact and easy to store in your vehicle or garage.

EASY TO USE
Connect the charger, press “ON” and the charger does the rest, automatically optimizing charging for your battery.

SAFETY
SmartCharge 10A is wholly secured against sparks, short-circuiting and reverse polarity. The automatically regulated charging curve optimizes charging and protects the battery.

POWER SUPPLY
A built-in Power supply mode makes it possible to keep your vehicle powered while you replace the battery. Activate this function by pressing and holding the ON button for 5 seconds. Once activated, the charger will automatically provide 13,6V. This is indicated by the LEDs blinking in sequence from the bottom to the top.

TEST AND AWARD WINS
Chargers in the SmartCharge family have been crowned the best car charger by the Finnish motoring magazine Moottori, and the best boat charger in a test published in several Nordic magazines, including the Finnish KM and the Norwegian Båtmagasinet. It has also received the Award for Design Excellence and the Design for All awards from Norwegian Design Council, now DOGA. SmartCharge received top marks for combining first-class results with a user-friendly interface and that makes charging easy for all users.







































Technical Specs

Input Voltage 230V AC, 50-60Hz
Max Charge Power 175W
Inverse Current < 1mA
Output Voltage 14,4 / 14,7V DC
Operating Temperature -40°C / +40°C
Cooling Air
Type of Batteries All types of lead/acid, AGM and GEL, open and closed.
Battery Capacity 30-250Ah
IP Rating IP65
Isolation Class II
Dimensions (mm) 235(h) x 90(w) x 54(d)
Weight 0,750kg
Certification(s) EN60335-1, EN60355-2-29, EN 61204-3, EN61000-3-3, EN61000-3-2

DEFA AS conforms to the requirements of both ISO 9001- 2008, ISO 14001:2004 and OHSAS 18001:2007. In addition, our engine heaters and cables conform to the requirements of ISO/TS 16949:2002.



Features

  • Simple and user-friendly interface and display.
  • Automatically adapts charging to your battery.
  • Built-in Power supply mode.
  • Battery status monitoring in the display.
  • Secured against short-circuiting and reverse polarity.
  • Integrated cable storage solution.
  • Will not overcharge your battery.
  • Temperature-compensated charging.





Downloads

User Manual
Brochure
Technical Sheet

Warranty

5-Year
