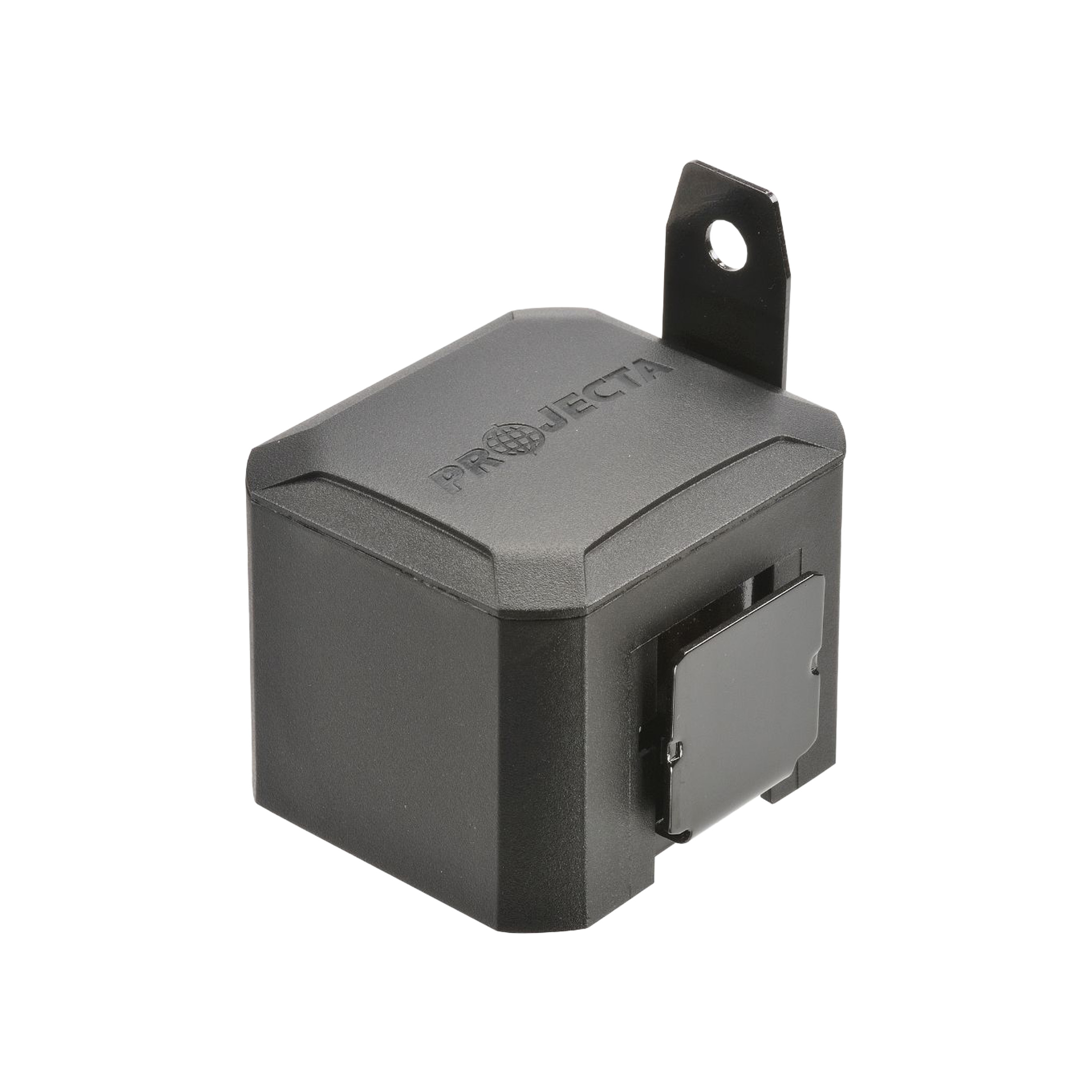

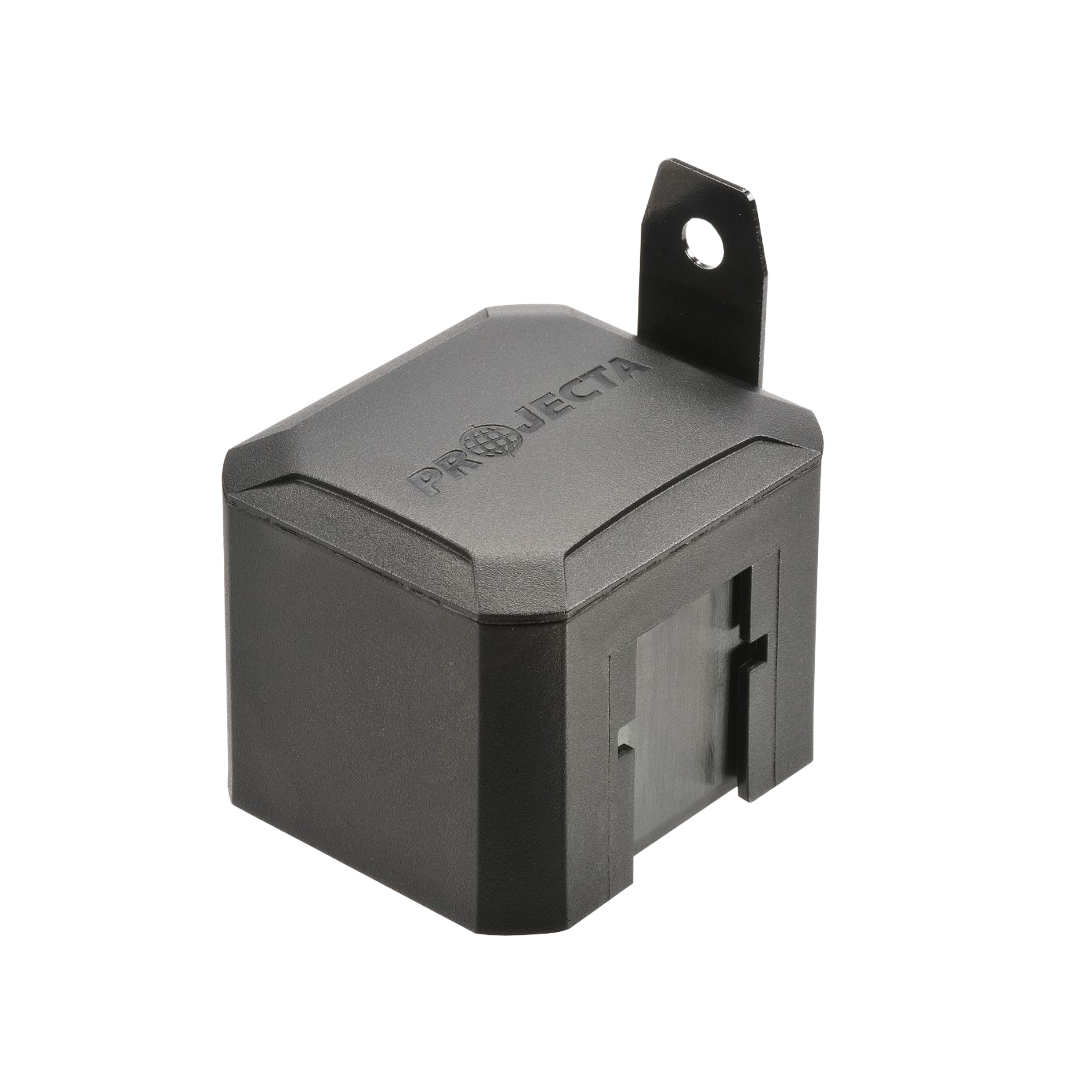

PROJECTA Smart Relay – Single Channel (12V/40A)
R1,418.00(Excl.Vat)
In Stock | Ships in one business day | FREE DELIVERY
A fully programmable relay that turns any device in the DC system into a smart device. The relays can also monitor both current and voltage, allowing activation at user-defined levels. Suitable for use with starter or auxiliary batteries. *Requires Intelli-IQ 2″ Smart Display to enable to ‘smart’ functionality and APP control.
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |
The Intelli-IQ Smart Relay, can turn any standard product into a smart device. Functionality never seen before in a DC system. LIN bus connectivity with INTELLI-IQ controller: the IQR040 Smart Relay integrates seamlessly with the Intelli-IQ IQD2 via LIN bus connection, offering users sophisticated customization and control through the PROJECTA IQ App.
FULLY PROGRAMMABLE
Functions as Timer Relay, Voltage Sensitive Relay, Digital Circuit Breaker, Low Voltage Disconnect, Flasher, Driving Light Relay.
FULLY SEALED DESIGN
Fully potted design and IP68 and IP69K rating ensures the Smart Relay can be mounted anywhere.
SET DAILY TASKS
Turn any device on or off on a schedule set by the user. Also includes delayed off time.
MULTI-FUNCTION TRIGGER
Allows the relay to be programmed to switch on, only when an external stimulus is provided for example High Beam (for Driving Lights), Reverse Light (when reverse selected).
TOTAL CONTROL
Take total control when partnered with 2″ Smart Display, enabling all aspect of the 12V system to be programmed
ELIMINATES AFTERMARKET SWITCHES
Limited space and options within modern vehicles is no longer an issue, with total control of aftermarket accessories directly from your smartphone or vehicle dash.
The INTELLI-IQ ecosystem enhances power management solutions with the introduction of the IQR040 Smart Relay, featuring LIN bus integration for superior communication and device management. The IQR040, a 40A Single Channel Smart Relay, is compatible with 12V and 24V systems and provides robust safety protocols for reliable performance.
Technical Specs
| MODEL | IQR040 | IQMR4 |
| INPUT VOLTAGE RANGE | 9-32V | 9-16V |
| INPUT UNDER VOLTAGE PROTECTION | 9.0V | 9.0V |
| INPUT OVER VOLTAGE PROTECTION | >33V | >16V |
| INPUT CONSUMPTION CURRENT | <10mA | <10mA |
| MAX OUTPUT CURRENT | 40A @12V, 15A@24V | 10A max per channel, 30A max for total output |
| LIN BUS SUPPORT | 2.1 | 2.1 |
| LIN DEVICE TYPE | Slave/Peripheral | Slave/Peripheral |
| OPERATING TEMPERATURE | -10 ~ 85°C | -10 ~ 85°C |
| OPERATING HUMIDITY | 0~90%RH | 0~90%RH |
| STORAGE TEMPERATURE (short term) | -10~105°C | -10~105°C |
| STORAGE HUMIDITY | <60%RH | <60%RH |
| IP RATING | IP68&IP69K | IP20 |
| PRODUCT SIZE | 59 x 52 x 46.5mm | 102 x 56 x 23.3mm |
| PRODUCT WEIGHT | 150g | 90g |
| SAFETY | Thermal Protection Shutdown | Thermal Protection Shutdown |
| Overvoltage Protection | Overvoltage Protection | |
| Undervoltage Protection | Undervoltage Protection | |
| Short Circuit Protection | Short Circuit Protection | |
| Reverse Connection Protection | Built-in 15A Fuse Holder per channel for Overcurrent Protection | |
| STANDARDS | < 95%(N.C.) | < 95%(N.C.) |
Features
BLUETOOTH CONNECTIVITY
Bluetooth allows the Intelli-IQ to connect to any iOS or Android device, giving greater functionality up to 10 metres away.
LIN BUS
LIN bus is a connection protocol giving users limitless control over devices and accessories plugged into the Intelli-IQ via a smart relay.
EASY TO MOUNT
Designed to be easy to mount, smart relay can be mounted in a wide variety of locations.
INTUITIVE SET UP

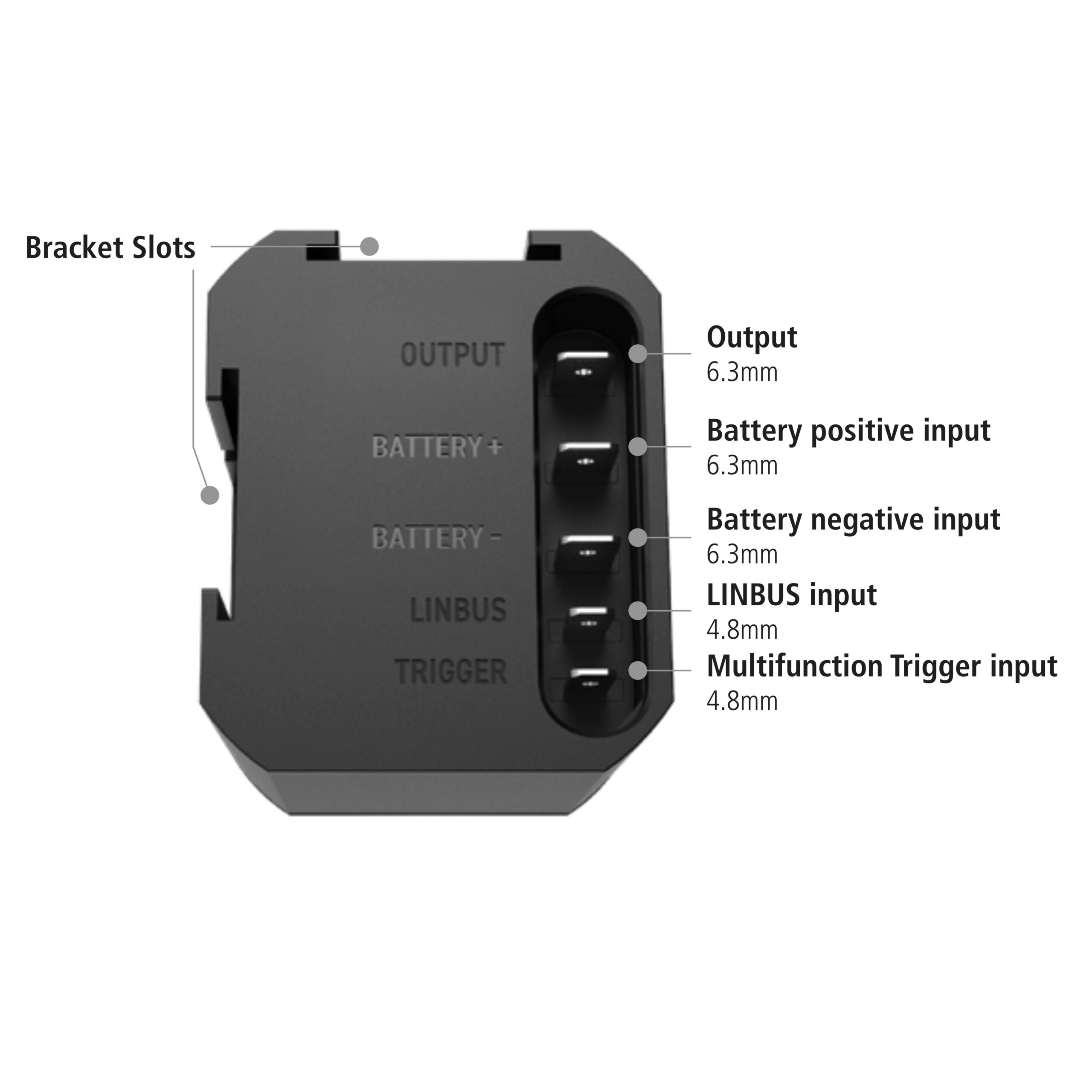

Intelli-IQ Smart Relay has been designed to provide a simple 5 wire install. The relays can even be daisy chained together allowing future expansion without messy wiring set up.
TIMER RELAYS
• Delay Off: deactivate devices with a set time delay, optimizing energy use and convenience.
• Daily task: program devices to turn on/off at specific times, like activating heating systems at 6AM on weekdays.
ADVANCED LIGHTING CONTROL
• High beam trigger: integrates vehicle lighting with high beam operations, enhancing visibility and safety during night driving
• Flash patterns: includes 7 default patterns (SOS and etc.) and a custom mode allowing users to create unique on/off sequences, suitable for signalling and decoration.
• Brightness adjustment (IQMR4 only): tailors lighting levels for different settings, enhancing ambiance and energy efficiency.
VOLTAGE SENSITIVE RELAY (VSR) (12V only)
• automatically adjusts the connection based on voltage criteria, crucial for maintaining stable operations.
CURRENT SENSOR WITH DIGITAL FUSING
• monitors electrical flow, providing automatic cut-off at 40A to prevent overload, essential for high-power applications.
COMPREHENSIVE PROTECTION
• Over and under voltage protection: guards against voltage irregularities.
• Load dump protection: shields against sudden discharge loads when an energy source is disconnected.
• Over temperature protection: prevents overheating by moderating temperature levels within the system.
• Low Voltage Disconnect (LVD): customizable settings to protect devices from voltage fluctuations, ensuring safety and prolonging device lifespan.
PLUG ‘N PLAY SYSTEM
The system is designed for effortless integration in any PROJECTA LIN environment that recognize all LIN product range automatically with minimum user intervention.
All PROJECTA LIN products can simply connect and ready to use.
Warranty
5-Year
