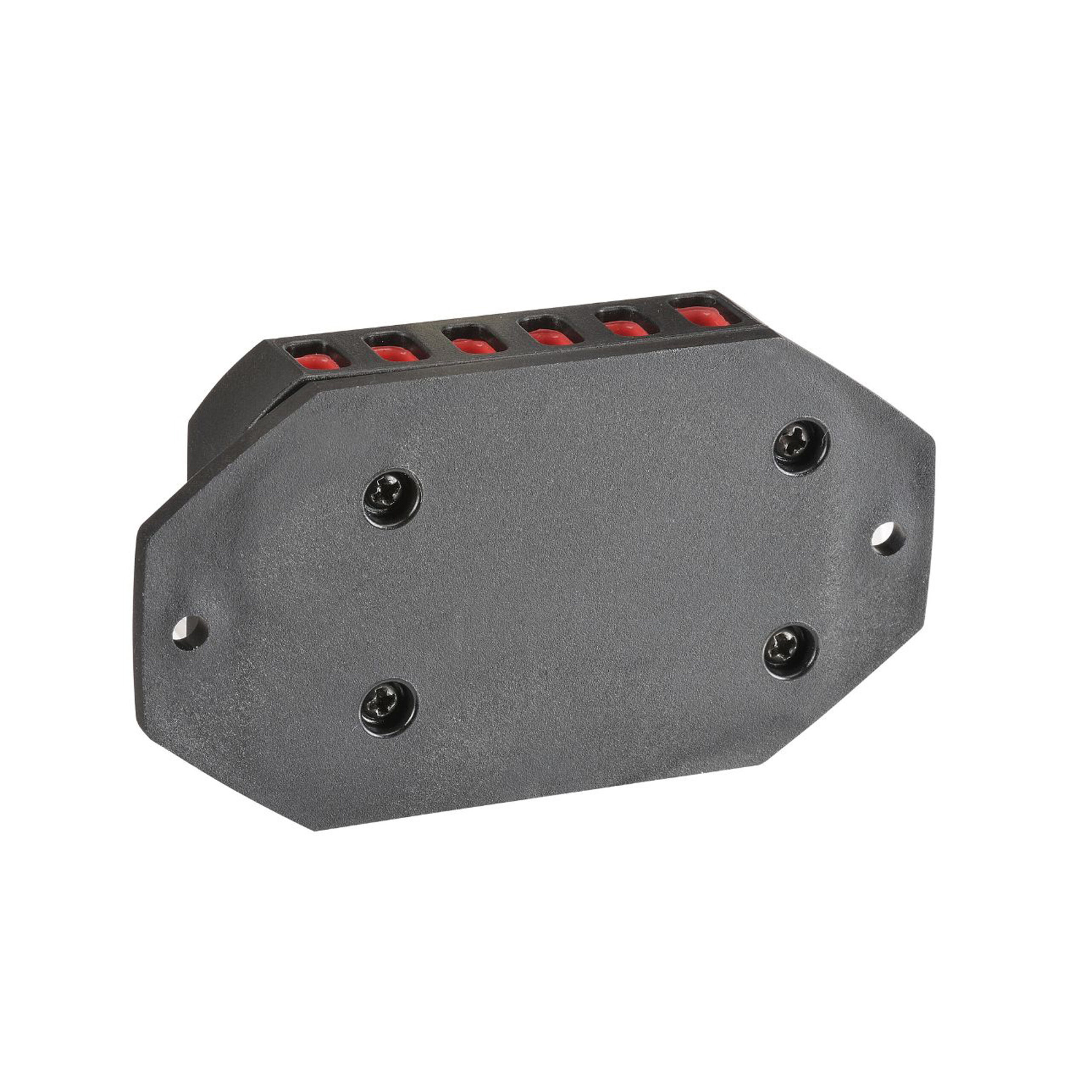

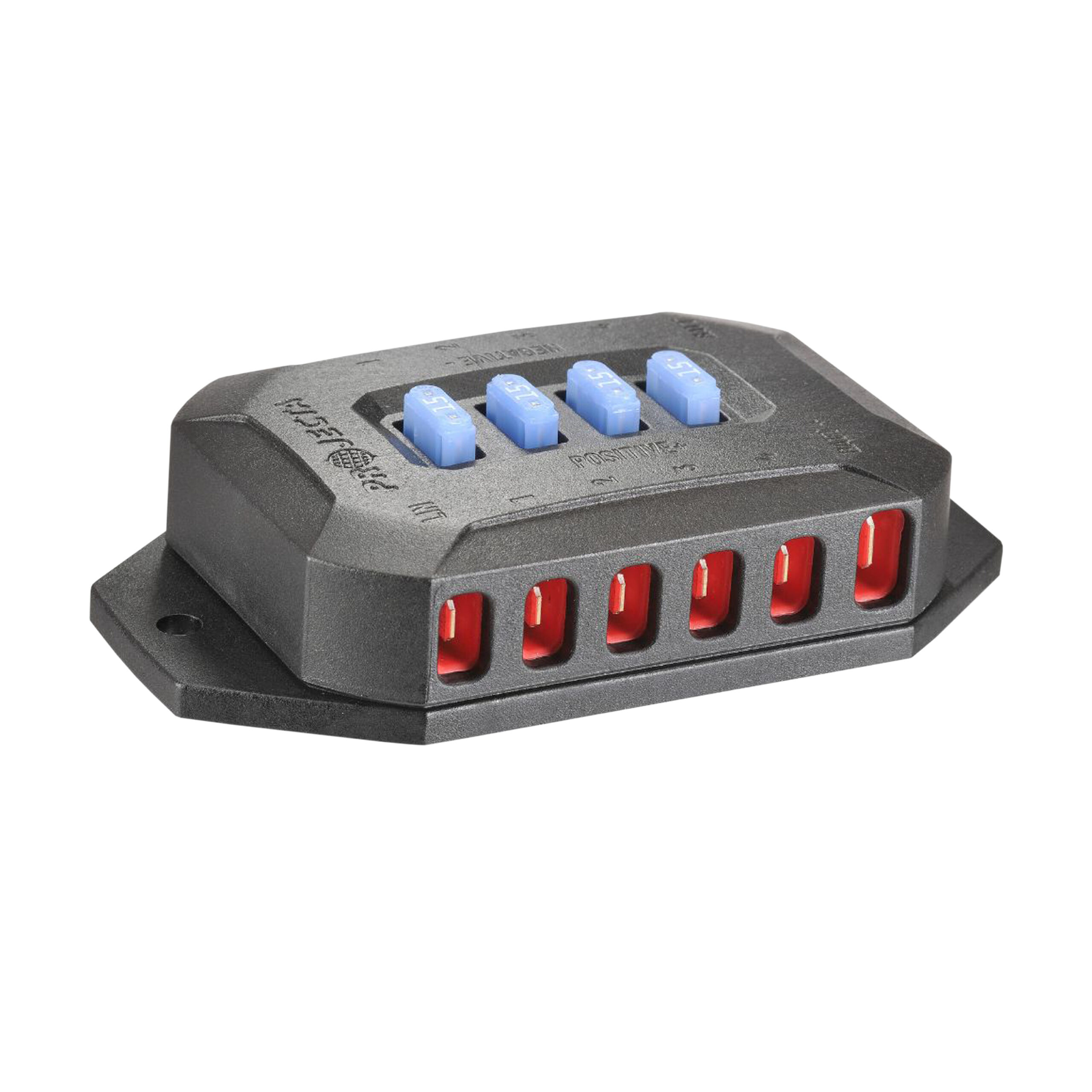

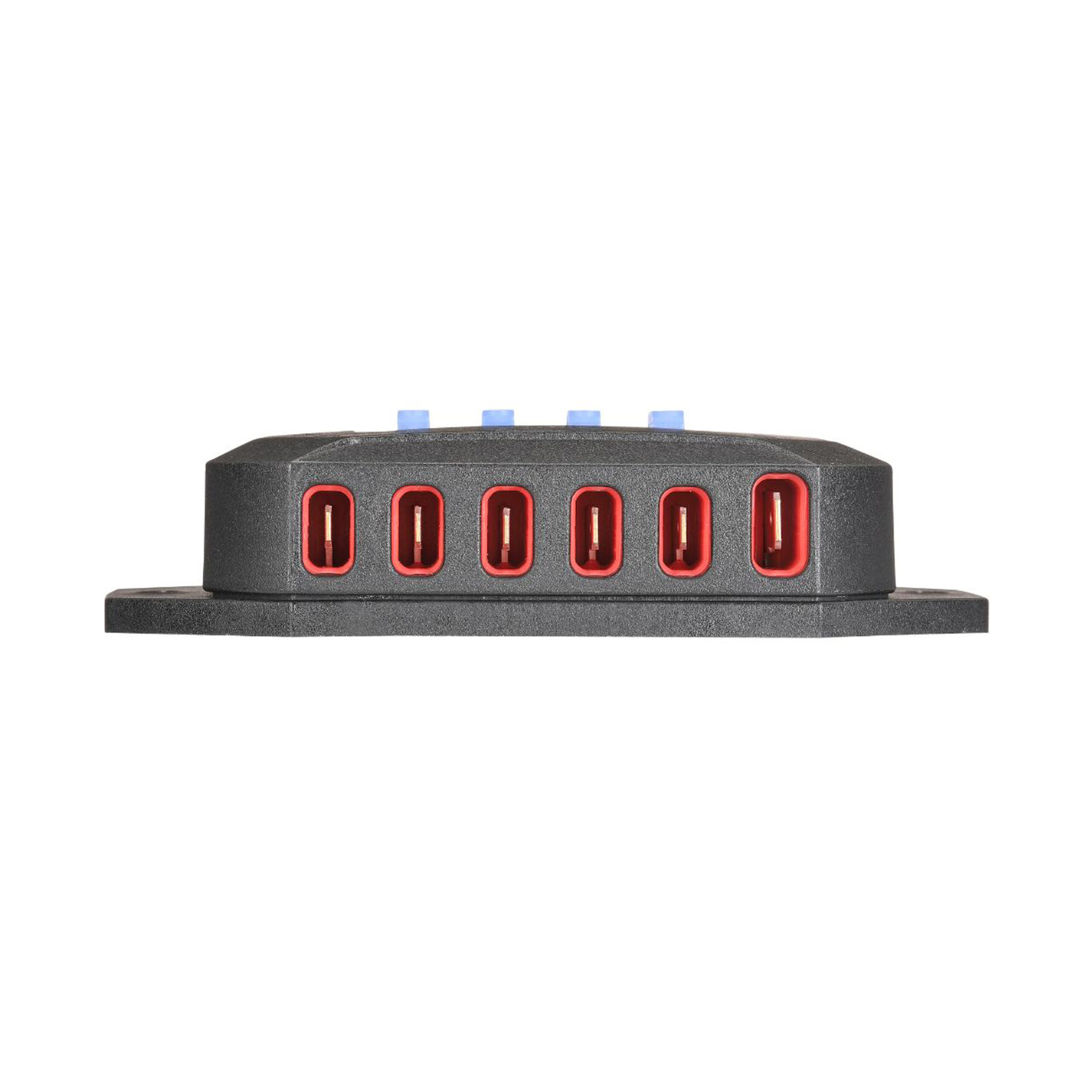

PROJECTA Smart Relay – Multi Channel (12V/4x10A)
R1,610.00(Excl.Vat)
In Stock | Ships in one business day | FREE DELIVERY
A fully programmable relay that turns any device in the DC system into a smart device. The relays can also monitor both current and voltage, allowing activation at user-defined levels. Suitable for use with starter or auxiliary batteries.
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |

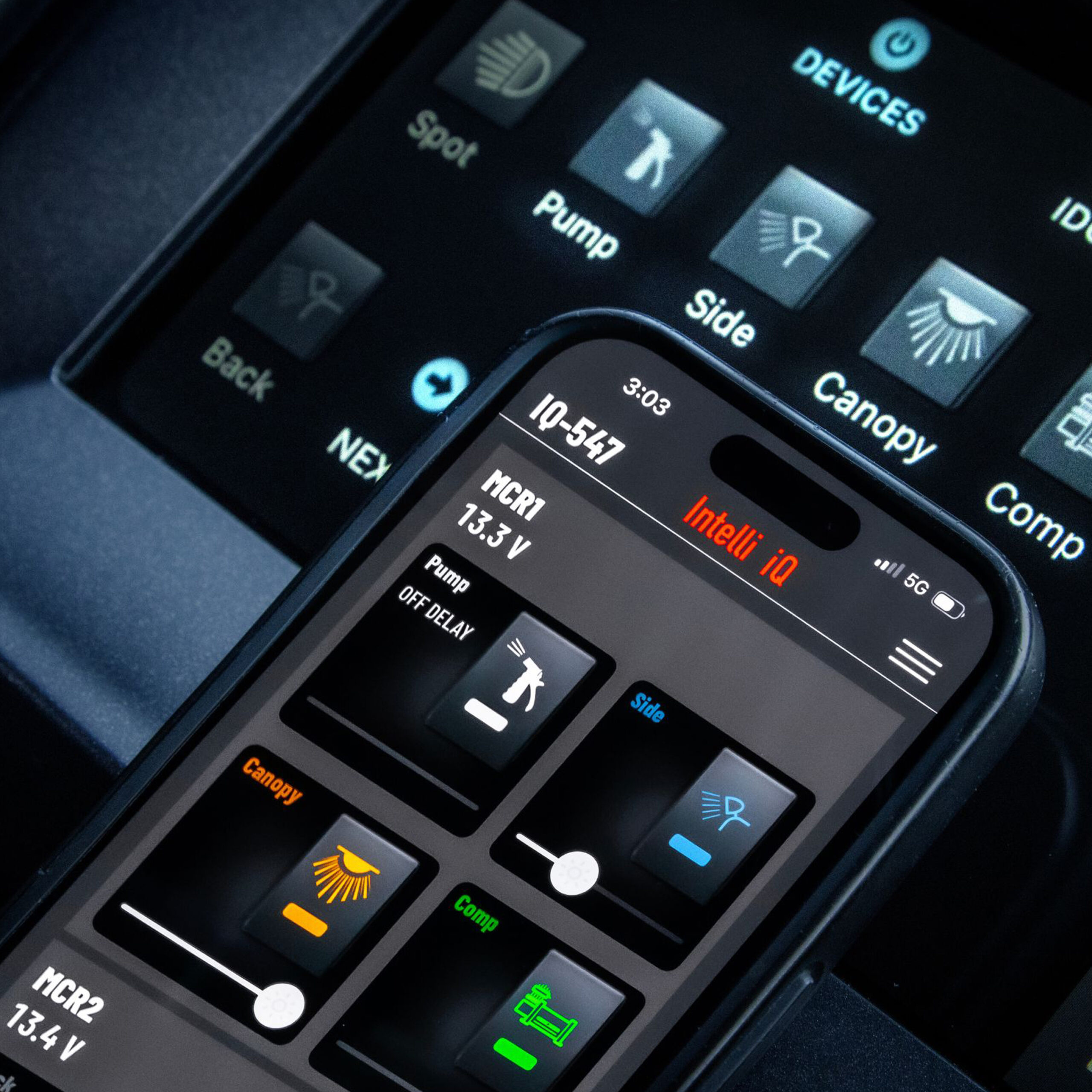

The Intelli-IQ Smart Relay, can turn any standard product into a smart device. Functionality never seen before in a DC system. LIN bus connectivity with INTELLI-IQ controller: The IQMR4 Smart Relay integrates seamlessly with the Intelli-IQ IQD2 via LIN bus connection, offering users sophisticated customization and control through the PROJECTA IQ App.
EASILY PROGRAMMABLE
Functions as a timer relay and flasher with adjustable settings for precise control. Includes Low Voltage Disconnect and over-voltage protection for added system safety.
ADVANCED LIGHTING CONTROL
Allows simple operation of lights including dimming and dual colour lighting control.

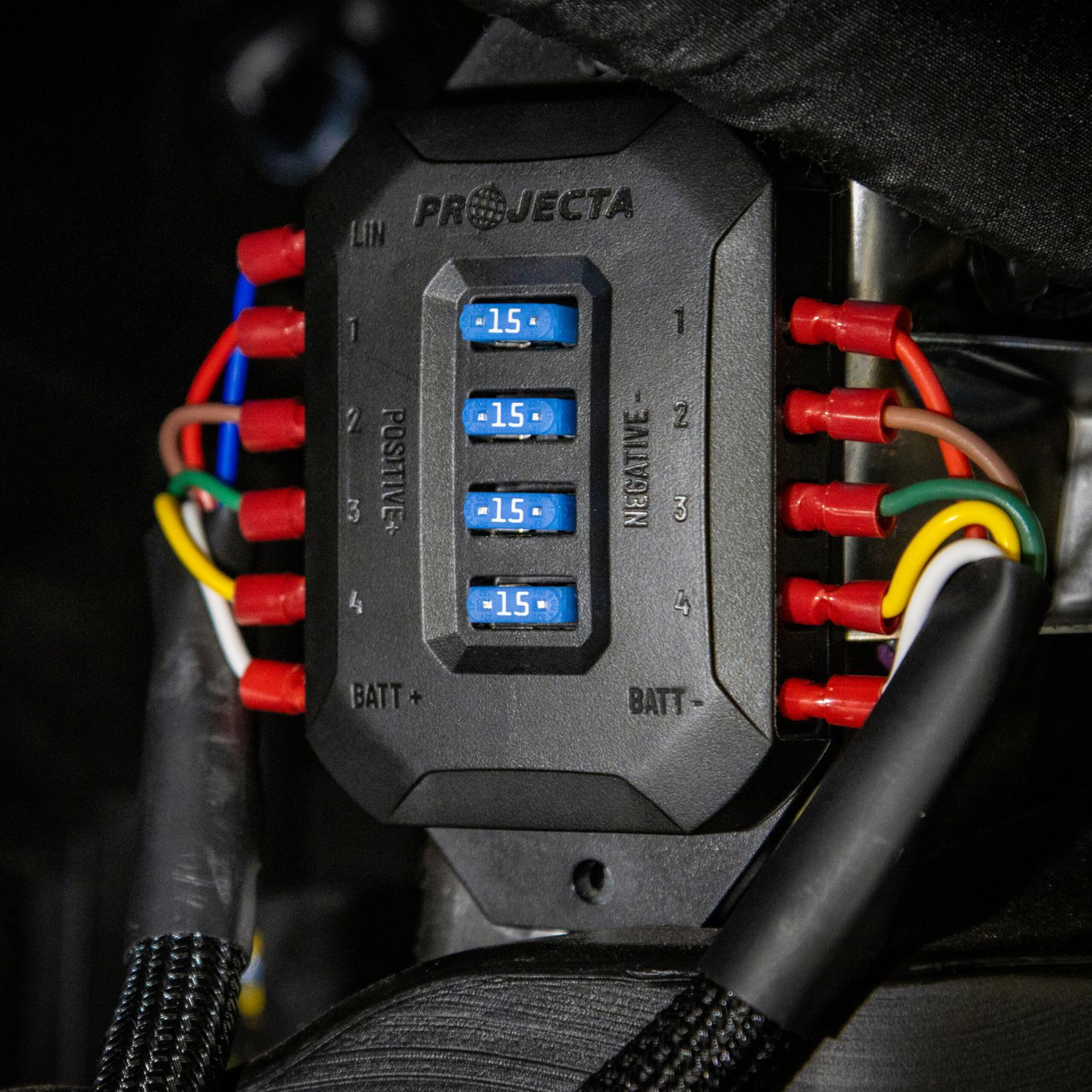

EASY INSTALLATION
Acting as three products in one (Switch Panel, Bus Bar, Fuse Box) means less wiring running whilst not losing power or connectivity.
DAILY TASKS
Turn any device on or off on a schedule set by the user. Also includes delayed off time.
TOTAL CONTROL
Take total control when partnered with 2″ Smart Display, enabling all aspect of the 12V system to be programmed
Technical Specs
| MODEL | IQR040 | IQMR4 |
| INPUT VOLTAGE RANGE | 9-32V | 9-16V |
| INPUT UNDER VOLTAGE PROTECTION | 9.0V | 9.0V |
| INPUT OVER VOLTAGE PROTECTION | >33V | >16V |
| INPUT CONSUMPTION CURRENT | <10mA | <10mA |
| MAX OUTPUT CURRENT | 40A @12V, 15A@24V | 10A max per channel, 30A max for total output |
| LIN BUS SUPPORT | 2.1 | 2.1 |
| LIN DEVICE TYPE | Slave/Peripheral | Slave/Peripheral |
| OPERATING TEMPERATURE | -10 ~ 85°C | -10 ~ 85°C |
| OPERATING HUMIDITY | 0~90%RH | 0~90%RH |
| STORAGE TEMPERATURE (short term) | -10~105°C | -10~105°C |
| STORAGE HUMIDITY | <60%RH | <60%RH |
| IP RATING | IP68&IP69K | IP20 |
| PRODUCT SIZE | 59 x 52 x 46.5mm | 102 x 56 x 23.3mm |
| PRODUCT WEIGHT | 150g | 90g |
| SAFETY | Thermal Protection Shutdown | Thermal Protection Shutdown |
| Overvoltage Protection | Overvoltage Protection | |
| Undervoltage Protection | Undervoltage Protection | |
| Short Circuit Protection | Short Circuit Protection | |
| Reverse Connection Protection | Built-in 15A Fuse Holder per channel for Overcurrent Protection | |
| STANDARDS | < 95%(N.C.) | < 95%(N.C.) |
Features
• LIN bus connectivity with INTELLI-IQ controller:
Both the IQR040 and IQMR4 Smart Relays integrate seamlessly with the INTELLI IQ controller (IQD2) via LIN bus connection, offering users sophisticated customization and control through the PROJECTA IQ App.
Both the IQR040 and IQMR4 Smart Relays integrate seamlessly with the INTELLI IQ controller (IQD2) via LIN bus connection, offering users sophisticated customization and control through the PROJECTA IQ App.
• Timer relays:
Delay Off: deactivate devices with a set time delay, optimizing energy use and convenience.
Daily task: program devices to turn on/off at specific times, like activating heating systems at 6AM on weekdays.
• Advanced lighting control:
High beam trigger: integrates vehicle lighting with high beam operations, enhancing visibility and safety during night driving
Flash patterns: includes 7 default patterns (SOS and etc.) and a custom mode allowing users to create unique on/off sequences, suitable for signalling and decoration.
Brightness adjustment (IQMR4 only): tailors lighting levels for different settings, enhancing ambiance and energy efficiency.
• Voltage Sensitive Relay (VSR) (IQR040,12V only):
automatically adjusts the connection based on voltage criteria, crucial for maintaining stable operations.
automatically adjusts the connection based on voltage criteria, crucial for maintaining stable operations.
• Current sensor with digital fusing (IQR040 only):
monitors electrical flow, providing automatic cut-off at 40A to prevent overload, essential for high-power applications.
monitors electrical flow, providing automatic cut-off at 40A to prevent overload, essential for high-power applications.
• Conditional switching (IQMR4 only):
ensures that activating one channel automatically deactivates the linked channel. It’s particularly effective in dual colour vehicle lighting, allowing seamless transitions between settings. Also, in RVs and 4X4s, it can switch from spotlight to floodlight automatically, adapting to changes in outdoor conditions.
ensures that activating one channel automatically deactivates the linked channel. It’s particularly effective in dual colour vehicle lighting, allowing seamless transitions between settings. Also, in RVs and 4X4s, it can switch from spotlight to floodlight automatically, adapting to changes in outdoor conditions.
• Comprehensive protection:
~ Over and under voltage protection: guards against voltage irregularities.
~ Load dump protection: shields against sudden discharge loads when an energy source is disconnected.
~ Over temperature protection: prevents overheating by moderating temperature levels within the system.
~ Low Voltage Disconnect (LVD): customizable settings to protect devices from voltage fluctuations, ensuring safety and prolonging device lifespan.
• Plug ‘n play system:
The system is designed for effortless integration in any PROJECTA LIN environment that recognize all LIN product range automatically with minimum user intervention. All PROJECTA LIN products can simply connect and ready to use.
The system is designed for effortless integration in any PROJECTA LIN environment that recognize all LIN product range automatically with minimum user intervention. All PROJECTA LIN products can simply connect and ready to use.
Warranty
5-Year
