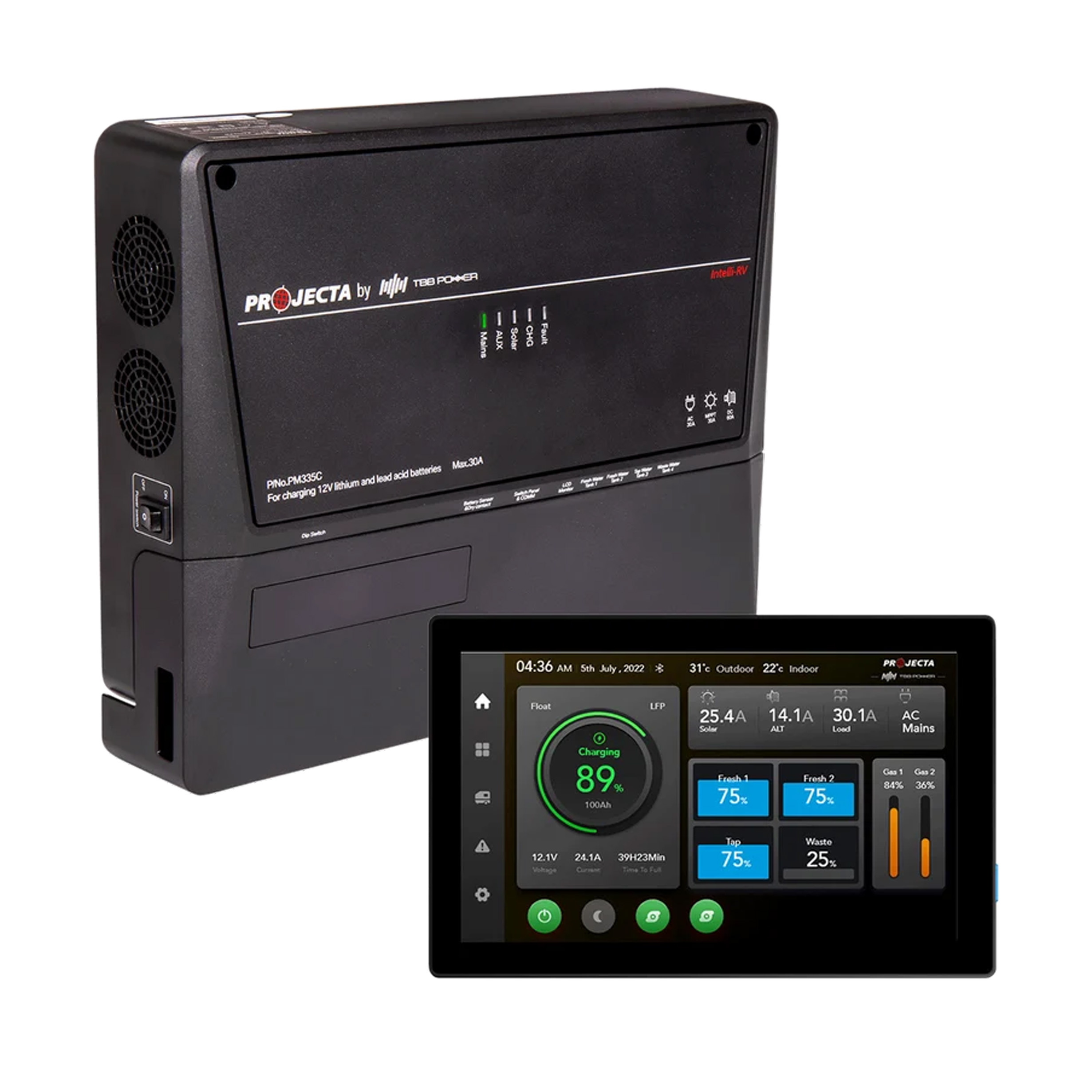

Projecta 12V 30A System, 35A Power Supply, 30A MPPT with 7” Display
Price on Request | EMAIL HERE
• 12V 30A Smart battery charger
• 30A MPPT Solar charge controller
• 35A Power Supply
• + 7” Bluetooth LCD touch screen
Ideal for use in caravans, motor homes and RVs.
Year Warranty
▼Additional product information & Specifications available below▼
A comprehensive power management system to suit caravans and RVs featuring a 35A power supply and 30A AC/solar charger. Supplied with an advanced 7” Bluetooth LCD touch screen offering complete control and monitoring of battery, MPPT solar, water and electrical systems.
A Slim, low-profile design with cover to hide messy output cables. Makes power in an RV easy by centralising the wiring to one slim, low-profile, compact design with cover to hide messy output cables.
30A POWER MANAGEMENT SYSTEM FEATURES
- SOLAR CONTROLLER
The 30A built-in Maximum Power Point Tracking (MPPT) solar regulator allows maximum power from portable solar. - CHARGING OPTIONS
30A solar (MPPT), 30A AC (mains), or vehicle alternator (100A* VSR). *60A continuous, 100A for 30 minutes - POWER SUPPLY
Provides 35A (constant 12.8VDC) to power all your DC appliances when connected to mains power. -
VERSATILEAdditional wiring components and modules available, such as levelling sensors, Bluetooth colour screens and lighting controls
 |
 |
 |
 |
TECHNICAL SPECS
| UNIT PM335C | |
| Charger | 12V 30A |
| Power Supply | 35A |
| Output | 2414 fused outputs |
| Charger Type | MPPT |
| Solar Charge Current | 30A |
| IP Rating | IP20 |
| MONITOR PMD-BT7 | |
| Input | 312Vdc |
| Current | 800mA |
| Temp | -20~+60°C |
| IP Rating | IP20 |
Videos
Intelli-RV GEN II by PROJECTA
FAQs
What's in the box
1x Power Unit
Accessory cables – Cables used to connect the system components.
1x 7″ LCD screen
1x Instruction Manual
