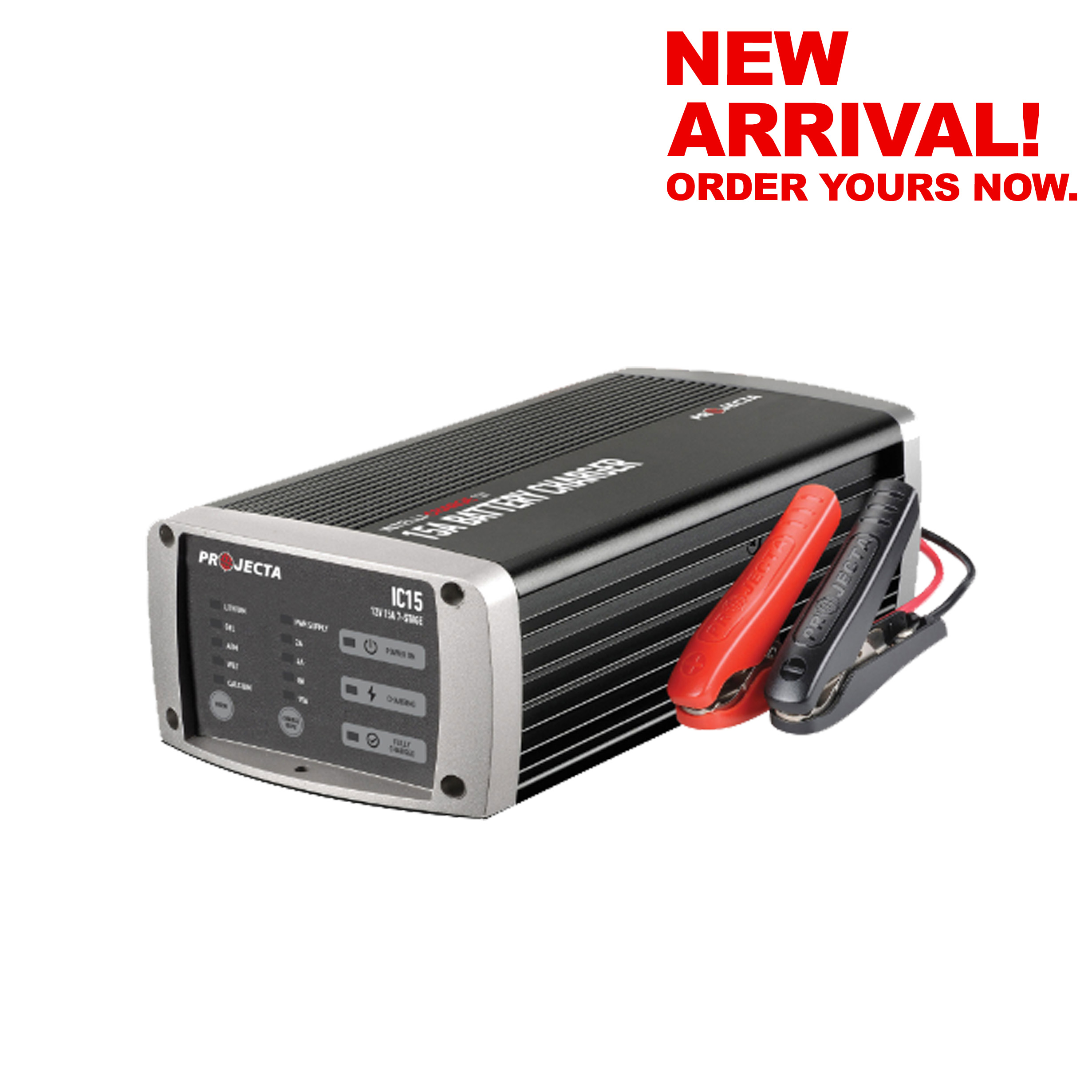

PROJECTA Intellicharge 15A Battery Charger

R3,448.70(Excl.Vat)

Out of Stock

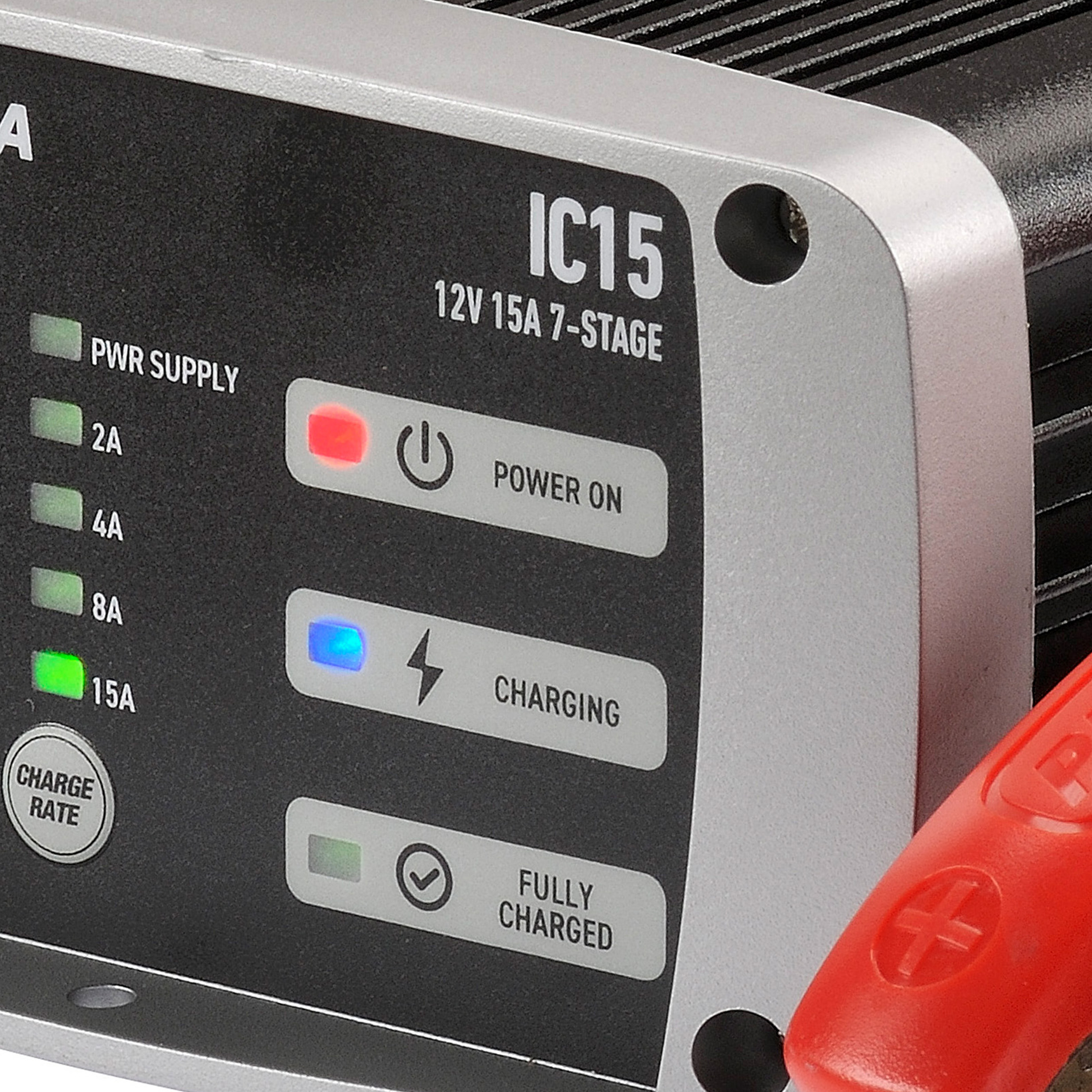

• LED status indicator
• 7/5 stage automatic charging
• Multi Chemistry

Ideal for permanent fixtures for boats, camper trailers, caravans.

5 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼






An extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts.

The 12V Automatic 15A 7-Stage Battery Charger is a versatile and powerful charging solution designed for a wide range of battery types and sizes. The Multi-Chem function allows you to set the charging profile to suit each battery’s chemistry type (Lithium, GEL, AGM, WET, and Calcium), ensuring correct and thorough charging while maximising battery performance and lifespan. With an adjustable charge rate, it provides charging tailored to different battery capacities.

When Power Supply Mode is selected, you can safely run an appliance or load from the battery. An appliance can also be powered directly from the battery clamps if required—for example, when using the charger as a memory saver during battery disconnection.

*replace the existing plug with the SA plug provided.
*remote control sold separately.

PROJECTA Intellicharge 15A Battery Charger features

• ADJUSTABLE OUTPUT
Adjustable for different battery sizes for precise charging
• POWER SUPPLY MODE
Retains vehicle computer settings when changing a battery or can run 12V appliances
• WIRED REMOTE CONTROL
Allows charger to be mounted out of sight yet retain total control (remote sold separately)
• 7 STAGES:
Desulphation; Soft Start; Bulk; Absorption; Analysis; Recondition and Float.
• 5 STAGE LITHIUM
Soft Start 1, Soft Start 2, bulk, Absorption, Float

CS battery charger overview illustration of unitCS battery charger overview illustration of unit

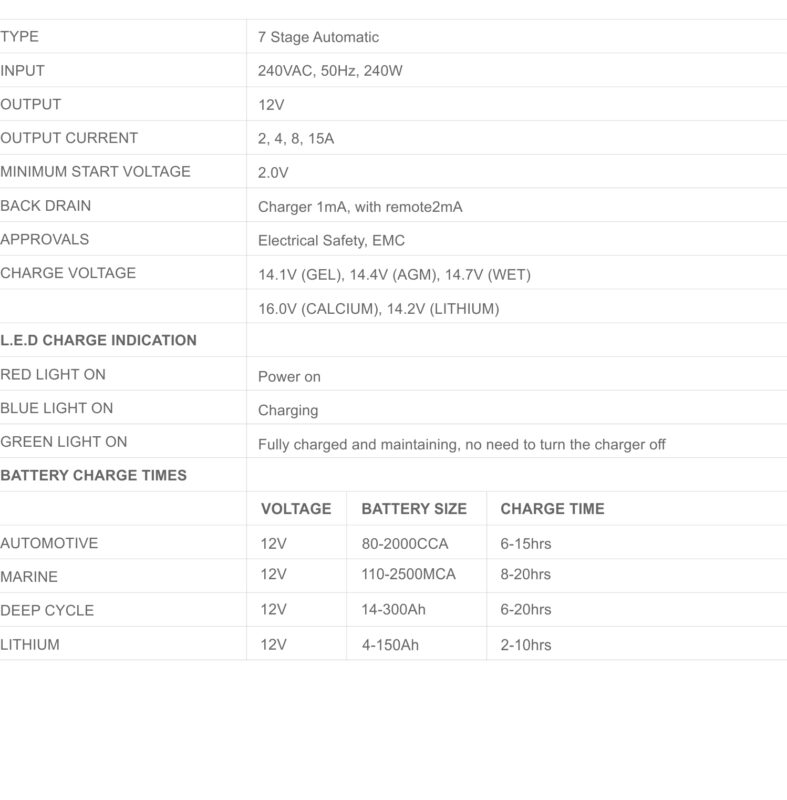

Techinical Specs

Output 12V
Battery Current 2, 4, 8, 15A
Battery Charge Time Automotive: 12V 80–2000CCA — 6–15 hrs Marine: 12V 110–2500MCA — 8–20 hrs Deep Cycle: 12V 14–300Ah — 6–20 hrs Lithium (LiFePO4): 12V 4–150Ah — 2–10 hrs
Charge Stages 7 Stage Automatic
Charge Voltage 14.1V (GEL), 14.4V (AGM), 14.7V (WET), 16.0V (CALCIUM), 14.2V (LITHIUM)
Input 240VAC, 50Hz, 240W
Approvals and safety standards Electrical Safety, EMC
Min start voltage 2.0V
Back drain Charger 1mA, with remote 2mA

videos


Unboxing the IC15

DOWNLOADS

Instruction Manual

FAQs

Frequently asked questions

The charger’s fully charged LED will illuminate (solid). Alternatively use a Battery Hydrometer (Projecta Part No. BH100). A reading of 1.250 or more in each cell indicates a fully charged battery.

In some cases batteries can be flattened to the point where they have very little or no voltage. This can occur if a small amount of power is used for a long time, for example a map reading light is left on for a week or more. Projecta 7 Stage chargers are designed to charge from as little as 2.5 Volts.

If the voltage is lower than 2.5 Volts use a pair of booster cables to connect between two batteries to provide more than 2.5 Volts to the battery being charged. The charger can then start to charge the battery and the booster cables can be removed.

Yes, by selecting Power Supply mode you are able to use the charger as a power supply to run an appliance. Ensure the appliance being run is not greater than the charger’s output current and where possible connect the charger to a battery, and the battery to the appliance.

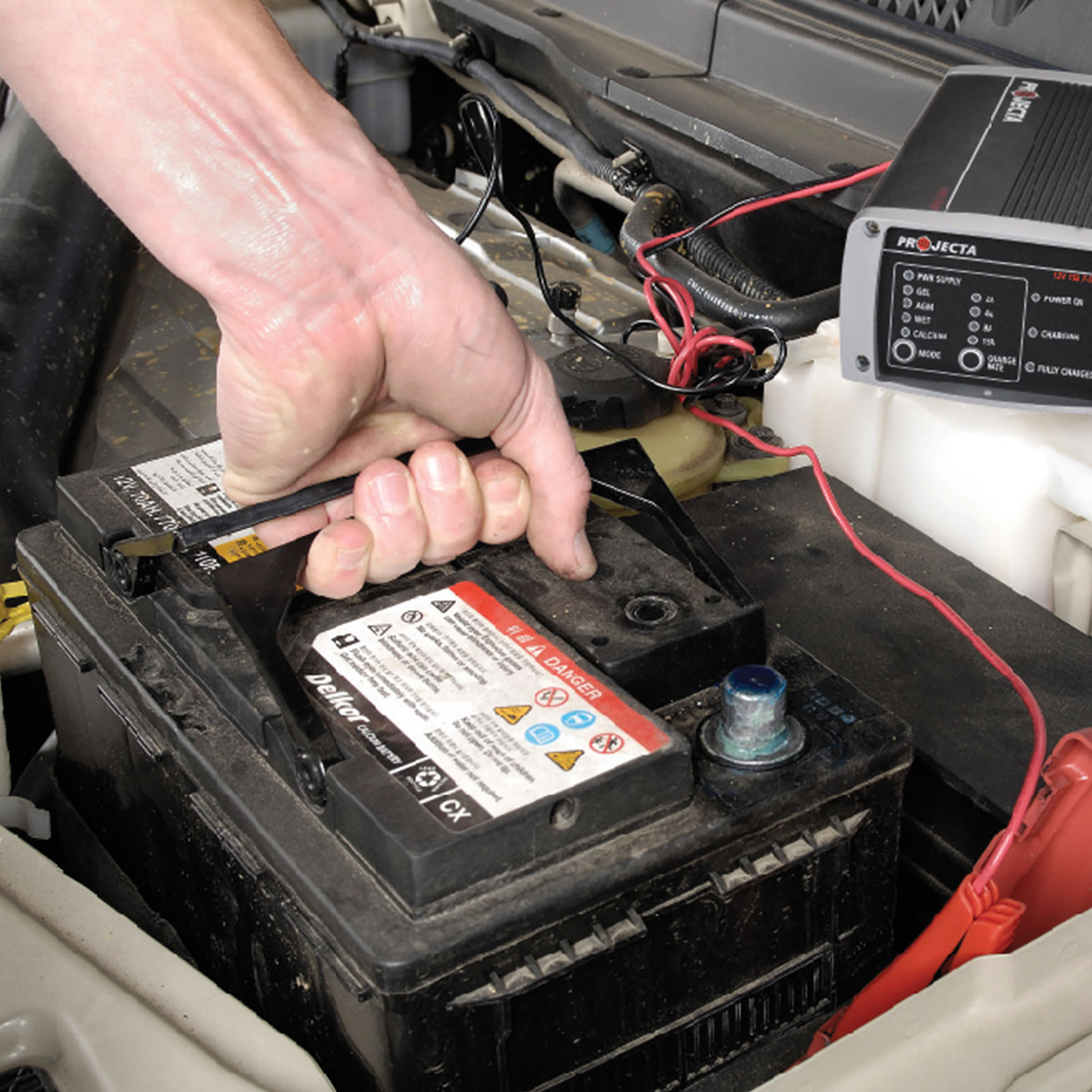

The charger may also be used to connect to a vehicle while changing the battery to maintain the vehicle’s computer and radio settings.

The charger will reset when in Power Supply mode if the load exceeds the charger’s capacity. Some appliances when turned on or first connected to the charger will cause the charger to reset and it will re-try by slowly ramping up its output.

Below are the conditions that are displayed by the LEDs for each of the charge stages.

What's in the box

1x PROJECTA Intellicharge 15A Battery Charger
1x Manual
