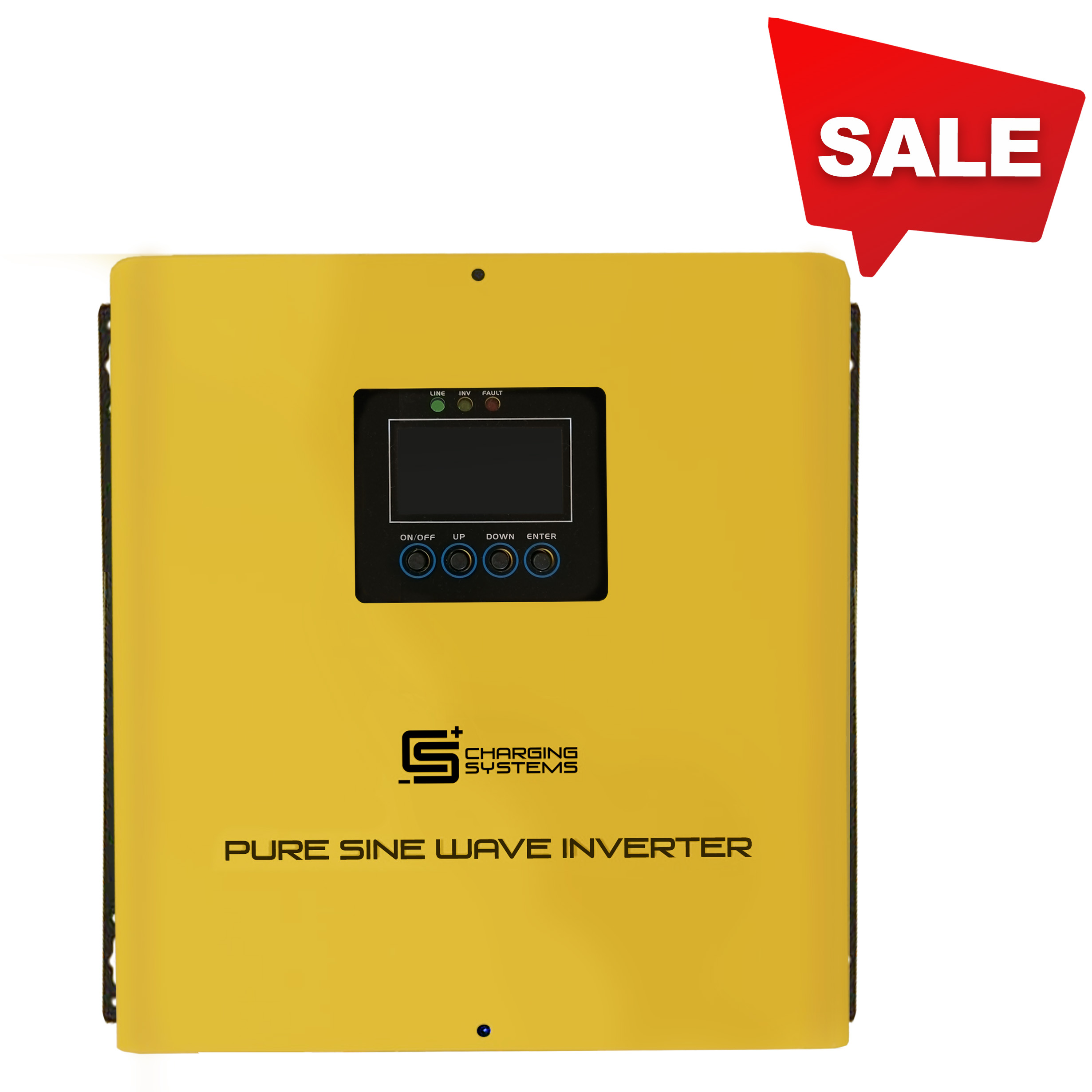

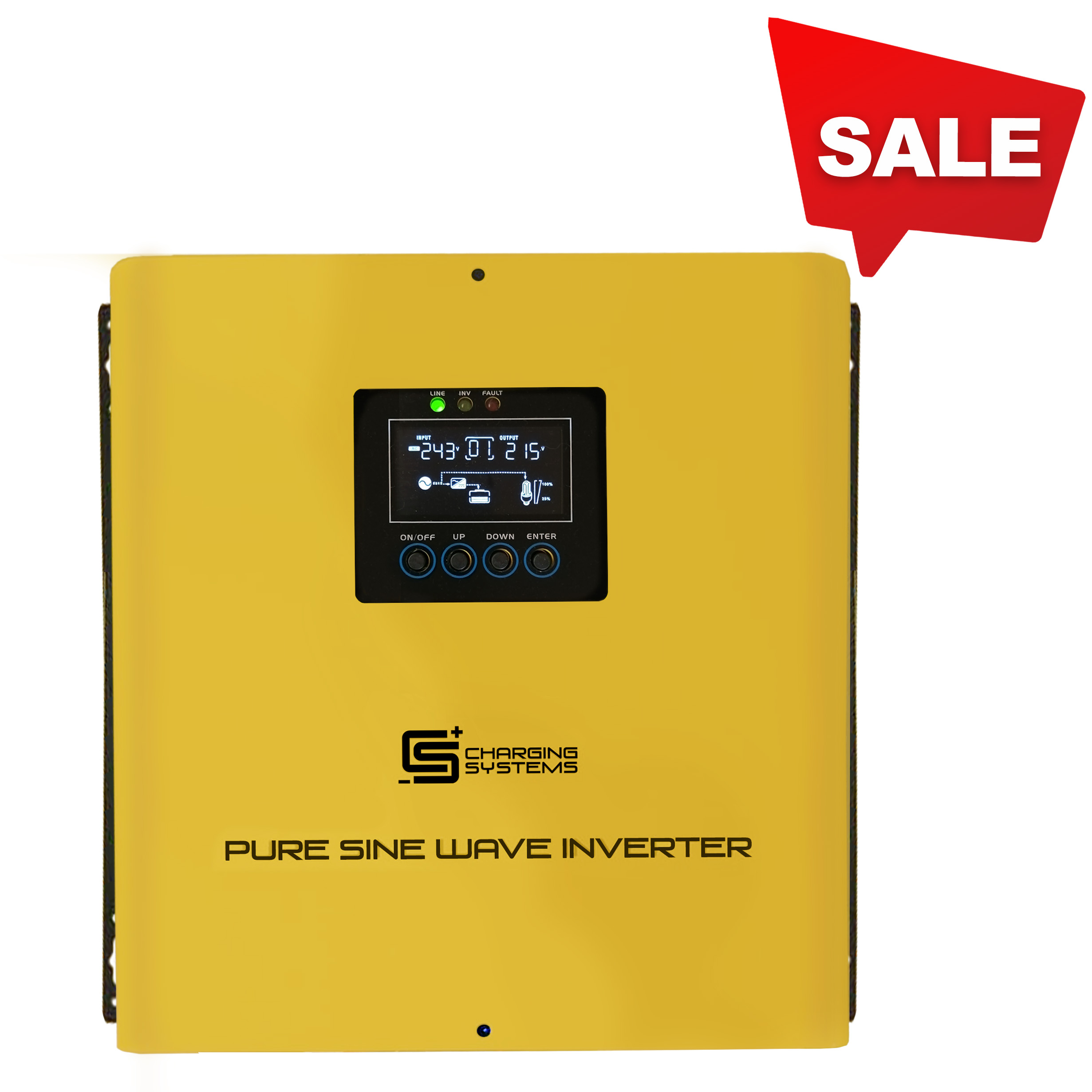

CS 1000W 20A AC Charger Inverter

R4,165.22(Excl.Vat)

In Stock   |   Ships in one business day   |   FREE DELIVERY

• Built-in 20A AC Charger
• Strong loading capacity (handles up to 3 times the surge load capacity when an appliance starts up)
• Intelligent LED display screen
• 93% Utility Efficiency
• Supported Battery Types Gel, AGM, Lead Acid, Calcium




Ideal for both home and mobile application

5 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼




Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

Our CS Low Frequency 12V 1000W Pure Sine Wave Inverter with a built-in 20A AC Charger (allowing you to use the inverter as a UPS during power interruptions), is based on transformer technology with a strong loading capacity which is most suitable for all kinds of home and office equipment. The PSICH has a high-strength metal shell, safety flame retardant material, cooling fan and intelligent LED display screen.

Includes UK/SA adaptor & UK plug.

Inverter guide for home/mobile setups — view here.

20A AC CHARGER INVERTER FEATURES

  • Low frequency type inverter
  • Pure Sine Wave output
  • Intelligent digital LED display screen
  • Built-in 20A AC charger
  • Based on transformer technology, suitable for all kinds of home/office equipment
  • Multiple safe protections:
    overload protection
    low voltage protection
    over voltage protection
    high temperature protection
    short circuit protection
  • 3 times surge power, strong loading capability
  • High strength & durable metal shell
  • Smart Circuit Board

Technical Specs

Voltage Range 230Vac
Frequency Range 50/60 Hz ± 2.5 Hz
Continuous Rating (KW) 1
instantaneous Power (KW) 2
Waveform Pure Sine Wave
Battery Efficiency 81%
Utility Efficiency 93%
Output Voltage 220V ± 5%
Output Frequency 50/60 Hz ± 0.5Hz (State Grid ± 2.5Hz)
Transfer Time 8ms
Battery Voltage 12V
Battery Charge Current 0-20A
Work Pattern Conventional Inverter
Supported Battery Types
  • Gel
  • AGM
  • Lead Acid
  • Calcium
Battery Cable Length 700mm
Charger Cable Length 1.3m
Dimensions (mm) 30.5(w) x 315(l) x 11.4(d)
Weight (kg) 9.4



GENERAL CABLE SIZE RECOMMENDATION
Using the correct cable size is essential for ensuring the optimal performance and longevity of inverters. Incorrect cabling can lead to overheating, voltage drops, and even warranty disputes.
To prevent these issues, we recommended cable sizes based on inverter specifications and load requirements.
UP TO MAXIMUM CABLE LENGTH OF 750MM
INVERTER POWER POSITIVE (RED) CABLE NEGATIVE (BLACK) CABLE FUSE
500w 1x 10mm² (AWG 8) 1x 10mm² (AWG 8) Positive cable Fuse 40 Amp
1000w 1x 25mm² (AWG 4) 1x 25mm² (AWG 4) Positive cable Fuse 100 Amp
1500w 2x 25mm² (AWG 4) 2x 25mm² (AWG 4) Positive cable Fuse 100 Amp
2000w 2x 35mm² (AWG 2) 2x 35mm² (AWG 2) Positive cable Fuse 125 Amp
3000w 2x 35mm² (AWG 2) 2x 35mm² (AWG 2) Positive cable Fuse 125 Amp









DOWNLOADS

Technical Sheet
Instruction Manual
Warranty T’s and C’s

FAQs

Yes. When connected to the main grid supply, the inverter will continuously charge the battery regardless of whether the inverter itself is turned on or off. It also automatically provides over-charge and over-discharge protection to keep your battery safe.
Maintenance depends on your storage conditions and environment:
• Long-term storage: If the battery is sitting idle for a long period, you must charge it every 4 to 6 months.
• Standard conditions: Under normal circumstances, you should perform a full discharge and recharge cycle every 4 to 6 months, allowing a standard charging time of more than 12 hours.
• High-temperature environments: In hot areas, the battery requires more frequent maintenance and must be discharged and recharged every 2 months for more than 12 hours.
To safely power your system using a generator, you must follow these rules:1. Sizing: Ensure your inverter’s capacity is two to three times larger than the capacity of the generator.2. Startup Sequence: Start the generator first. Once it is running steadily, connect its output to the inverter’s input terminal. Turn on the inverter step-by-step according to its operating instructions. Once the inverter has fully started, plug in and switch on your appliances (loads) one by one.

What's in the Box

1x 20A AC Charger Inverter
1x instruction manual
1x Built-in AC Input Power Cord
*with integrated battery connecting cables
