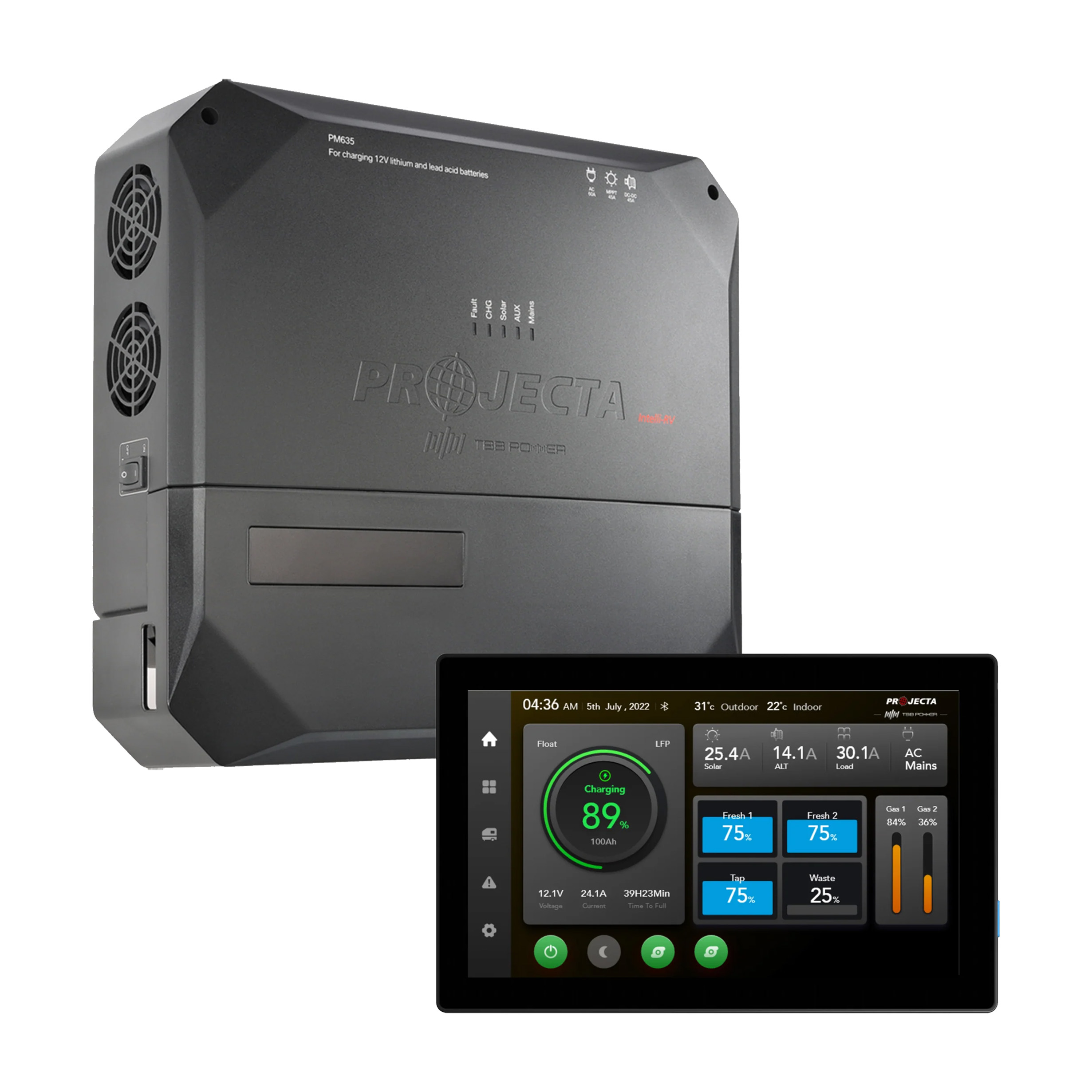

Projecta 12V 60A System, 35A Power Supply, 45A MPPT with 7” Display
Price on Request | EMAIL HERE
• 60A Power Management Transformer
• 45A MPPT Solar charge controller
• 45A DC-DC Charger
• + Intelli-RV 7″ LCD Colour Display with Bluetooth
Ideal for use in caravans, motor homes and RVs.
Year Warranty
▼Additional product information & Specifications available below▼

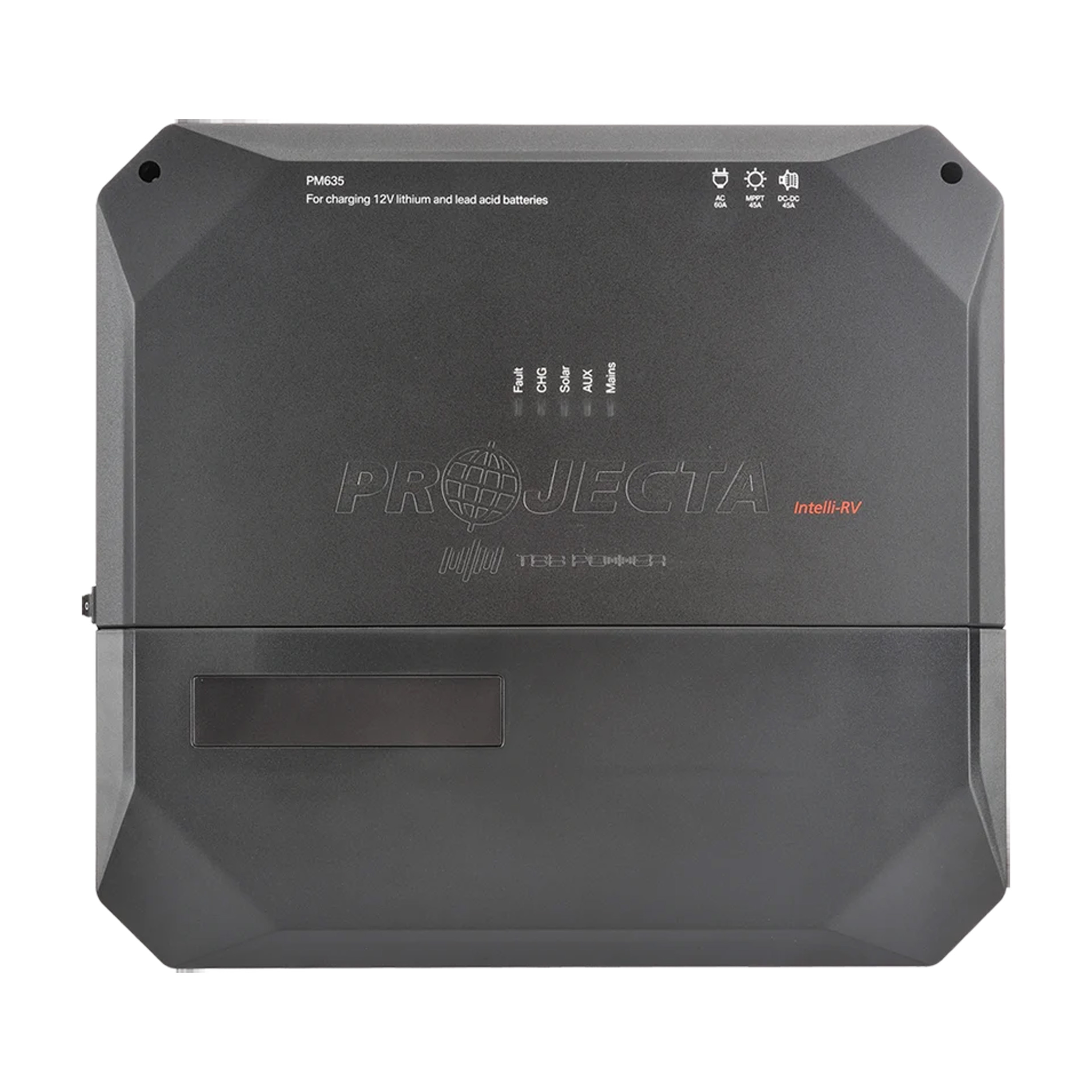

This kit features the PM635 Power Management Transformer paired with a 7” Bluetooth touchscreen for enhanced visibility and control. Combining a 60AC charger, 45MPPT solar charger, and 45A DC-DC charger, it delivers comprehensive power management for caravans and motor homes. The 7” display provides clear, real-time system data and diagnostics, ensuring efficient energy use and easy operation on the go.
60A POWER MANAGEMENT SYSTEM FEATURES
- COMPLETE POWER MANAGEMENT
The PM635 7” kit gives you all the benefits of a powerful charging and monitoring system in a balanced, easy-to-use format suited to most caravans and RVs. - MULTI-SOURCE CHARGING
The system efficiently combines 60AC charger, 45MPPT, and 45A DC-DC charging — automatically managing inputs from your vehicle, solar panels, or mains power. - BRIGHT 7” TOUCHSCREEN DISPLAY
The 7” display provides clear visuals and intuitive control, letting you quickly view battery status, solar performance, and overall system health. - SMARTPHONE CONNECTIVITY
Integrated Bluetooth makes it easy to connect via the Intelli-Grid app, so you can access live system data and adjust settings from your mobile device.
 |
 |
 |
 |
TECHNICAL SPECS
UNIT PM635
| AC MAINS | |
| Nominal input voltage | 230 – 240V 50Hz |
| Vehicle Battery | 12VDC |
| PV | |
| Charger type | MPPT |
| Max charging current (solar) | 45A |
| DC-DC CHARGER | |
| Alternator input voltage range | 12-16VDC |
| Charge current | 45A Continuous |
| Maximum charging efficiency | 96% |
| CHARGER MODE | |
| Charge algorithms | 5 Stages |
| Battery type | AGM/GEL/LFP(LiFePO4)/WET |
| Bulk current | 60A |
| Maximum battery capacity | 1200Ah |
| POWER SUPPLY MODE | |
| Rated output current | 35A (Continuous) |
| IP RATING | IP20 |
PMD-BT7C
| Input | 12VDC |
| Current | 800mA |
| Temperature | -20~+60°C |
| IP Rating | IP20 |
Videos
Intelli-RV GEN II by PROJECTA
FAQs
What's in the box

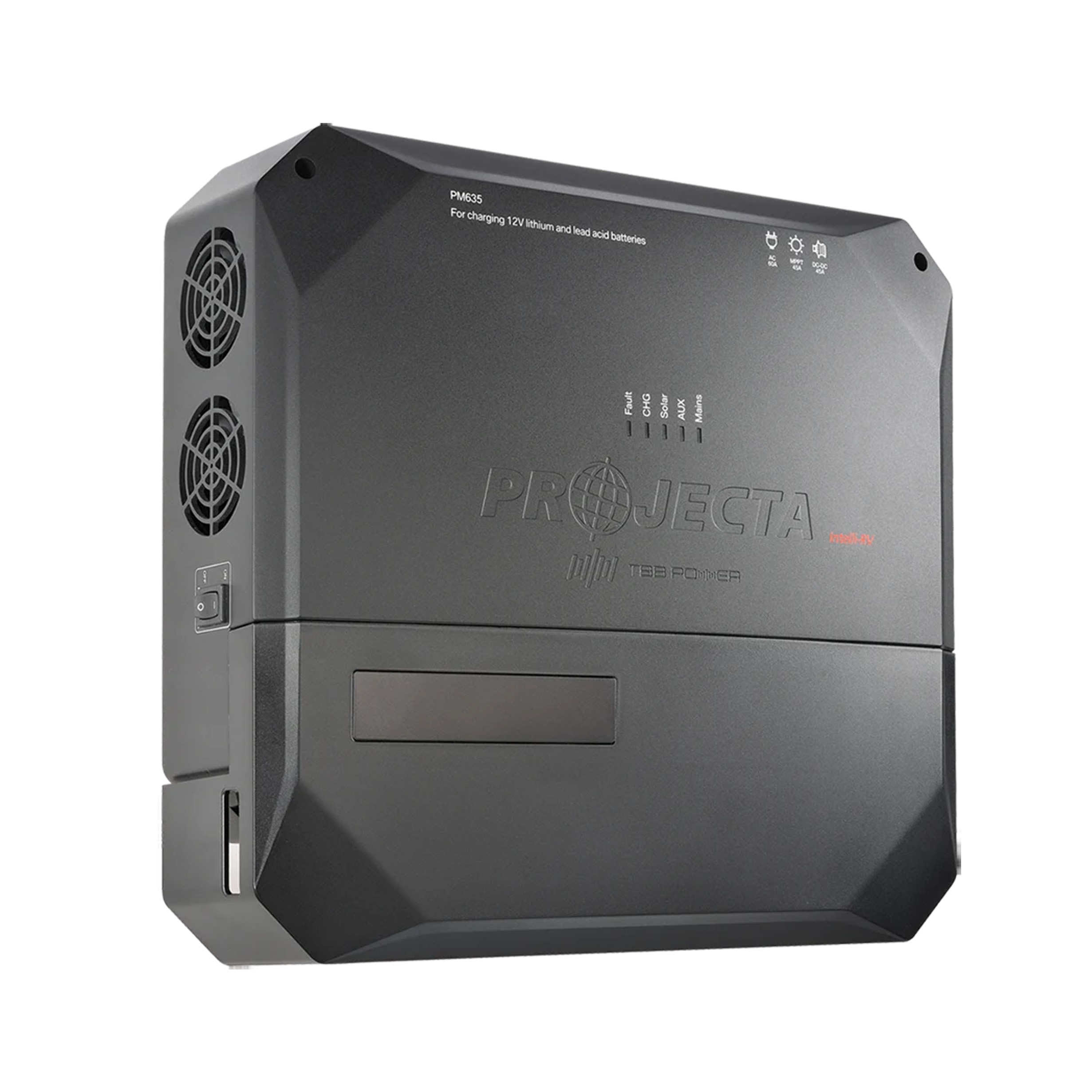

1x Projecta 60A Power Management Transformer

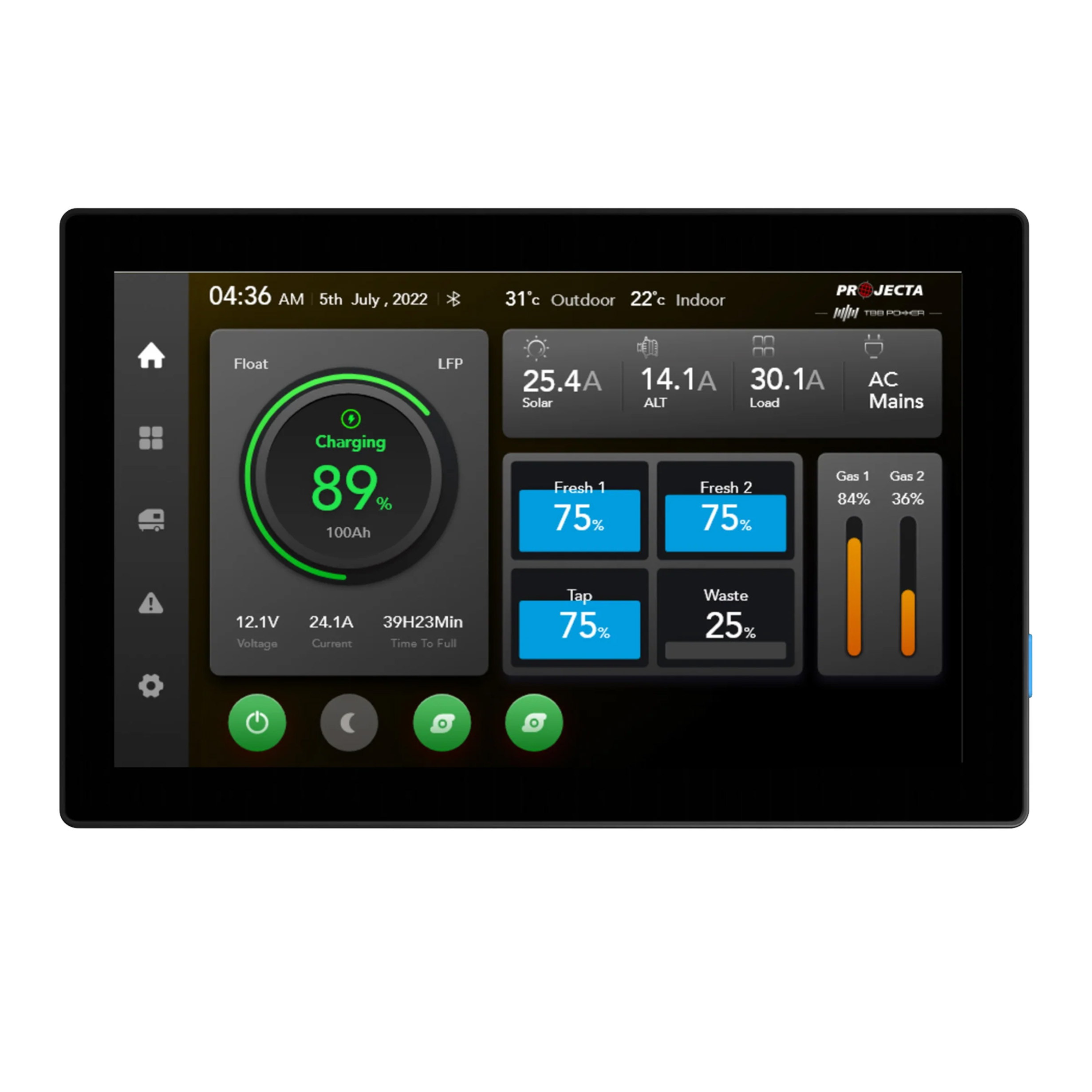

1x Intelli-RV 7″ LCD Colour Display with Bluetooth

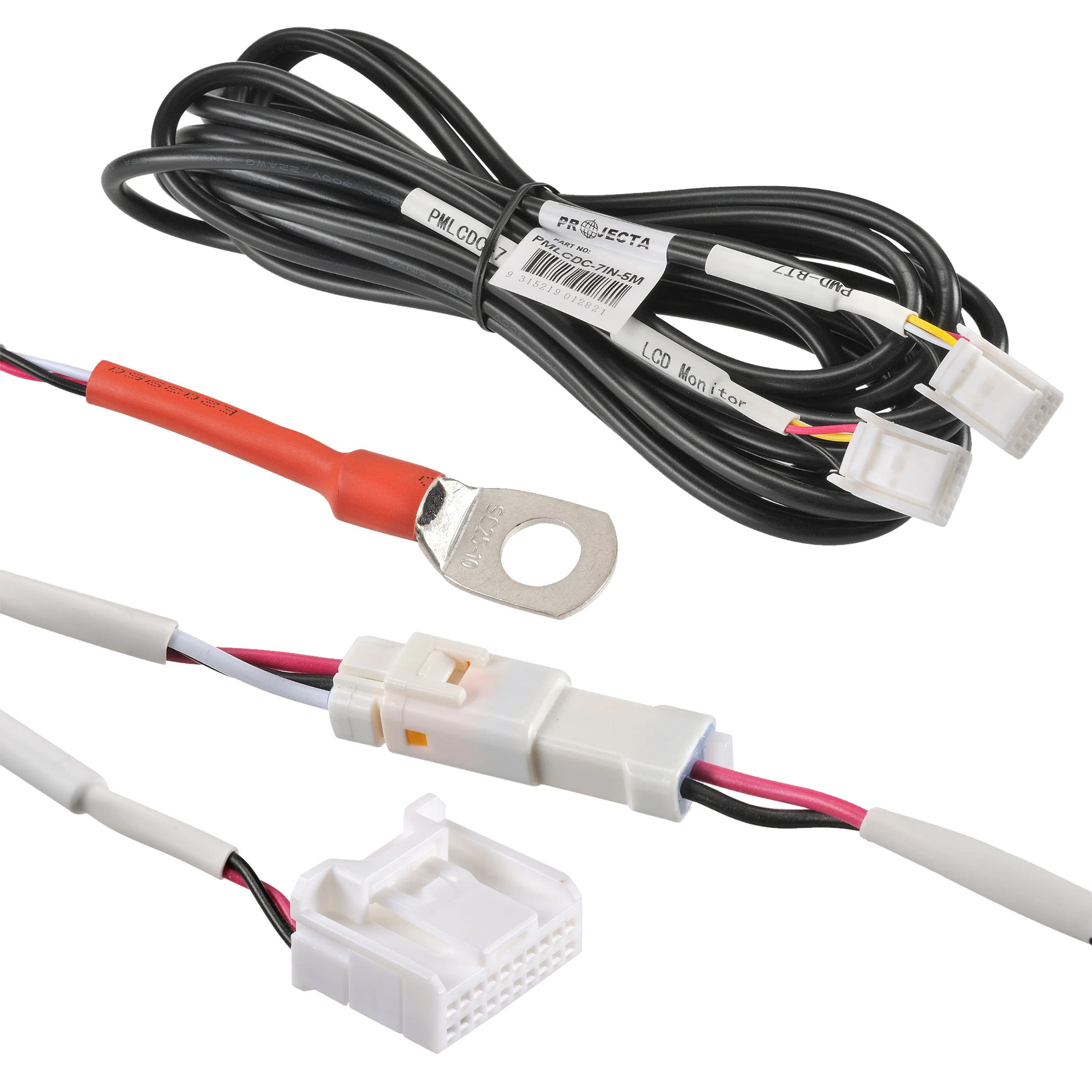

Includes all accessory cables and connections and manuals
