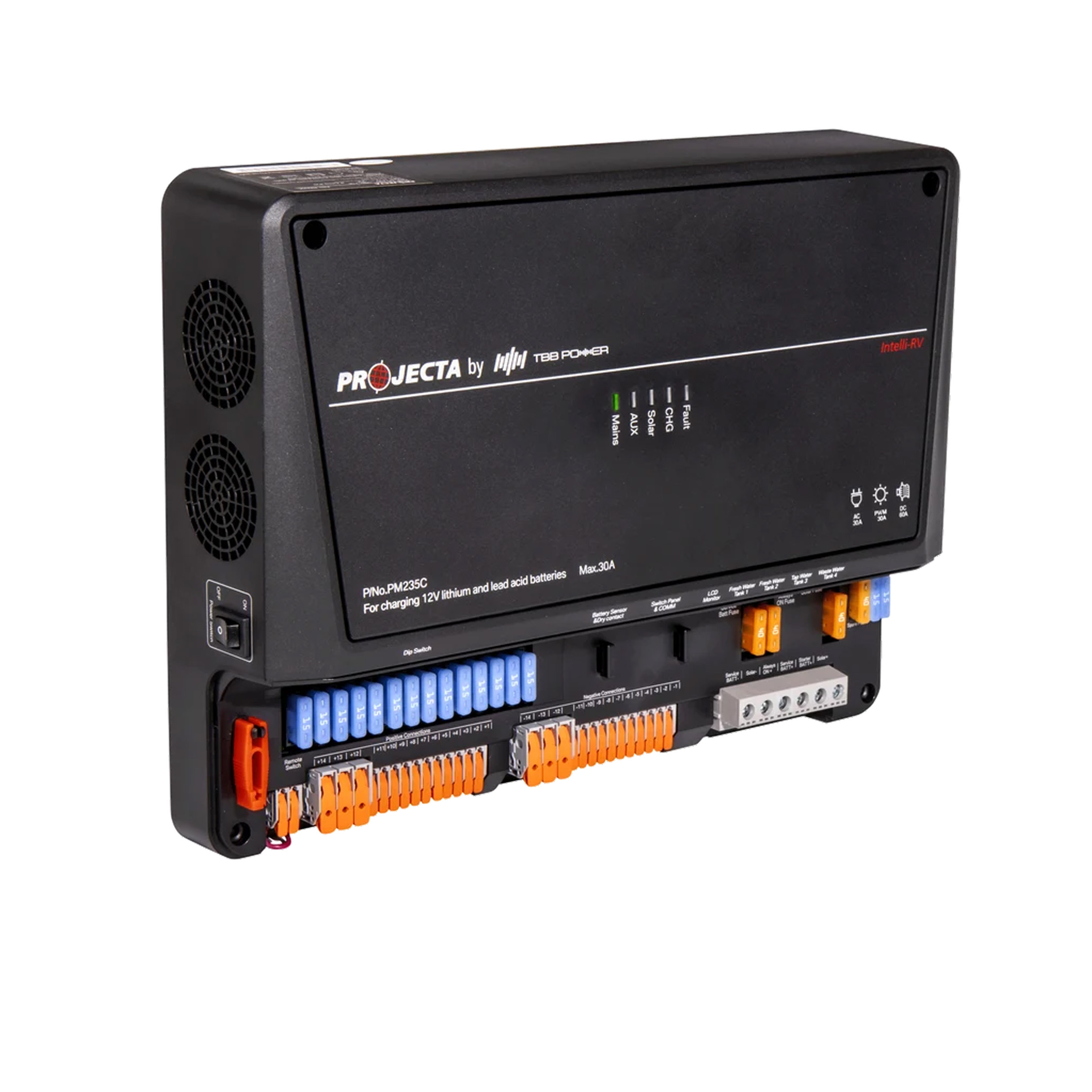

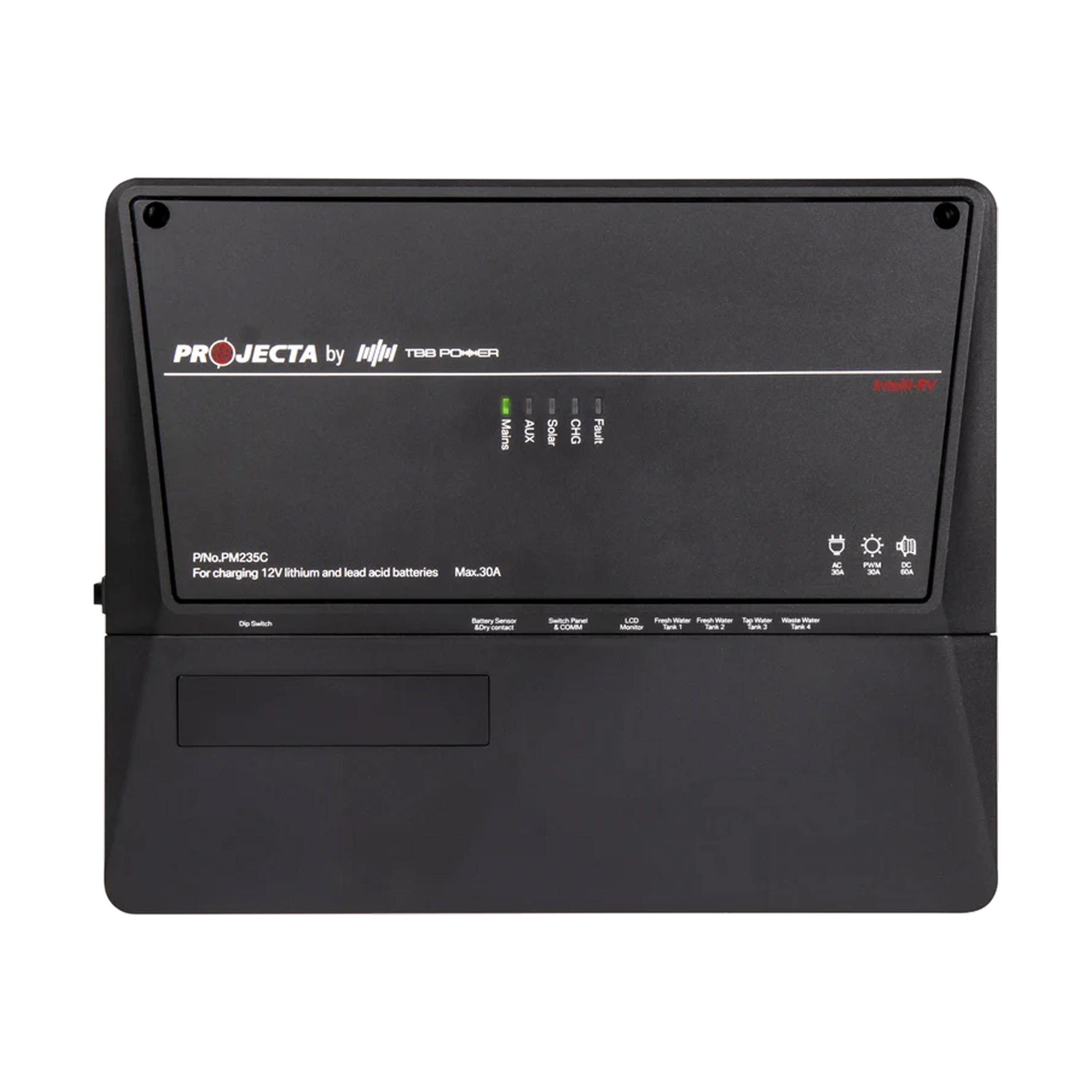

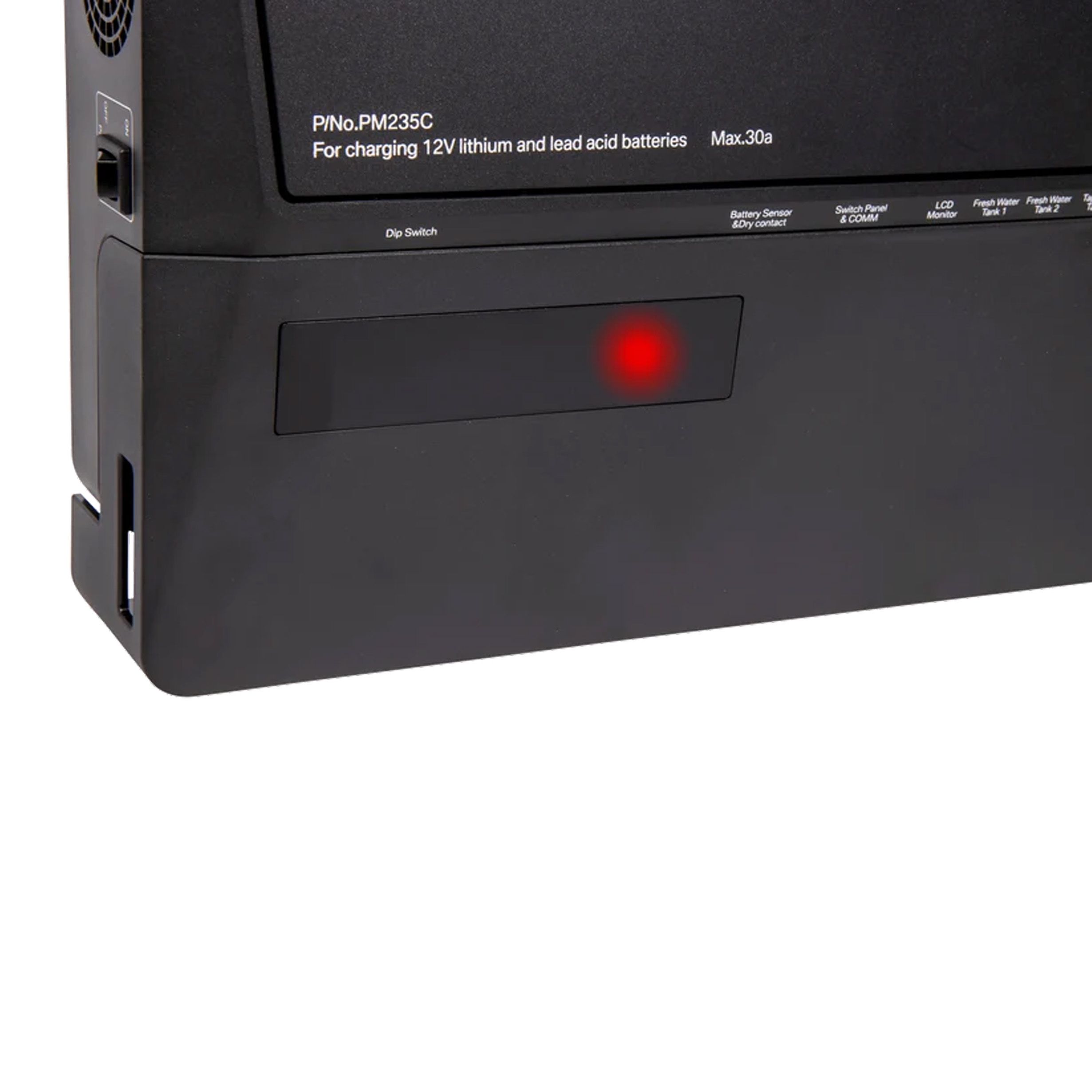

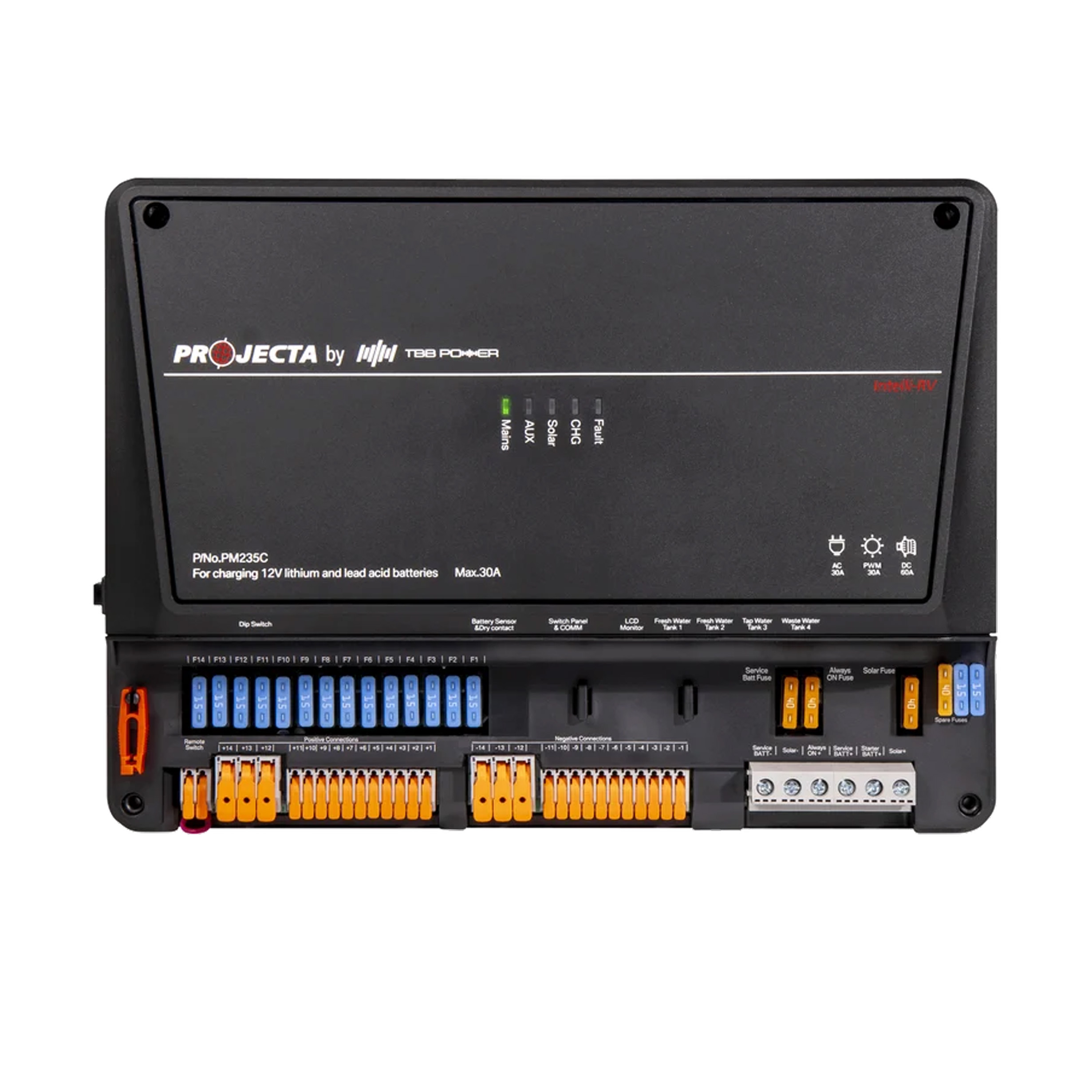

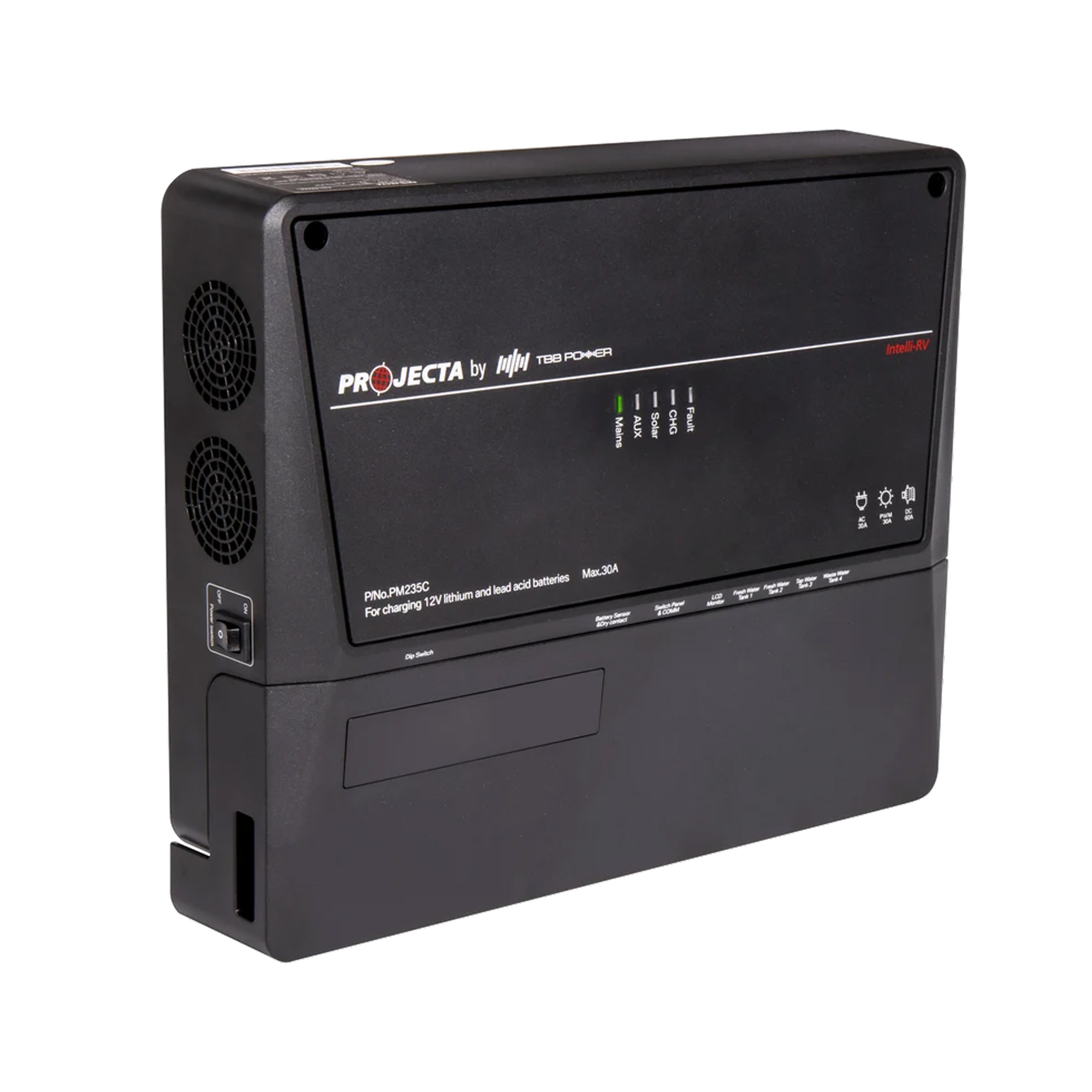

Projecta 12V 30A System, 35A Power Supply, 30A PWM
Price on Request | EMAIL HERE
• 12V 30A Smart battery charger
• 15 built in fused outputs
• Float charge for starter battery
• 30A PWM Solar charge controller
• Built-in: voltage sensing relay / battery switch / shunt
• Up to 4 water tank sensors
Ideal for use in caravans or motor homes
Year Warranty
▼Additional product information & Specifications available below▼
Part of the Projecta Low-Profile Intelli-RV range, serving as a compact power management unit. It centralises wiring with a slim design, making battery power and solar management straightforward.
30A POWER MANAGEMENT TRANSFORMER FEATURES
- LOW-PROFILE DESIGN
Slim, low-profile design with cover to hide messy output cables. - DISPLAYS
Compatible with 4 screen options: 3” LED, 3” with Bluetooth®, 4” touch Screen with Bluetooth®, 7” touch Screen with Bluetooth® - CENTRAL WIRING LOCATION
Makes power in an RV easy by centralising the wiring to one compact, high-quality unit. -
PWM SOLAR CONTROLIntelligent solar charge control utilising a multi-stage charging algorithm to ensure a thorough and comprehensive charge.
- BUILT-IN RF
For wireless switches - SMART BATTERY CHARGER
12V 30A (35A total supply for loads + charge)
Multistage adaptive charging algorithm
Active Power Factor Correction (PFC) charging
Temperature compensation charging - BUILT-IN VOLTAGE SENSING RELAY
For DC charge of up to 12V 60 Amps continuous with 80 Amp for up to 30 minutes. Voltage is dependent of vehicle input (12V systems only)
INTELLI-RV APP
The Intelli-RV phone app is designed to provide comprehensive control and monitoring capabilities for Intelli-Jay users. It allows users to keep track of battery status, monitor power consumption, check water tank levels and manage caravan loads, including lights, pumps, and hot water systems.
 |
 |
TECHNICAL SPECS
| Nominal input voltage | 240V |
| Starter Battery | 12V DC |
| Charger type: PWM | 30A |
| Charger Mode | 5 Stages |
| Bulk Current | 30A |
| Battery type | AGM/GEL/LFP(LiFePO4)/WET |
| Maximum battery capacity | 1200Ah |
| Rated output current | 35A |
| Efficiency | 88% |
| IP Rating | IP20 |
Videos
Intelli-RV GEN II by PROJECTA
DOWNLOADS
FAQs
Yes. The PM235C, PM335C and PM435C support a range of additional Projecta accessories.
• MPPT solar charger controller
• DC-DC 12V charger
• Tyre pressure monitoring system module
• Levelling sensor
• 12V high discharge lithium battery. The PM235C can monitor up to 4 water tank probes. There are 2 probe styles available, so always check which probe is required for your water tank before purchasing.
• MPPT solar charger controller
• DC-DC 12V charger
• Tyre pressure monitoring system module
• Levelling sensor
• 12V high discharge lithium battery. The PM235C can monitor up to 4 water tank probes. There are 2 probe styles available, so always check which probe is required for your water tank before purchasing.
What's in the box
1x Master Power Unit
Accessory cables – Cables used to connect the system components.
1x Instruction Manual
