Projecta 12V 30A System, 35A Power Supply, 30A MPPT with 7” Display
Price on Request | EMAIL HERE
• 30A AC Charger
• 30A MMPT
• + 7” Bluetooth LCD touch screen
Ideal for use in caravans, motor homes and RVs.
Year Warranty
▼Additional product information & Specifications available below▼

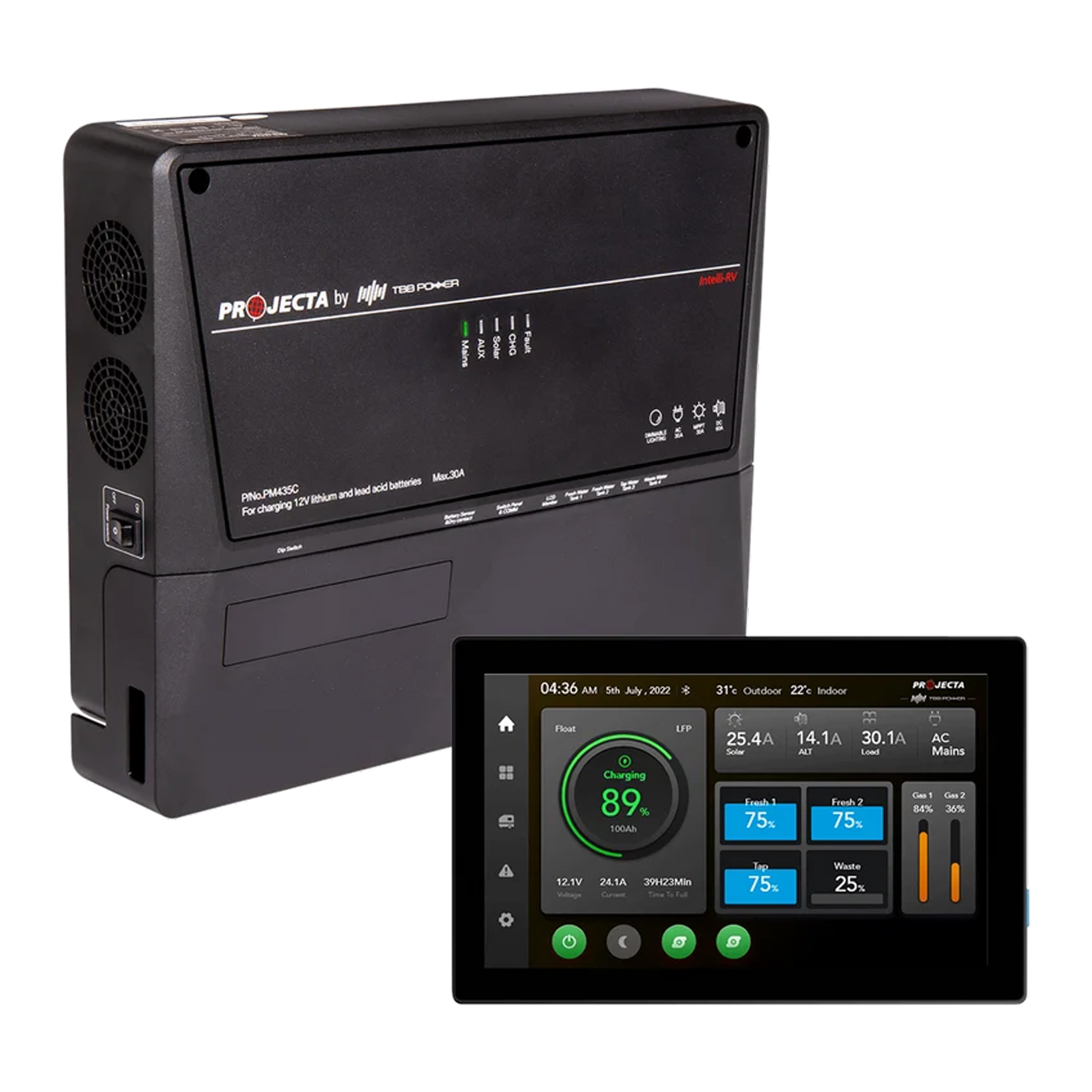

A comprehensive power management system to suit caravans and RVs featuring a 35A power supply and 30A AC/MPPT solar charger. Supplied with an advanced 7” Bluetooth LCD touch screen, lighting controls, gas, TPMS and levelling sensors for an all-round package.
30A POWER MANAGEMENT SYSTEM FEATURES
- POWER SUPPLY
All in one power supply and AC/MPPT Solar charger, with LVD to safely power all your appliances when connected to mains power. - DISPLAY
7” Touchscreen Colour LCD with Bluetooth connectivity ensures clear, interactive data for the user. - LIGHTING CONTROL
Lighting control module that talks with the 7” display & wireless switches. - CHARGING OPTIONS
DC charging via 30A solar (MPPT), 30A AC (mains), or vehicle alternator (100A* VSR). *60A continuous, 100A for 30 minutes
 |
 |
 |
 |
TECHNICAL SPECS
UNIT PM435
| AC MAINS | |
| Nominal input voltage | 240V ±10%VAC 50/60Hz |
| Vehicle Battery | 12VDC |
| PV | |
| Charger type | MPPT |
| Max charging current (solar) | 30A |
| CHARGING RELAY | |
| Hight voltage limit | 16VDC |
| Disconnect Voltage | Lead Acid: 12.8V, LiFePO4: < 2A |
| Relay | 12VDC@60A continuous DC charge, peak current 12VDC@80A (Peak for maximum of 30 minutes) |
| CHARGER MODE | |
| Charge algorithms | 5 Stages |
| Battery type | AGM/GEL/LFP(LiFePO4)/WET |
| Bulk current | 30A |
| Maximum battery capacity | 1200Ah |
| POWER SUPPLY MODE | |
| Rated output current | 35A (Continuous) |
| IP RATING | IP20 |
PMD-BT7C
| Input | 12VDC |
| Current | 800mA |
| Temperature | -20~+60°C |
| IP Rating | IP20 |
Videos
Intelli-RV GEN II by PROJECTA
FAQs
What's in the box
1x Power Unit
Accessory cables – Cables used to connect the system components.
1x 7″ LCD screen
1x Instruction Manual
