PROJECTA Intelli-Grid 48V Inverter/Charger
Price on Request | EMAIL HERE
• 70A AC charging
• 30A DC-DC charging
• 30A MPPT solar charging
• Compact design suitable for floor or wall mounting
• WAGO connectors for quick installation
Ideal for any complex vehicle-based applications and off-grid setups.
Year Warranty
▼Additional product information & Specifications available below▼

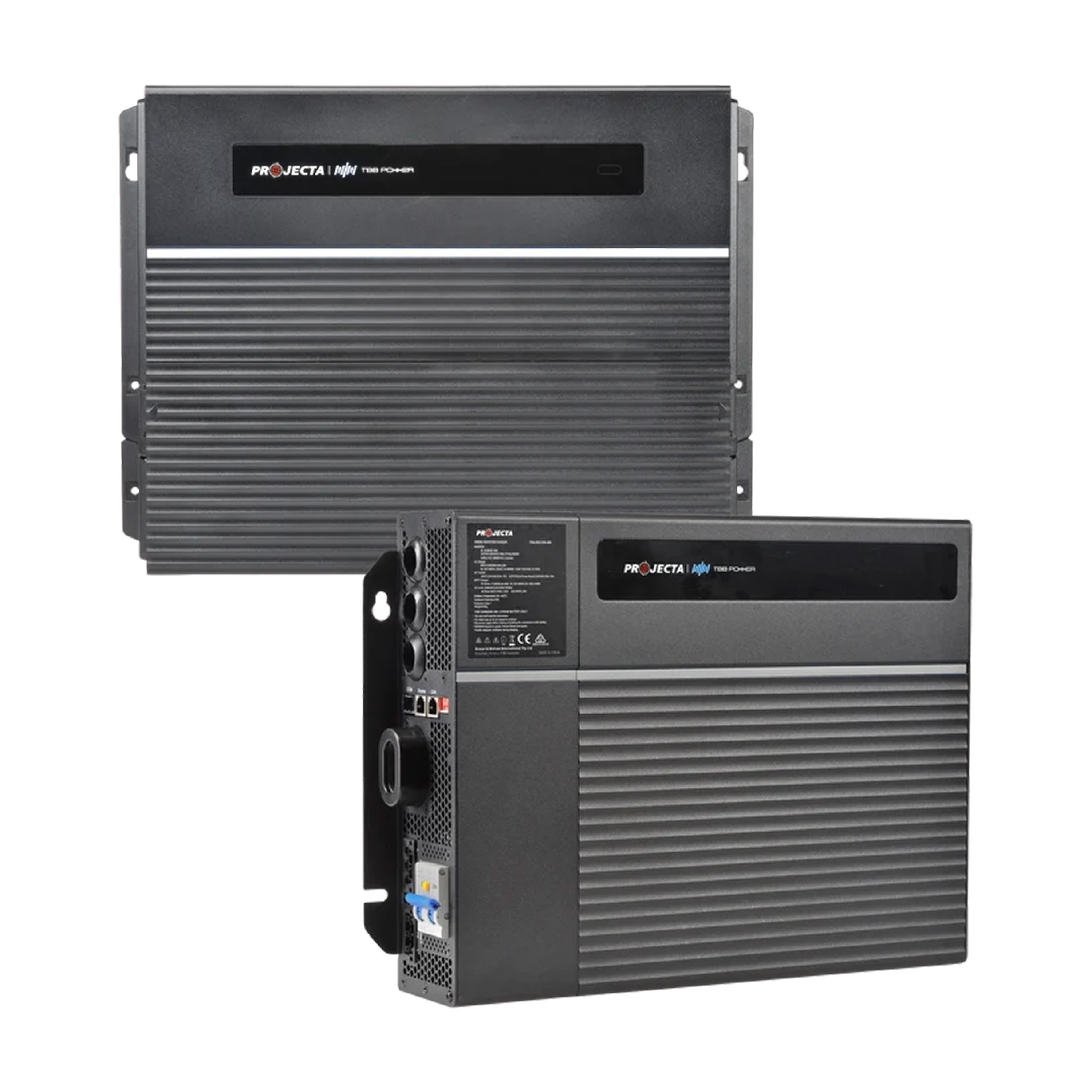

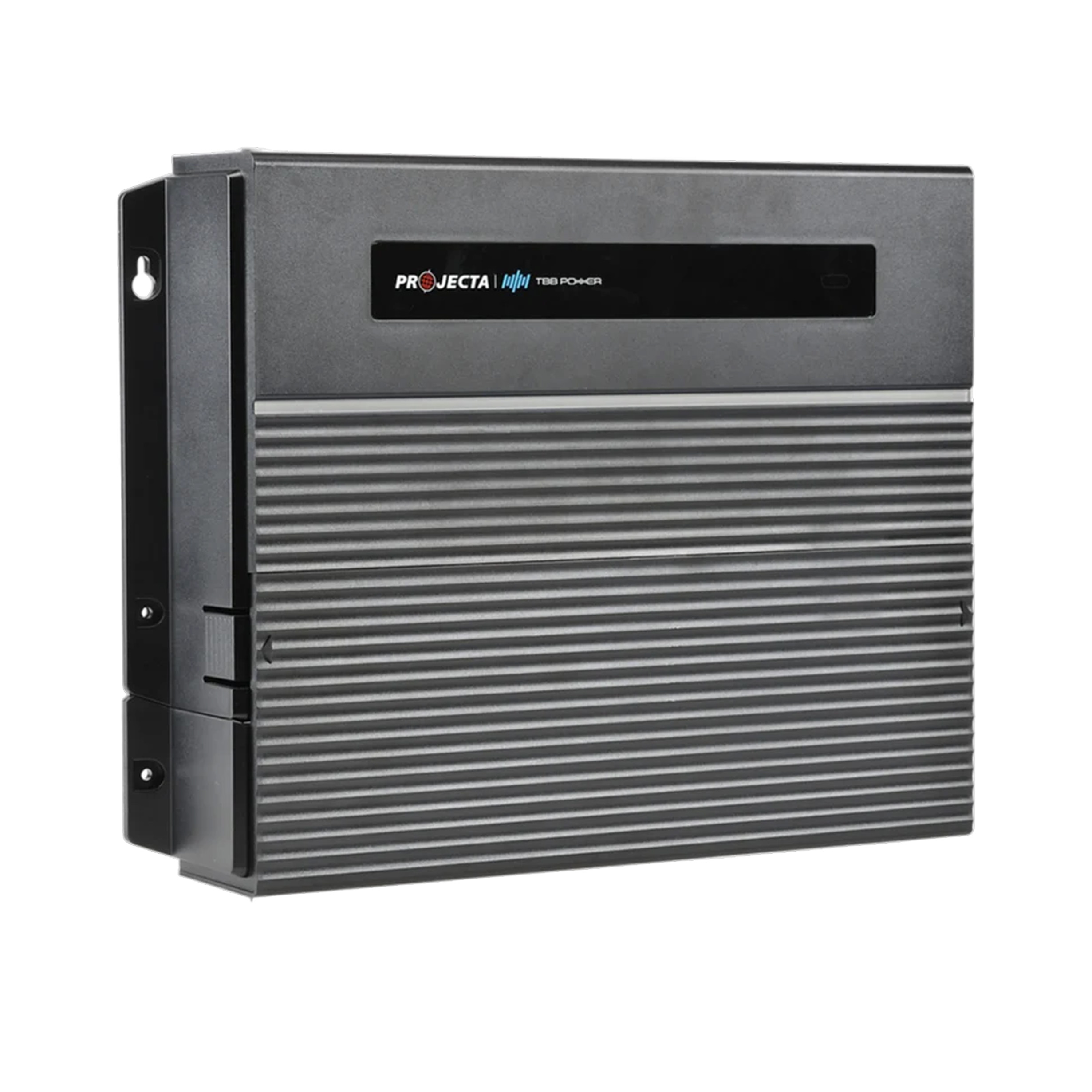

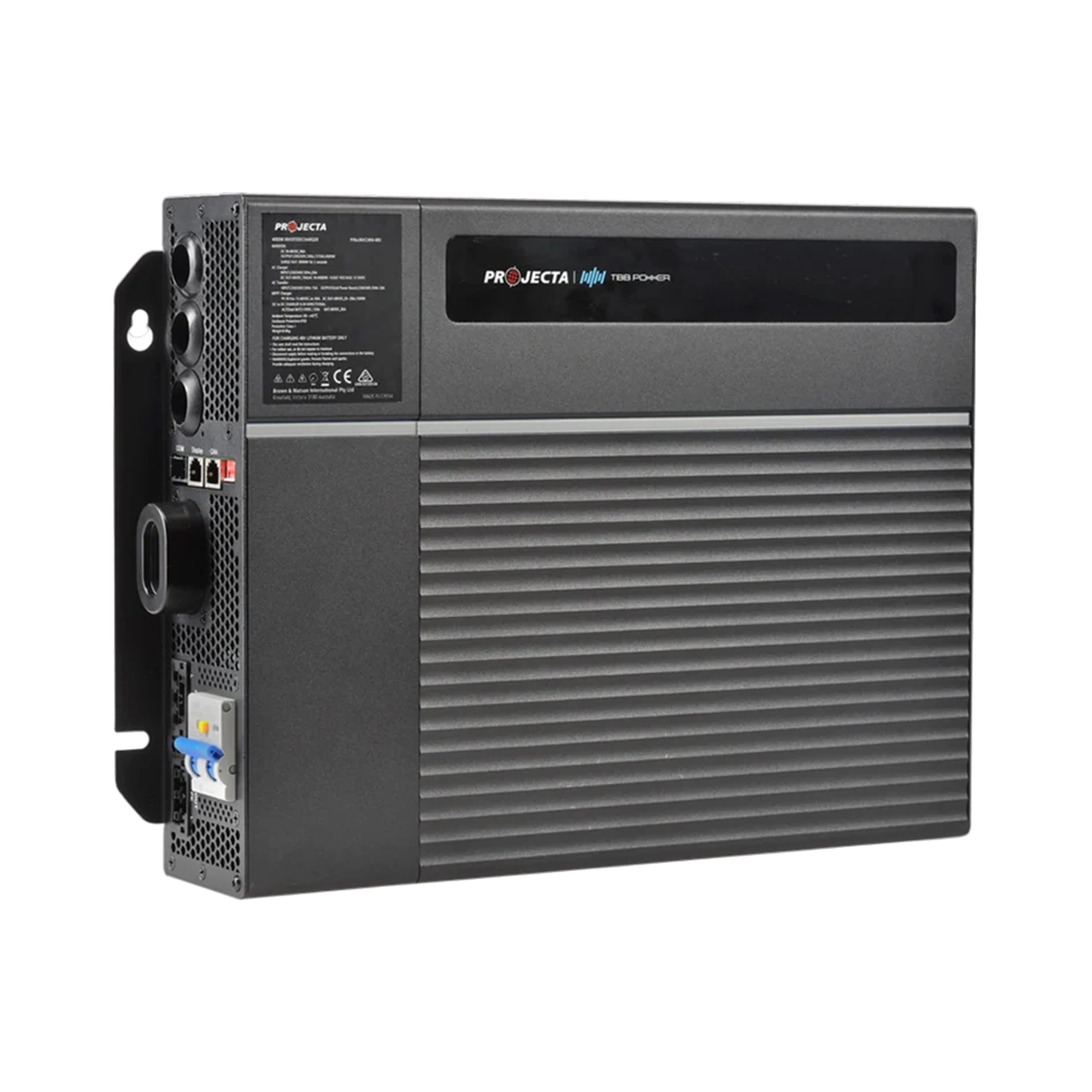

The Projecta IG4-48VK 48V Power Management System combines two advanced components — the All-in-One Inverter/Charger INVCHR4-48V supporting AC, DC-DC, and MPPT solar charging, and the Master Command Unit IGCMD18, which provides 18 outputs with adjustable fuse and current settings. Together, they provide seamless energy conversion, intelligent load control, and flexible installation. Simply select your battery (LB-48HDC) quantity along with a 7″ (IGD-BT7-48) or 10″ (IGD-BT10-48) display to create a fully integrated system tailored to your setup.
Contains part number

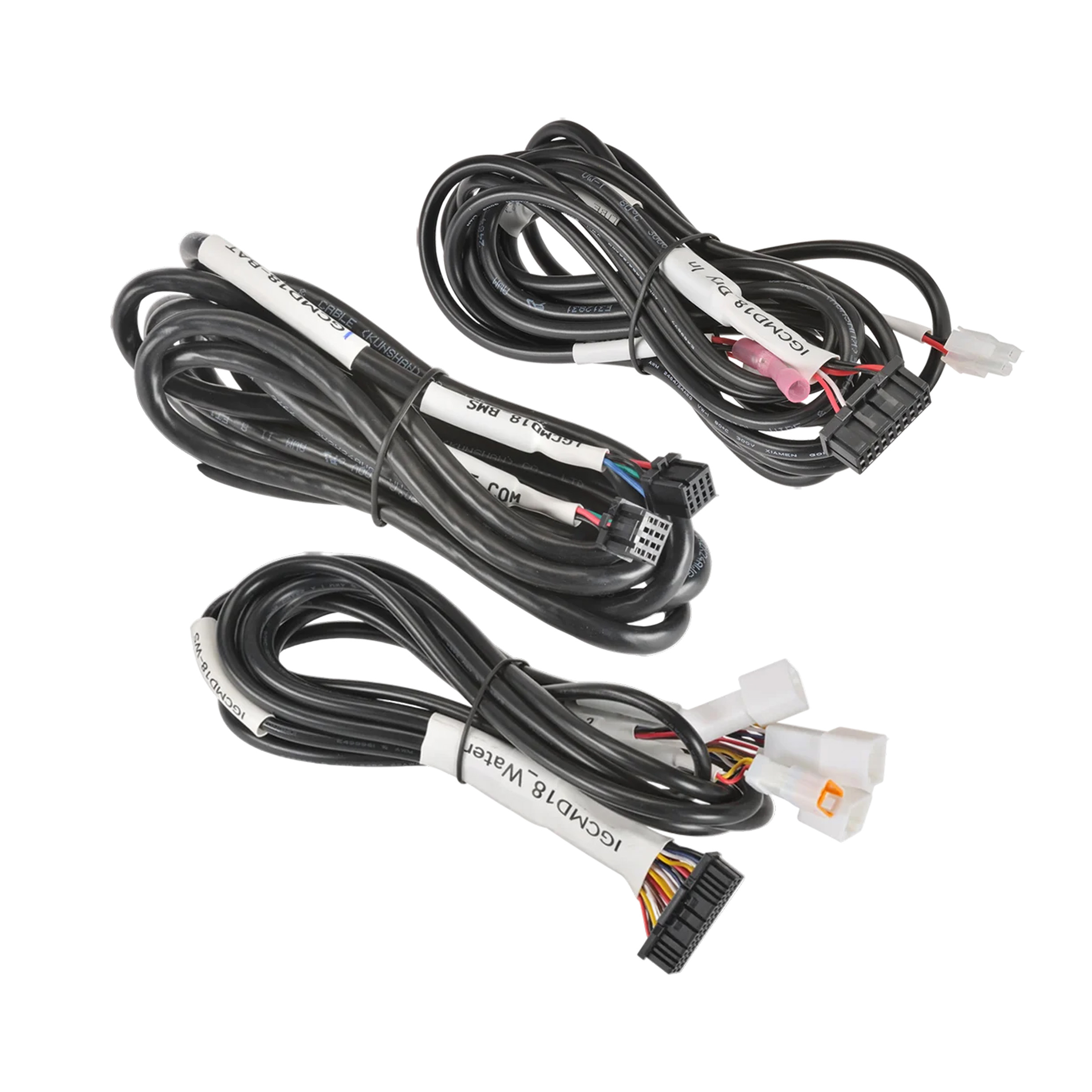

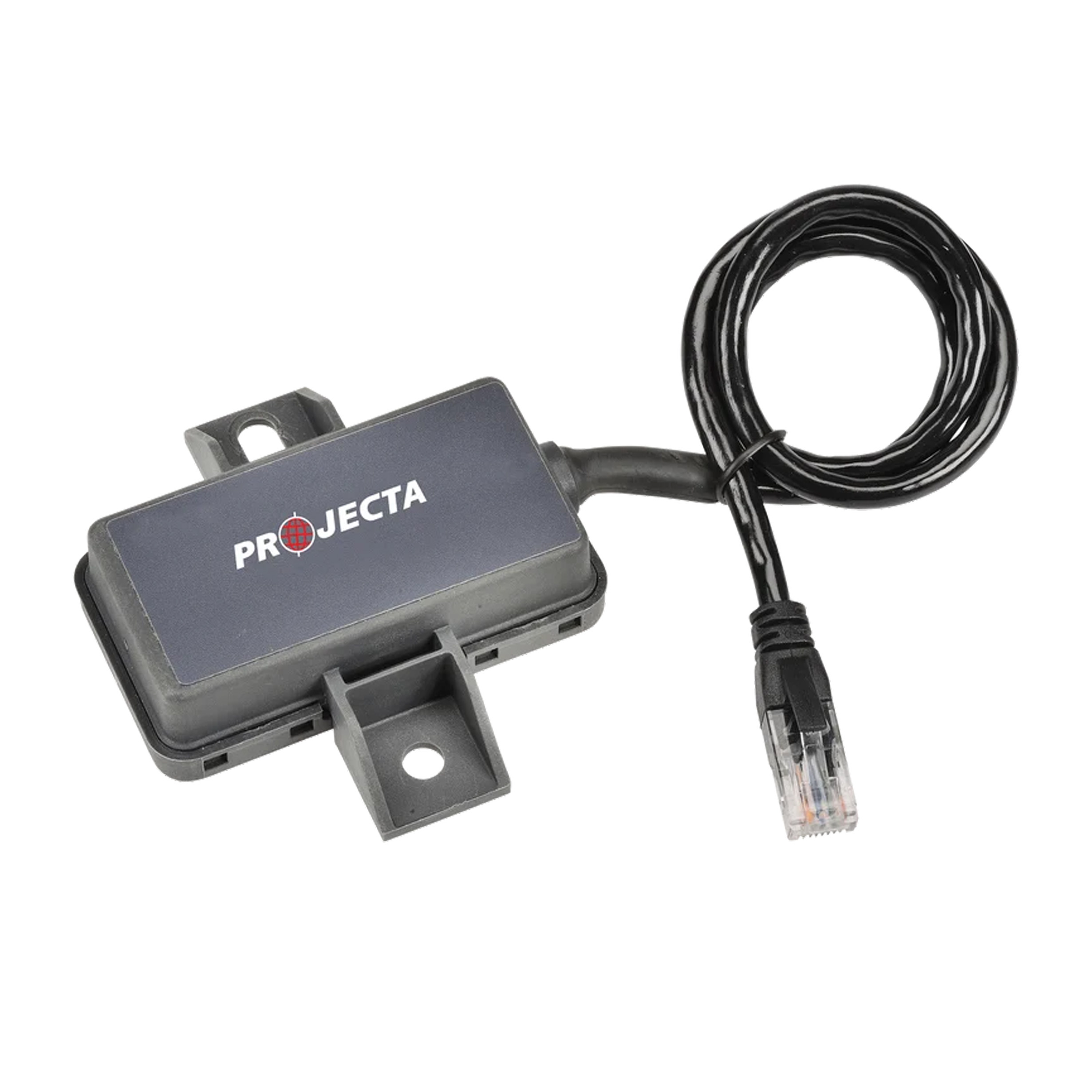

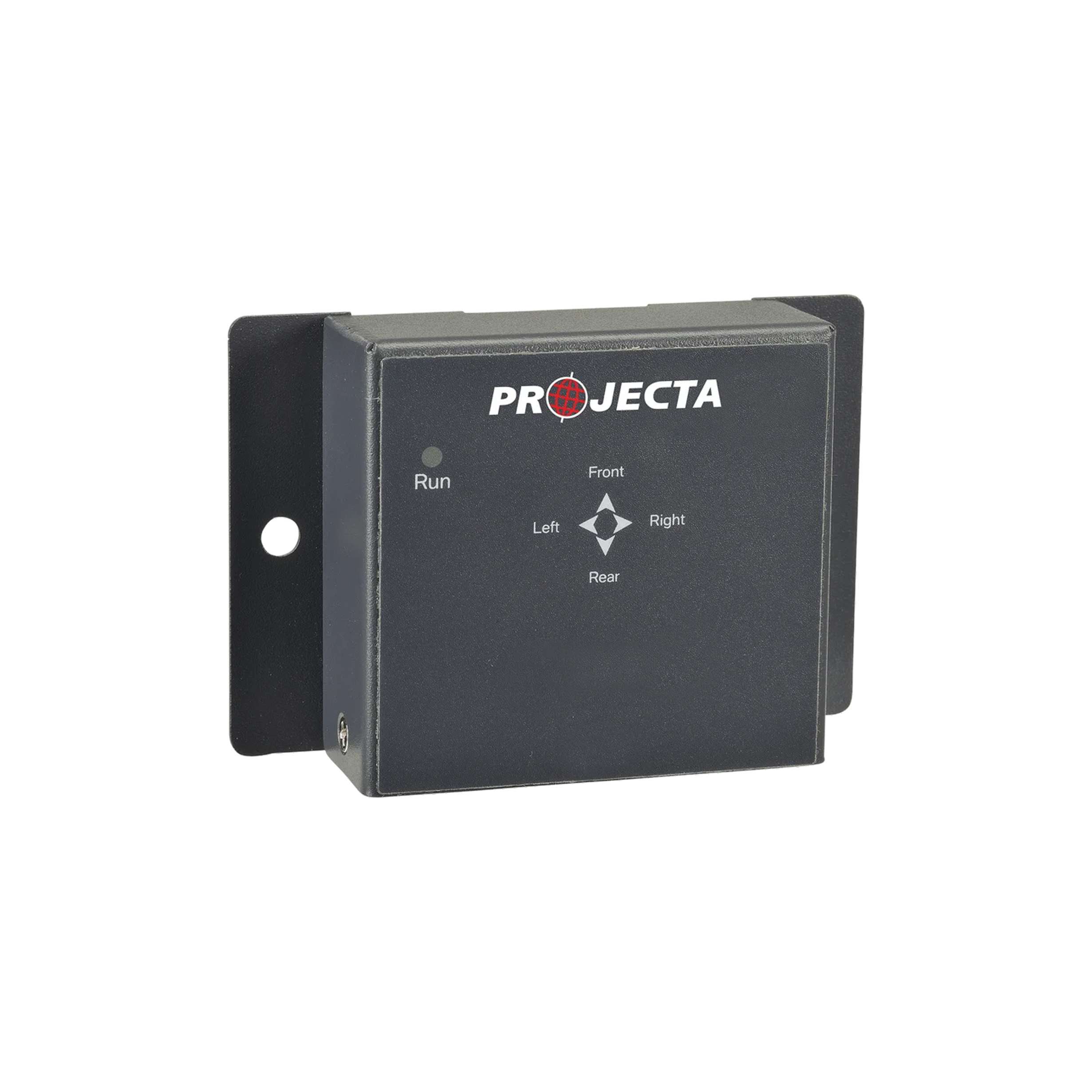

IGCMD18-IN, IGCMD18-SEN, INVCHR4-AUX, IGCMD18-INV, IGCMD18-EXT1M, IGCMD18-BAT, LB-48HDC, IGCMD18-WS, IGCMD18-HNS, IGCMD18-DBT, IGCMD18-1.5M, INVCHR-ACIN, INVCHR-ACOUT, IGCMD18, PMTPMS, PMLVL, INVCHR4-48V
48V POWER MANAGEMENT SYSTEM KIT FEATURES
- WAGO CONNECTORS
For quick installation - ERROR-FREE KEYED DATA CABLES
- COMPACT DESIGN
Suitable for floor or wall mounting -
MORE EFFICIENT & FASTER CHARGINGDelivers improved energy conversion and reduced loss compared to traditional 12V systems, resulting in faster charge times and greater overall performance.
-
COMPACT & LIGHTWEIGHT DESIGNThe 48V configuration allows for smaller gauge cabling and reduced component size, freeing up valuable space while simplifying installation and improving portability.
-
HIGHER POWER CAPACITY & COMPATIBILITYSupports larger inverters—up to 4kW compared to 3kW on 12V systems—enabling operation of high-demand appliances such as air-conditioners, kettles, and toasters simultaneously.
-
FLEXIBLE & PROFESSIONAL SYSTEM INTEGRATIONModular two-unit layout with parallel-ready batteries, configurable load outputs (up to 18), and solar input up to 60Vdc ensures tailored setups for diverse applications—all with a cleaner, neater finish.
 |
 |
TECHNICAL SPECS

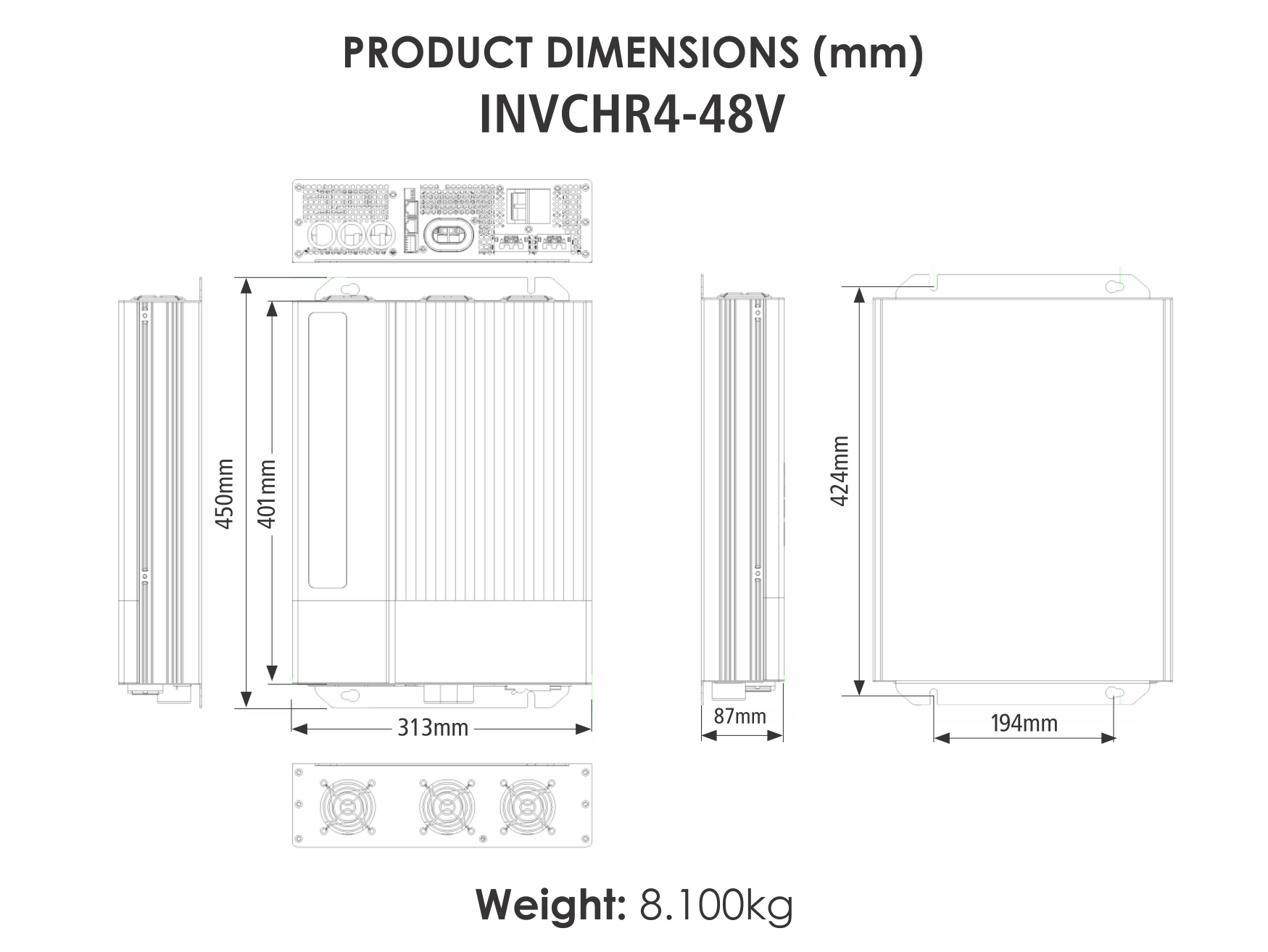

| INVCHR4-48V | |
| Battery Voltage | 48V |
| Input Voltage Range | 40~57V |
| Peak Power (2s) | 8.0kW |
| Operating Temp | -30°C~65°C Derating when > 30°C |
| IP Rating | IP20 |
| Bi-directional DC-DC | |
| 12V Input / Output Current | 120A |
| 48V Input / Output Current | 30A |
| MPPT | |
| Max PV Short Circuit Current | 60A |
| Max Charging Current | 30A |
| MPPT efficiency | >99.5% |

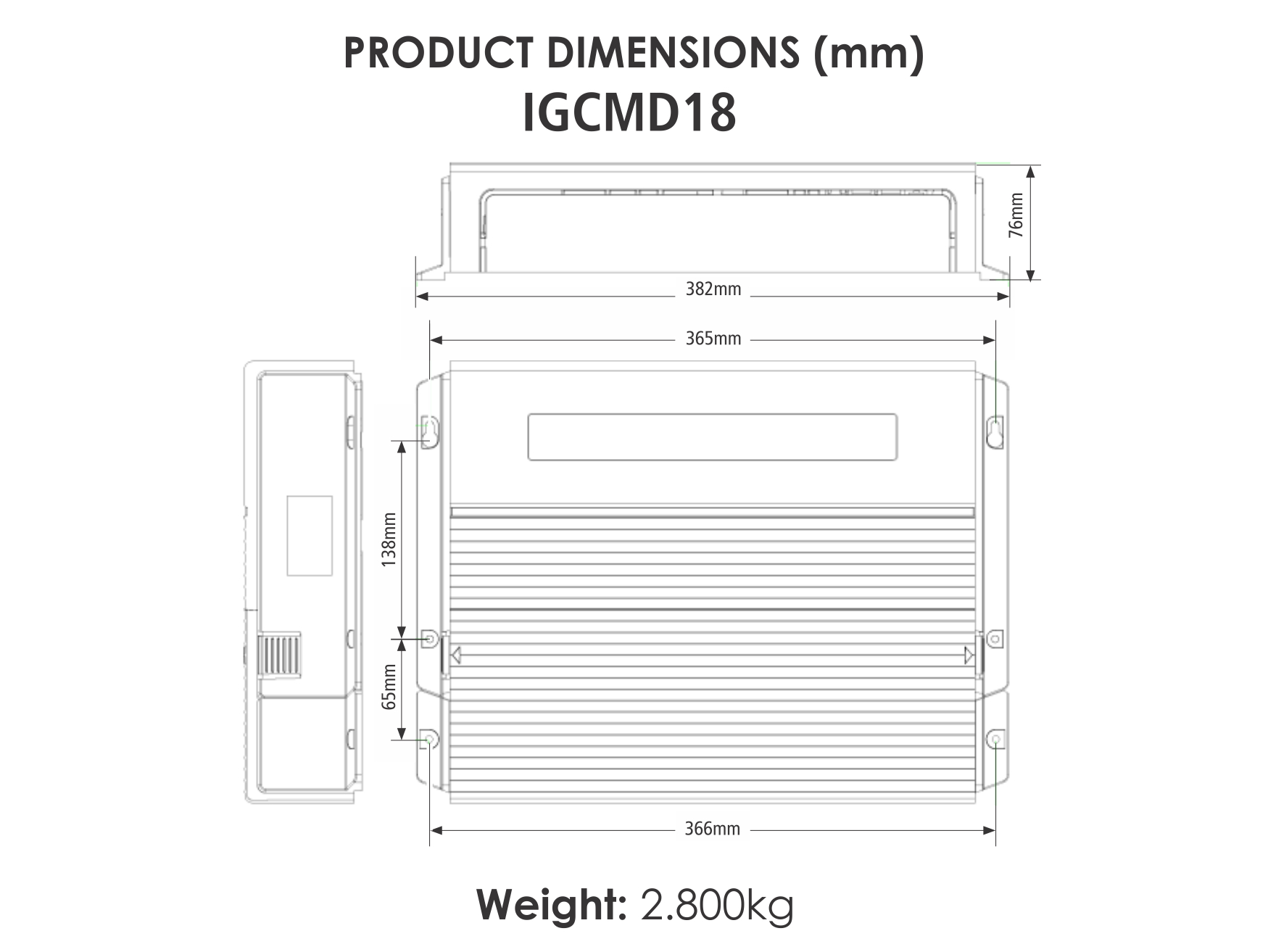

| IGCMD18 | |
| Input Rated Voltage | 12VDC |
| Input Rated Current | 100A |
| Output | 18 Channels |
| IP Rating | IP2X |
| Operating Temp | -20°C~60°C |
Videos
Projecta 48V System
DOWNLOADS
FAQs
What is the Projecta IG4-48VK
The IG4-48VK is a 48V power management system designed to manage and supply power to your electrical equipment off-grid.
The INVCHR4-48V combines inverter and battery-charging functions to help provide reliable power for your system.
What's in the box
1x Charger/inverter unit
1x 18 Output Master Control Module Unit
All cables and connections
1x Instruction Manual
