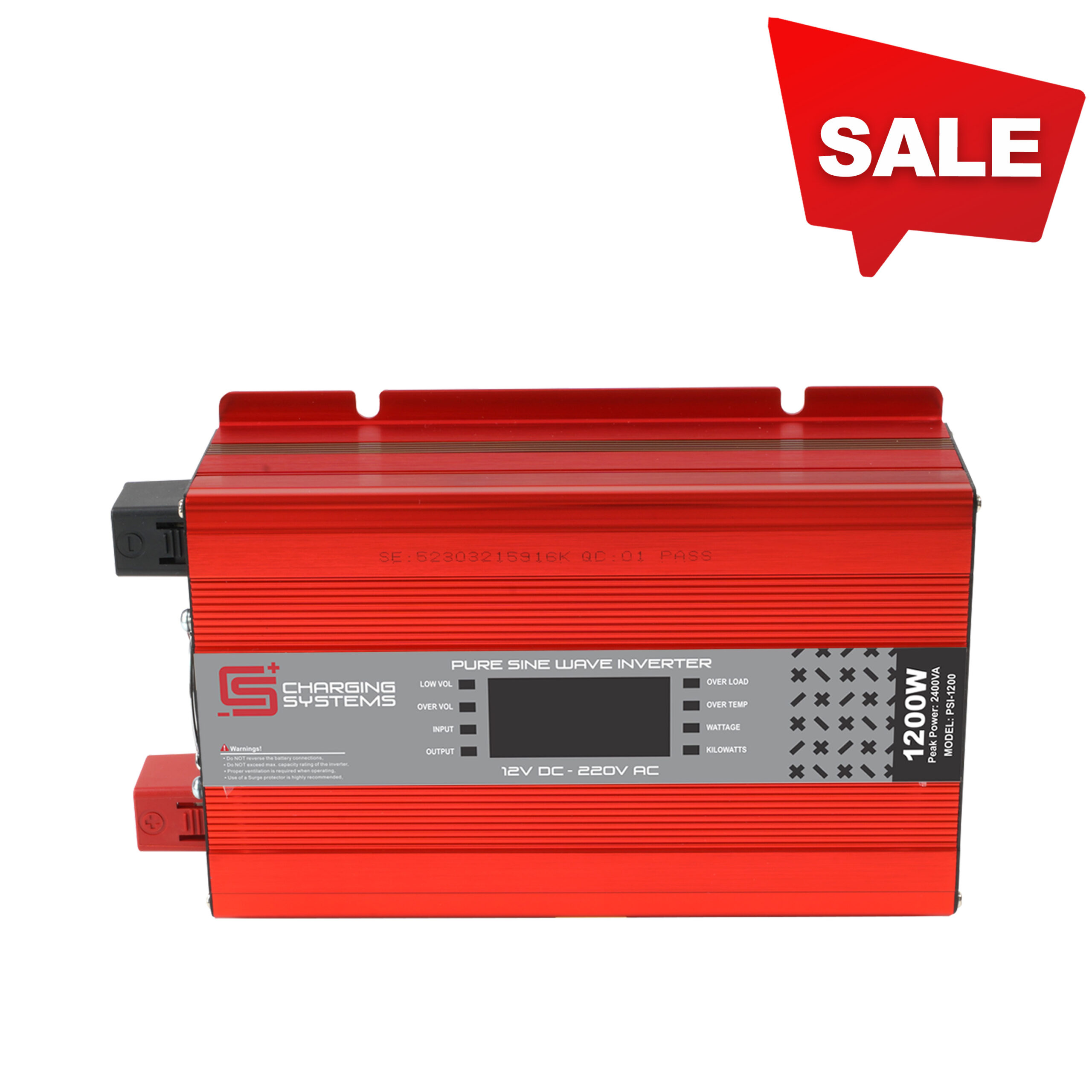

Pure Sine Wave Inverter 12V 1200W

SKU: PSI-1200 Categories: ,

R3,434.78(Excl.Vat)

In Stock   |   Ships in one business day   |   FREE DELIVERY

• Multiple safe protections
• peak power @ 2400VA (1s)
• Rated power 1200W
•  of centralized CPU technology SMD

Inverter guide for home/mobile setups — view here.

Ideal for use in both home and mobile applications such as off-road vehicles and caravans.

5 Year Warranty
Year Warranty
▼Additional product information & Specifications available below▼




Range Discount
0 - 4 0%
5 - 9 3%
10 - 20 6%

This Power Inverter with advanced technology is essential in businesses and homes. Our PSI-1200 provides a reliable transformation of DC power from a car battery into AC Power that can be used to run lights, computers, printers and other essential appliances. Lightweight, compact and diverse to ensure the widest use of applications.

*Includes UK/SA adaptor and UK plug

1200W INVERTER FEATURES

  • High conversion efficiency, smart soft start function
  • Input and output are completely independent
  • Smart, light, and portable, designed for home use
  • Universal socket, suitable for all kinds of plugs
  • Pure sine waveform output
  • Applicable for resistive/sensitive loads
  • High-precision voltage stability technology
  • Aerospace-grade silence technology
  • 100% pure sine wave output waveform: designed for sensitive loads (resistive load)
  • True sine wave output (Total Harmonic Distortion (THD) < 3%)





Technical Specs

Peak Power 2400VA (1S)
Rated Power 1200W
Output voltage 220V/230 ±5V
Output frequency 50Hz
Standby current <0.9A
Rate Voltage 12V
Maximum Input Current 120A
Input Voltage Range 10.5V – 15V
Under Voltage Protection 9.5±0.5V
Over Voltage Protection 15±0.5V
Over Voltage Recovery 14.8±0.5V
Dimensions (mm) 410x240x150mm
Weight 4kg (4000g)

* full specifications under the downloads tab.



GENERAL CABLE SIZE RECOMMENDATION
Using the correct cable size is essential for ensuring the optimal performance and longevity of inverters. Incorrect cabling can lead to overheating, voltage drops, and even warranty disputes.
To prevent these issues, we recommended cable sizes based on inverter specifications and load requirements.
UP TO MAXIMUM CABLE LENGTH OF 750MM
INVERTER POWER POSITIVE (RED) CABLE NEGATIVE (BLACK) CABLE FUSE
500w 1x 10mm² (AWG 8) 1x 10mm² (AWG 8) Positive cable Fuse 40 Amp
1000w 1x 25mm² (AWG 4) 1x 25mm² (AWG 4) Positive cable Fuse 100 Amp
1500w 2x 25mm² (AWG 4) 2x 25mm² (AWG 4) Positive cable Fuse 100 Amp
2000w 2x 35mm² (AWG 2) 2x 35mm² (AWG 2) Positive cable Fuse 125 Amp
3000w 2x 35mm² (AWG 2) 2x 35mm² (AWG 2) Positive cable Fuse 125 Amp



DOWNLOADS

Instruction Manual
Spec Sheet
Warranty T’s and C’s

FAQs

Motorized devices (electro-motion tools, asynchronous motors, compressors, and pumps) require a massive surge of energy just to kick-start. While linear, resistive appliances (like electric stoves, rice cookers, and LCD TVs) can run smoothly at full load right away, motors and pumps require 2 to 6 times their normal operating current to start up. If your inverter cannot handle this initial startup spike, its built-in overload protection will trip.

What's in the Box

1x 1200w Inverter
1x instruction manual
2x Battery Cables (1x Red, 1x Black)
2x Terminal Covers (1x Red, 1x Black)
1x UK/SA adaptor
1x UK plug
