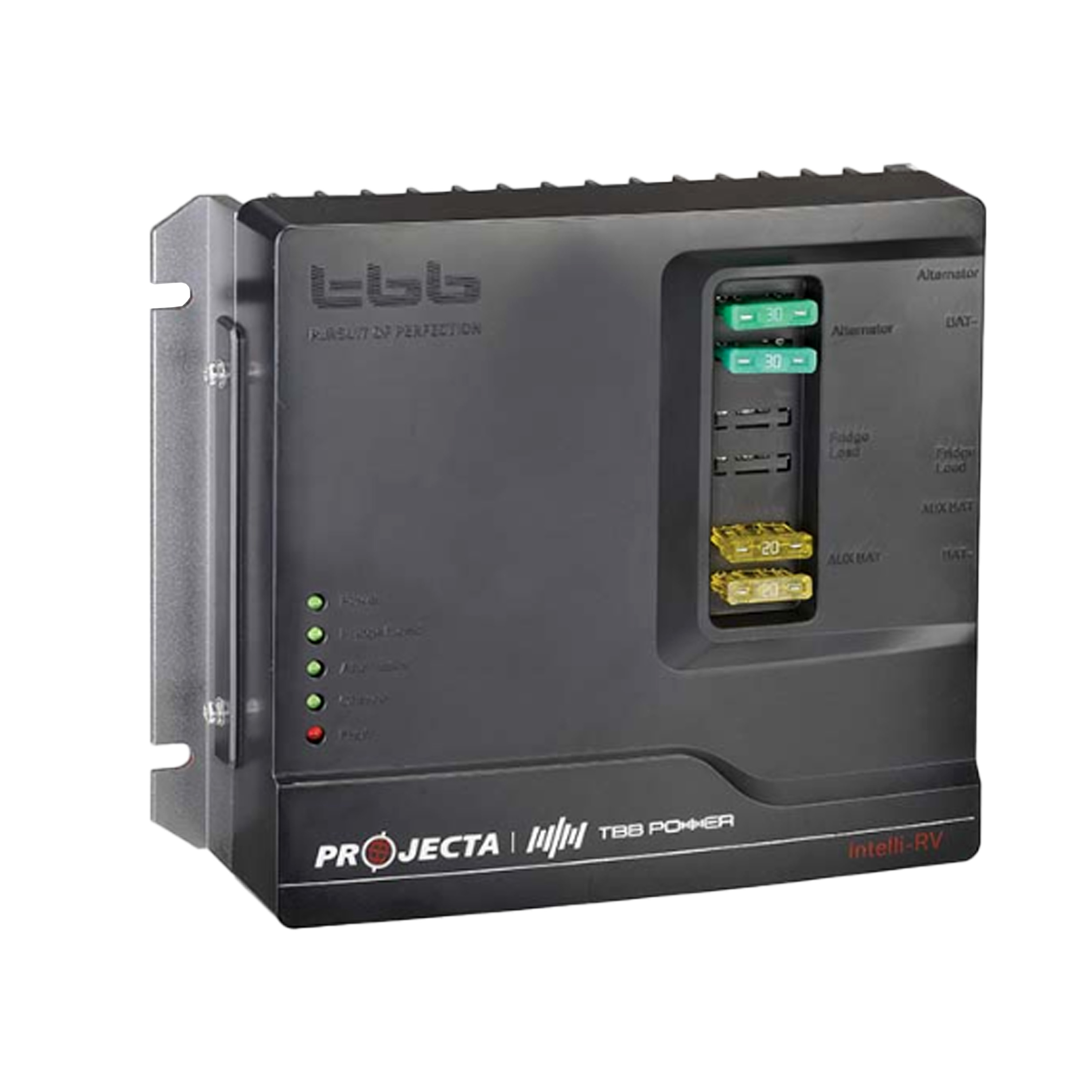

PROJECTA 30A 12V DC-DC Charger (20A Bypass)
R7,723.08(Excl.Vat)
Smart 30Amp DC to DC charger specifically designed for Intelli-RV and Intelli-Grid where a 3-way fridge or compressor fridge are used.
In stock
| Range | Discount |
|---|---|
| 0 - 4 | 0% |
| 5 - 9 | 3% |
| 10 - 20 | 6% |
Smart 30A DC to DC charger specifically designed for Intelli-RV and Intelli-Grid where a 3-way compressor fridge is used. This product allows a 20A bypass to be wired to run a fridge which can draw up to 20A. While running the fridge directly it also provides a 30A charge to ensure the auxiliary battery is fully charged on arrival.
Technical Specs
| CHARGE TYPE | 5 Stage | |
| ALTERNATOR INPUT VOLTAGE | 12~16V | |
| OUTPUT | 12V, <30A | |
| BYPASS RELAY OUTPUT | 12V, 20A | |
| BATTERIES SUPPORTED | Wet, Gel, AGM, Lithium | |
| ALTERNATOR TYPE | Smart & Conventional | |
| STORAGE TEMPERATURE | -40~70°C | |
| OPERATING TEMPERATURE | -40~70°C | |
| TEMPERATURE COMPENSATION | -3mV/°C/Cell | |
| IP RATING | IP20 | |
| COOLING | Convection | |
| SMART ALTERNATOR | Turn on 12.2V Turn off 11.6V |
|
| CONVENTIONAL | Turn on 13.2V Turn off 12.8V |
|
| APPROVALS | EMC | |
| WEIGHT | 1.0Kg | |
| DIMENSIONS (mm) | 181x148x52 |
Features
CHARGING TYPE
30A DC to DC charging used to compensate for any voltage drop between the alternator and the tow vehicle, optimising charge to the battery.
RELAY
When the engine is running, a relay engages directing alternator power to the 3-way fridge allowing full charge current to the battery.
ADAPTIVE INPUT & OUTPUT
Adaptive input adapts to smaller cables or excessive runs without overloading wiring.
MULTI-CHEMISTRY
Adjustable chemistry designed for use on all different types of batteries including Gel, AGM, Wet and Lithium.
IGNITION OVERRIDE & TEMPERATURE COMPENSATION
Can act as an ignition override for smart alternators and help to eliminate effects of a change in temperature.
